Brief introduction
The DZM series comprises vertical straight-line edging machines designed for flat-edge processing of glass sheets and mirrors. Processing employs a sequential arrangement of cup diamond wheels and polishing wheels.
Sheets are manually loaded onto the motorized input conveyor, transporting them into the edging unit.
Throughout processing, sheets rest on conveyor rollers angled at approximately 6 degrees from vertical.
The conveyor system is motorized; operator interaction during standard operation is restricted to sheet loading and unloading.
Each machine operates with one primary operator, optionally assisted during loading/unloading. For large/heavy sheets (exceeding 30kg), appropriate lifting equipment is mandatory.
Product Introduction

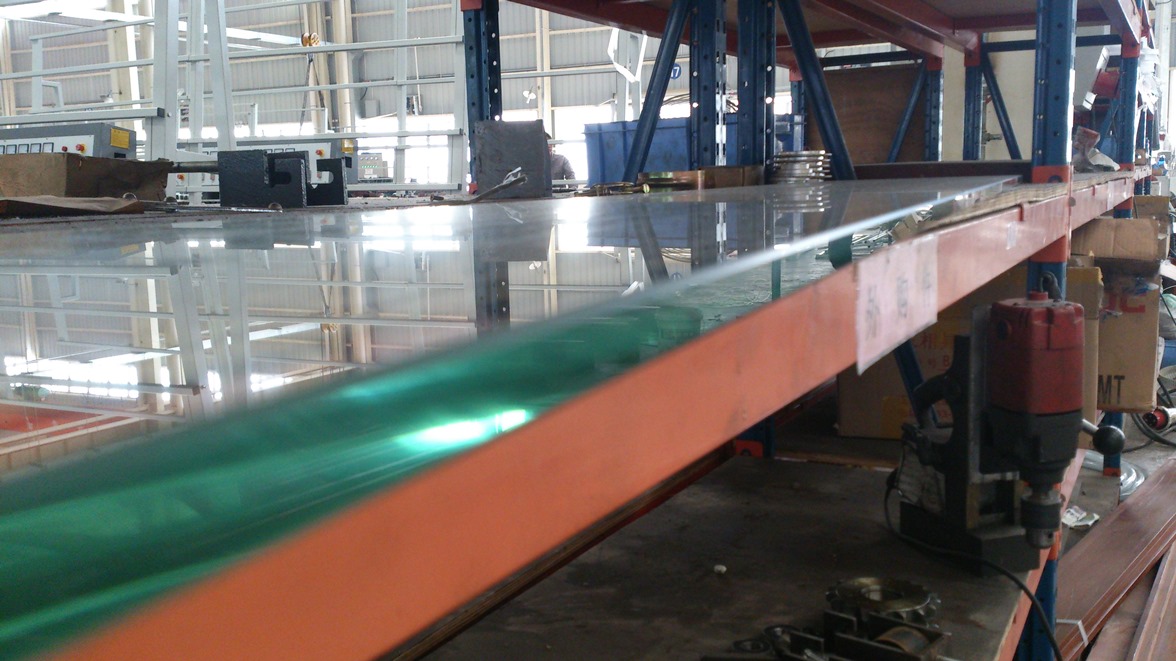

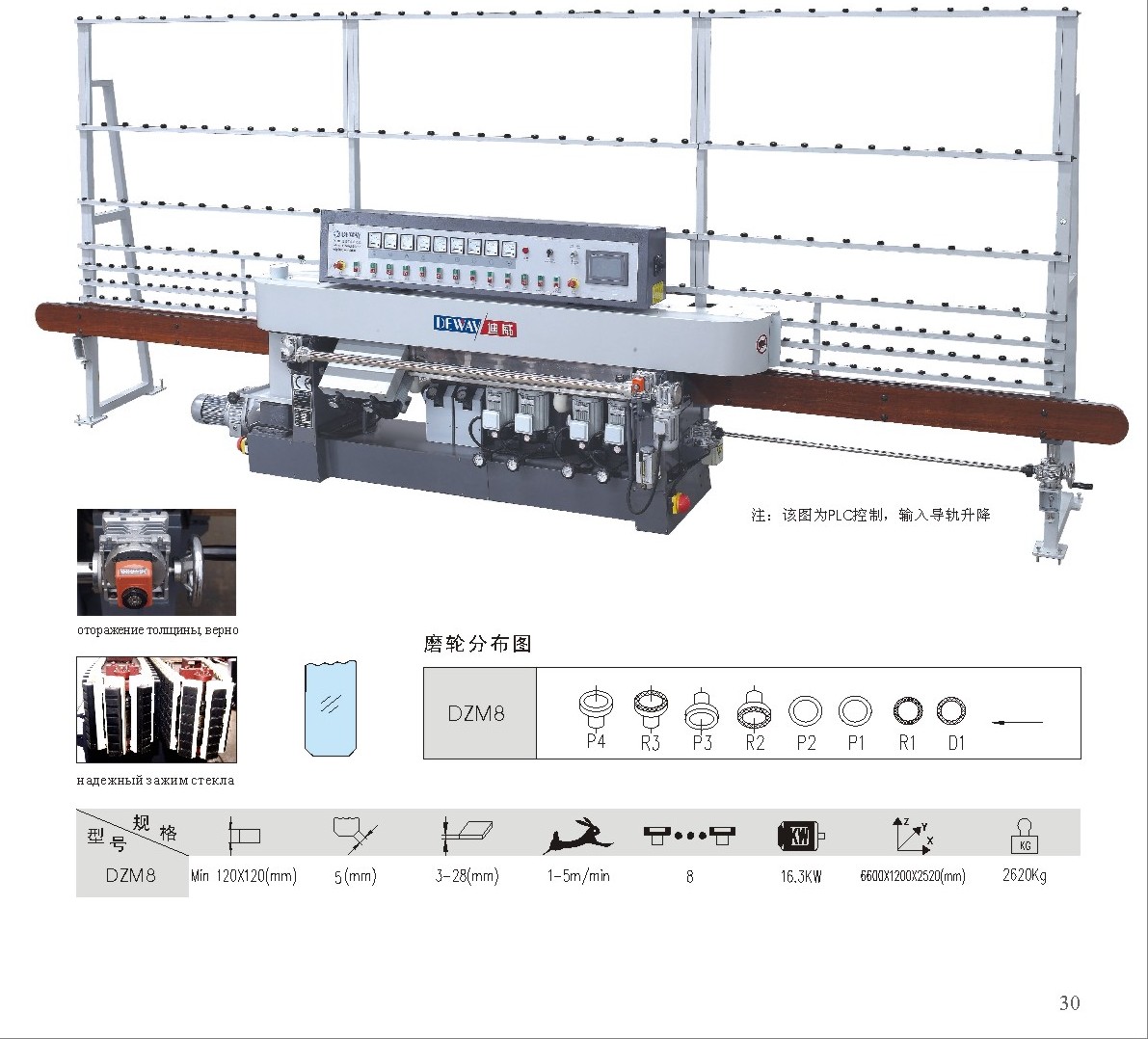

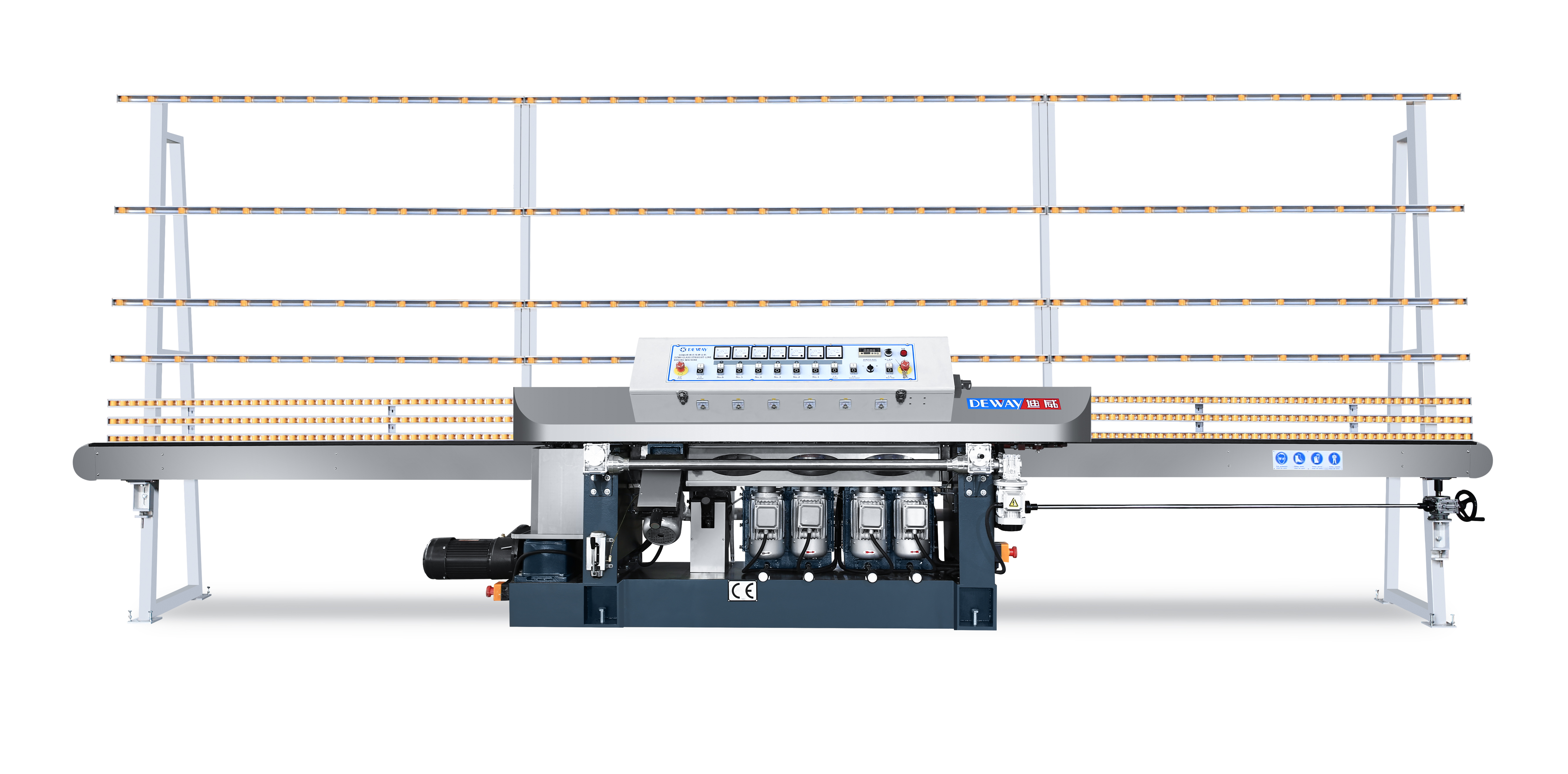

The DZM8 Glass Straight Line Edging Polisher is an 8-spindle vertical straight-line edging system engineered for precision flat-edge processing of glass sheets and mirrors. This industrial Glass Straight Line Polishing Machine combines grinding and polishing capabilities, serving as a vital asset in manufacturing facilities.
Product Features
Processing System:
- Sequence of cup diamond wheels and polishing wheels
- Glass Grinding capabilities for dimensional accuracy
- Integrated Glass Straight Line Polishing Machine functions
- Eight high-precision spindles
Operational Design:
- Motorized input conveyor transports sheets into edging unit
- Conveyor rollers positioned at 6° from vertical
- Operator interaction confined to manual loading/unloading
Technical Specifications:
- Processes all glass types and thicknesses
- Handles small pieces to large panels
- Compact workshop footprint
- Vibration-free operation
Control System:
- Intuitive operation interface
- Real-time processing monitoring
- Adjustable precision controls
Product Applications
This Glass Straight Line Edging Polisher serves:
- Glass manufacturing facilities
- Custom glass processing operations
- Architectural glass panel production
- Decorative glass element fabrication
- Industrial-scale production environments
- Small to medium workshops
Product Advantages
Precision & Quality:
- Delivers perfectly straight and smooth edges
- Achieves brilliant glossy finishes
- Maintains consistent quality across production
Operational Efficiency:
- Single-machine grinding and polishing solution
- Minimizes processing errors
- Reduces material waste
- Adapts to straight and complex edges
Durability & Maintenance:
- Wear-resistant components
- Corrosion-resistant construction
- Minimal maintenance requirements
Versatility:
- Processes all glass types/thicknesses
- Handles small to large panels
- Compact multi-environment design
Personnel & Safety:
- Single-operator requirement
- Optional assistant during loading/unloading
- Mandatory lifting equipment for sheets >30kg
- Intuitive controls reduce training time
Technical Summary
The DZM8 Glass Straight Line Polishing Machine exemplifies vertical straight-line edging technology. This premier Glass Straight Line Edging Polisher maintains 6° angled processing while delivering industrial-grade Glass Grinding and polishing performance.
DZM8 | |||||||||||||
Ref.no | No8 | No7 | No6 | No5 | No4 | No3 | No2 | No1 | |||||
Rev.(50Hz) | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | |||||
Rev.(60Hz) | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | |||||
Name | Fine grinding wheel | Fine grinding wheel | Resin wheel | Resin wheel | Polishing wheel | Fine grinding wheel | Resin wheel | Diamond wheel | |||||
Specification | 10S40 130×50 | 130×50 240 mesh | 10S40 130×50 | 130×50 240 | X081 150×50 | 10S40 150×70 | 150×50 240 mesh | 150×50 100 mesh | |||||
Usage | Fine grinding for front arris | Semi fine grinding for front arris | Fine grinding for back | Semi fine grinding for back arris | Bottom polishing | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding | |||||
Technical data
DZM8 | |
Length [mm] | 6600 |
Width [mm] | 1500 |
Height [mm] | 2500 |
Work top height [mm] | 800±30 |
Total weight [kg] | 2600 |
Workable thickness [mm] | 3～28 |
Minimum glass size [mm]: | 120x120 |
Maximum working weight: | 300 |
per meter of transport [kg / m] | 100 |
Total [kg] | 300 |
Conveyor speed [m / min] | 1～5 |
Tanks: | |
water [no x l] | 1*165 |
cerium oxide [no x l] (Optional) | |
Rated voltage [V] | See wiring diagram |
Installed power [kW] | 16.7 |
