DWZM10/11 Horizontal Edging Machine

Product Introduction

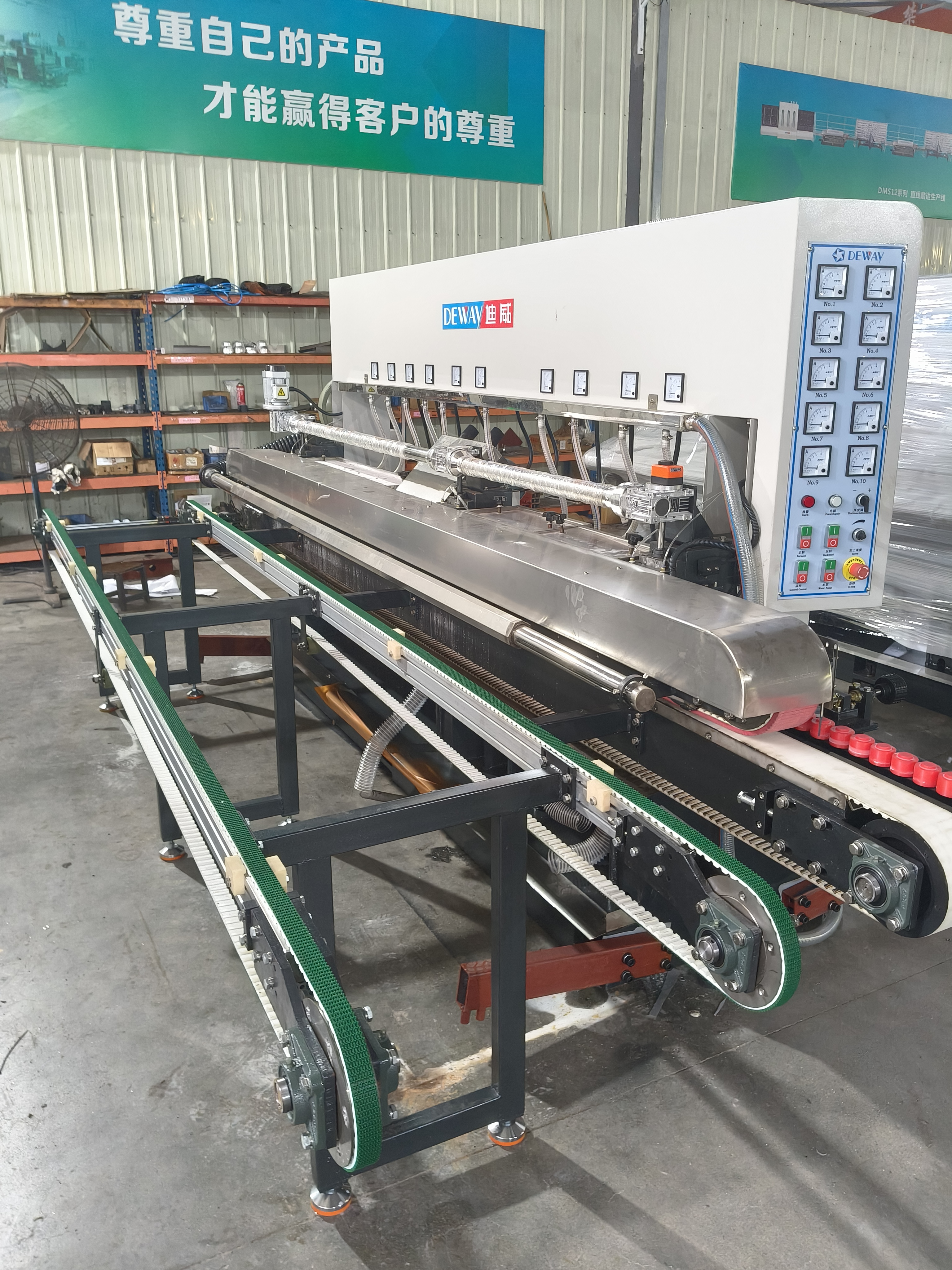

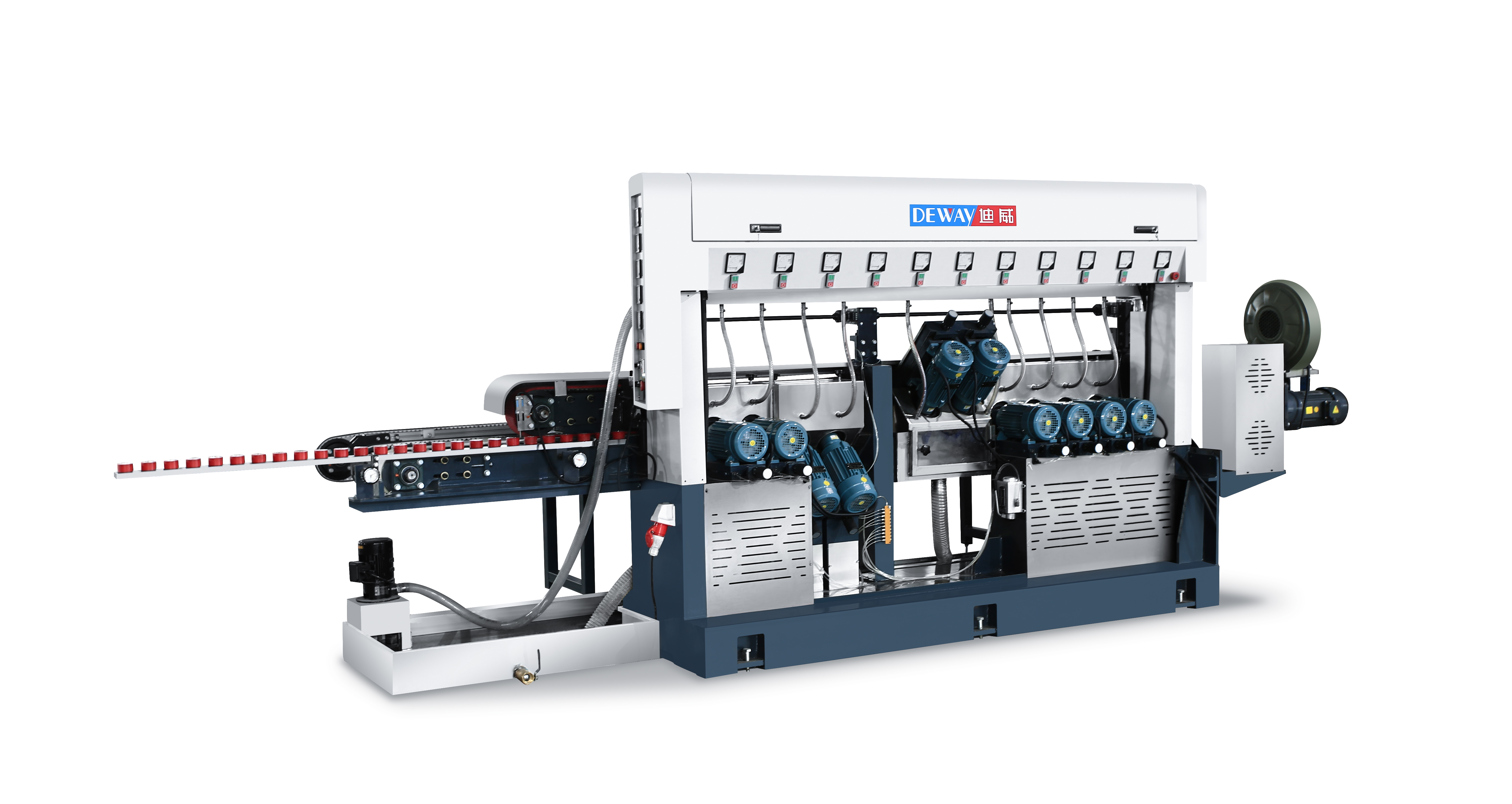

The horizontal straight line edging machine is a glass deep-processing device primarily used for grinding and polishing flat glass edges. Unlike traditional vertical machines, it adopts synchronous belt clamping and horizontal transmission, which significantly improves precision and stability. As a specialized horizontal glass edging machine, it delivers consistent results for a wide range of applications. This horizontal edging machine redefines reliability by using a horizontal feed system, while the integrated horizontal glass edge polisher function enables a high-gloss finish in one pass. Its design as a robust horizontal edge grinding machine ensures efficient material removal without compromising accuracy.

Product Features

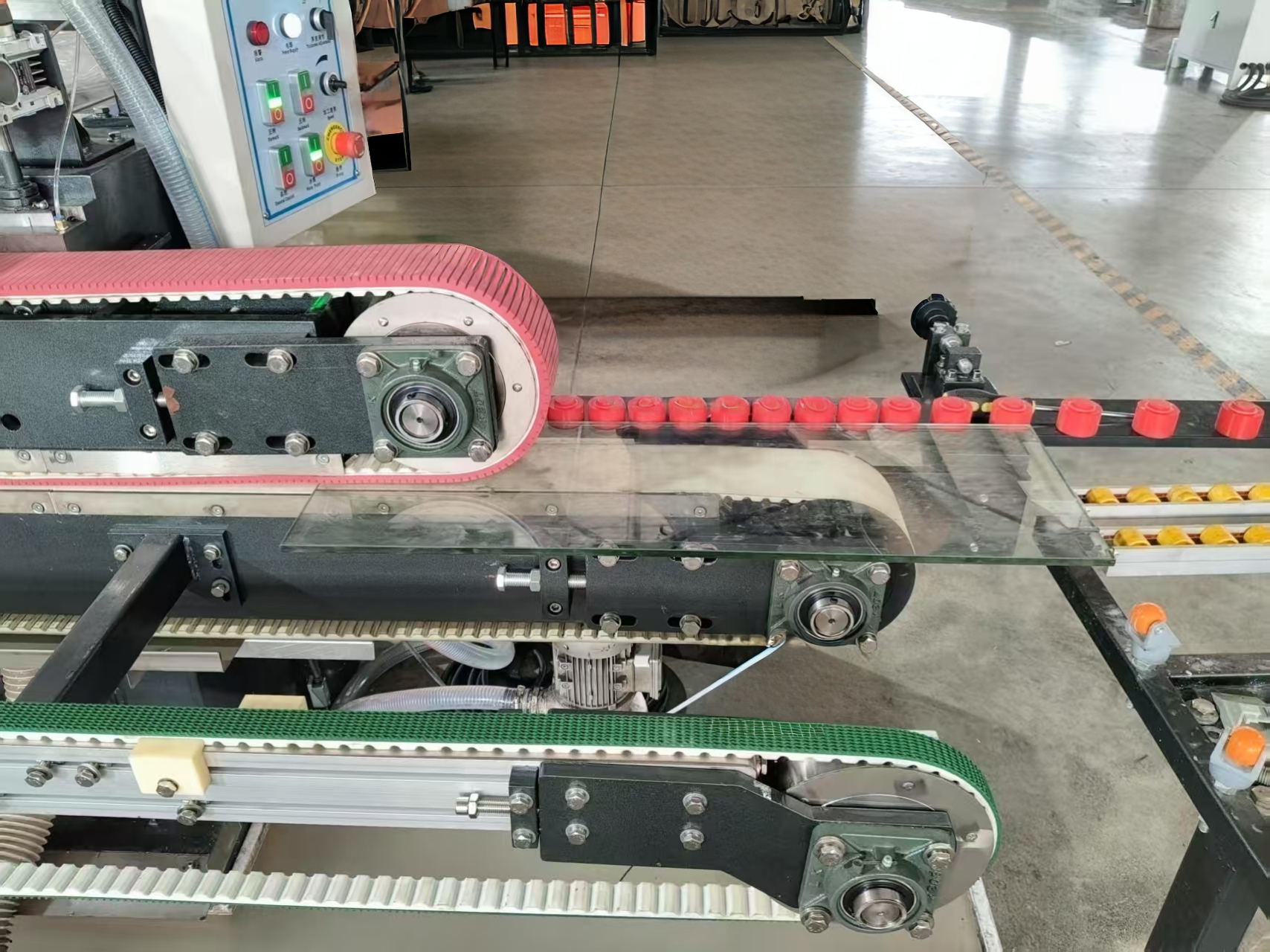

- High-precision horizontal transmission: Replaces vertical chain transmission with upper and lower synchronous belts rotating in opposite directions to clamp and convey glass. The stable movement keeps dimensional error within 0.2 mm, a key advantage of this horizontal glass edging machine.

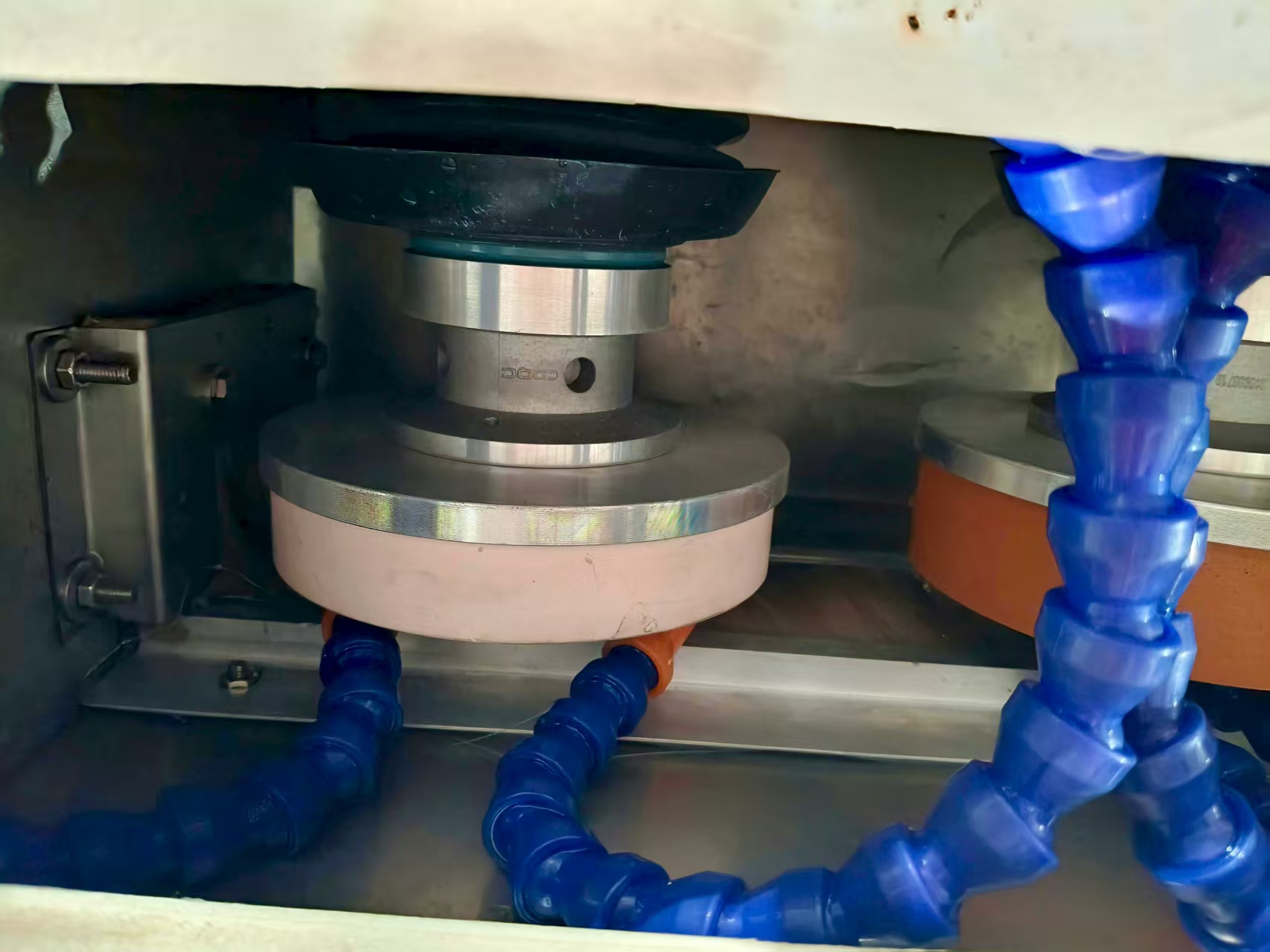

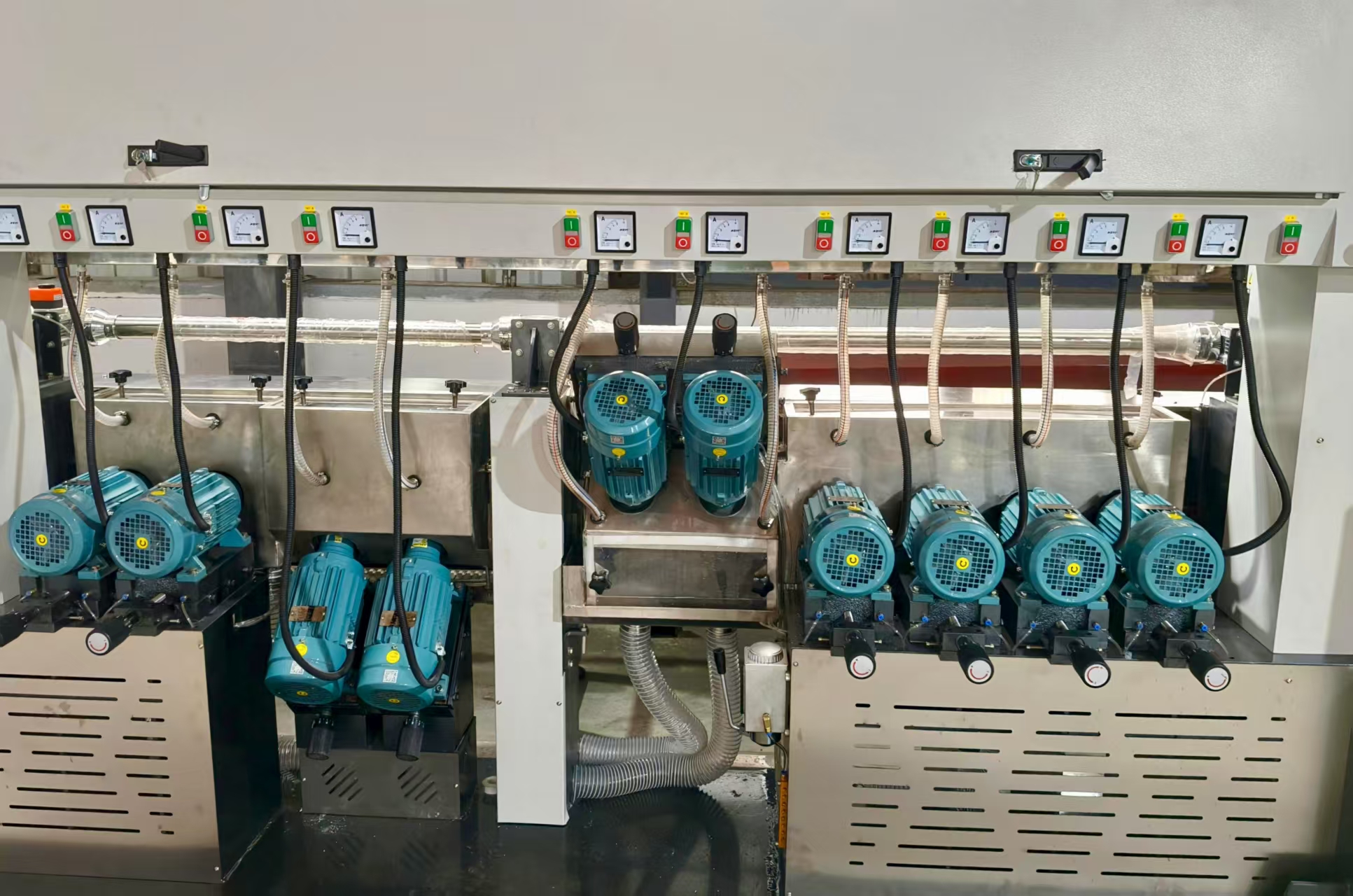

- Integrated grinding and polishing: Multiple grinding heads complete rough grinding, fine grinding, chamfering, and polishing in a single machine. A mirror finish is achieved without transferring the glass, making this horizontal straight line edging machine highly efficient.

- Wide processing capability: Processes glass from 3 mm to 25 mm thick, supports 45° chamfering, and handles minimum sizes of 120 mm × 120 mm, ideal for medium to large glass products.

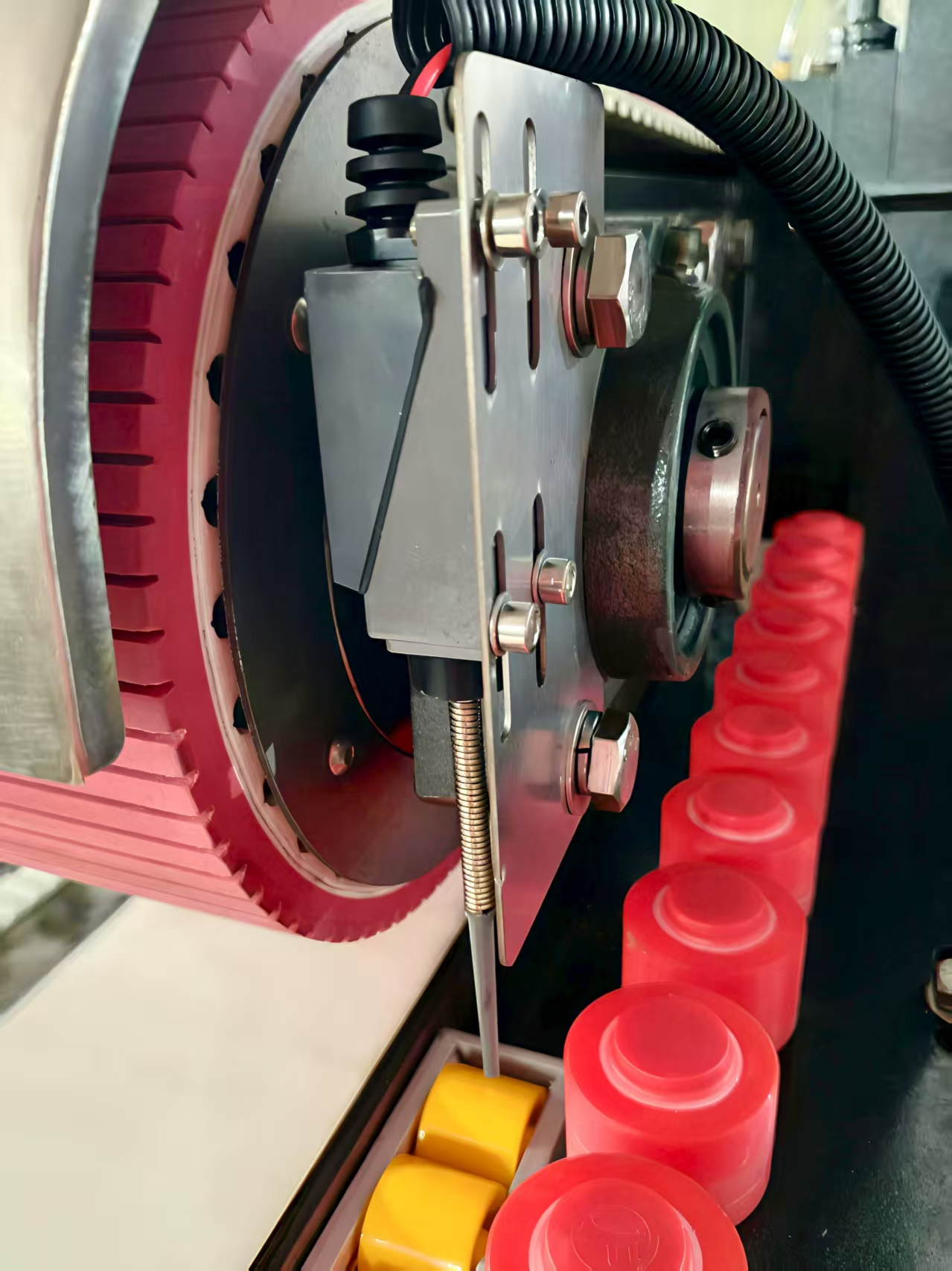

- Stable structure and reliable materials: Key parts such as the base and guide rails are cast iron with natural aging treatment to maintain long-term precision. Imported synchronous belts with PU or red rubber surfaces provide secure clamping while reducing breakage risk for thin glass.

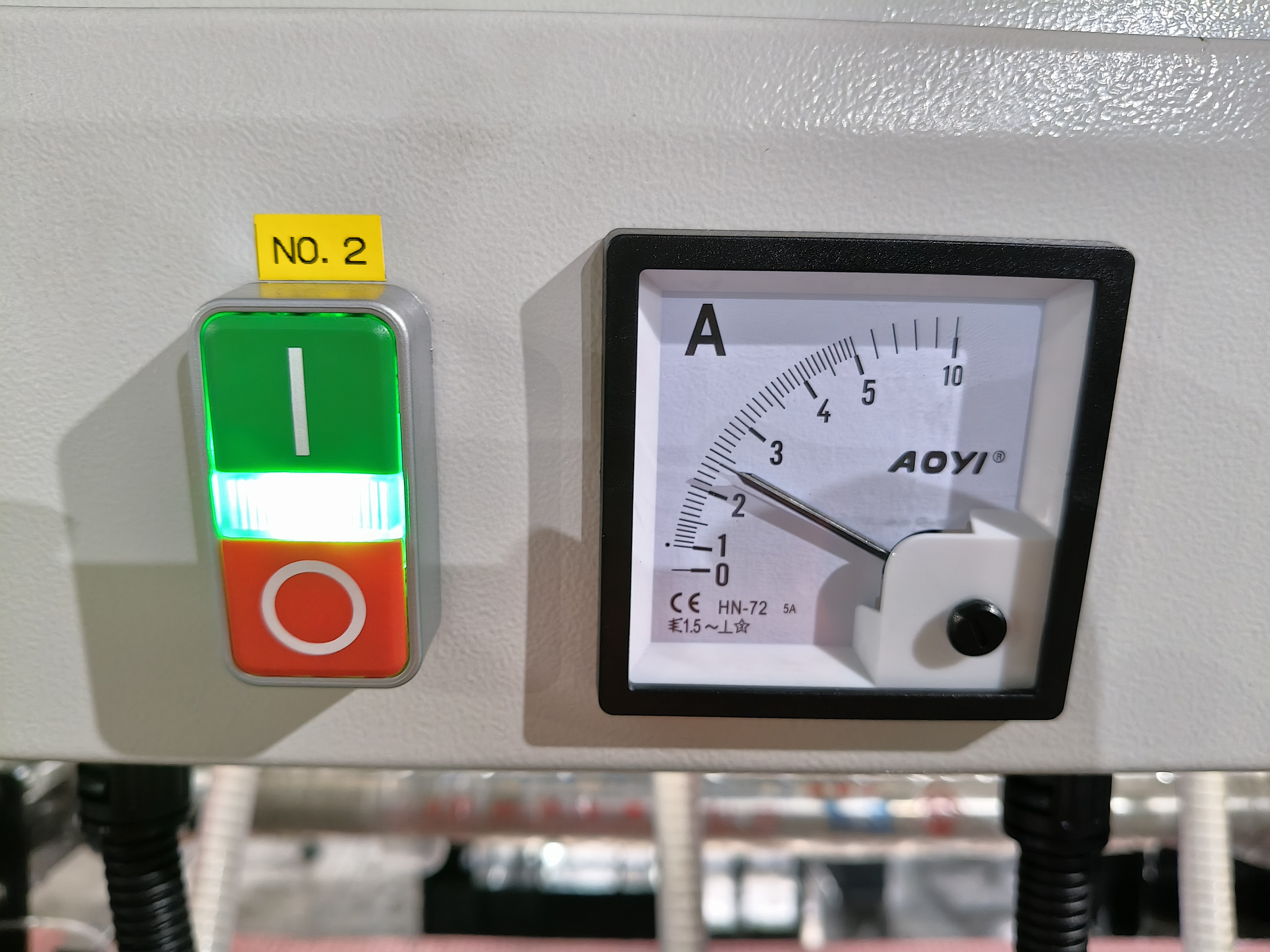

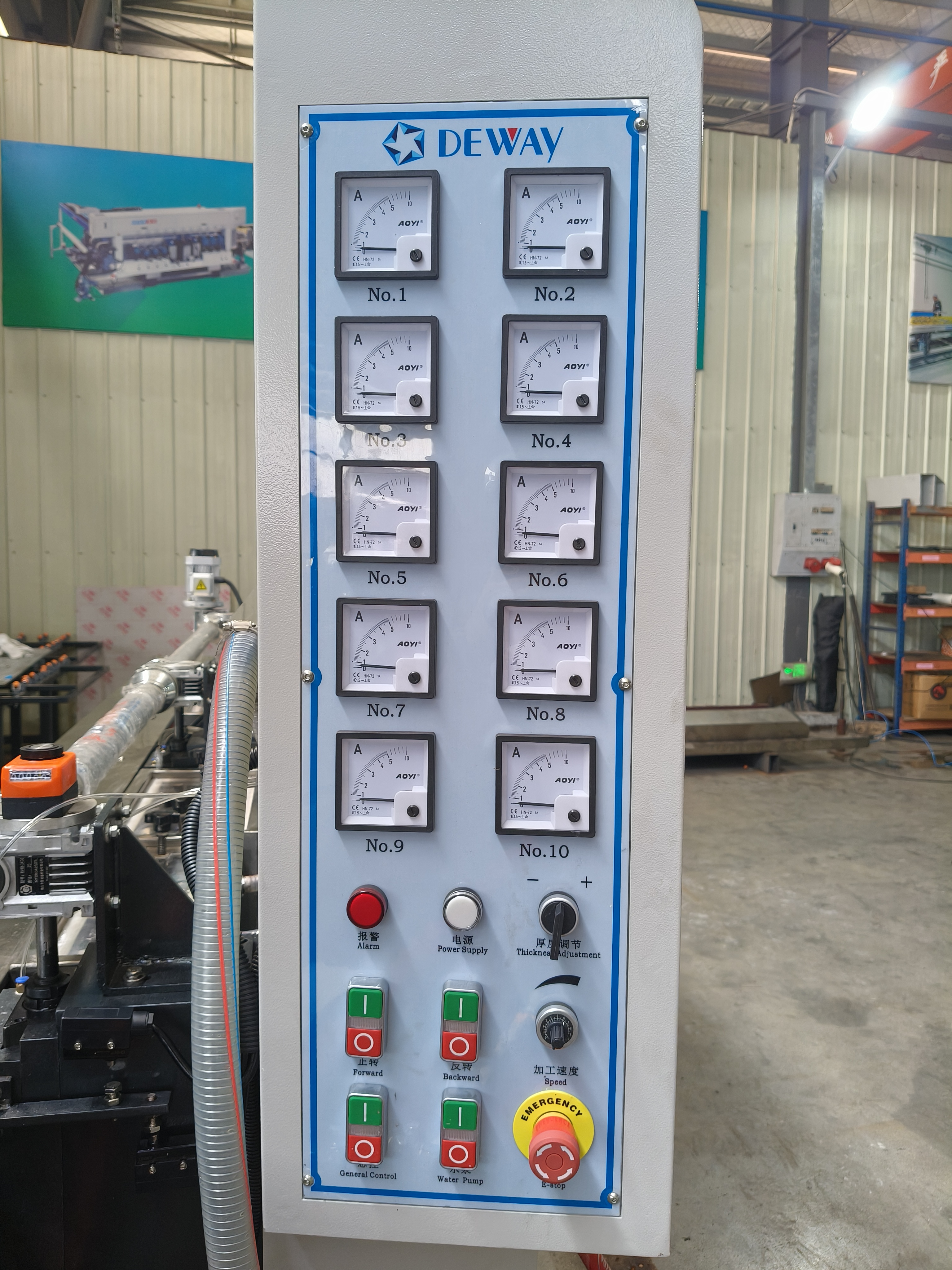

- Convenient operation and maintenance: Stepless speed adjustment (via inverter) allows flexible process control. An emergency stop button and circulating water cooling system are included to protect grinding wheels and ensure quality.

Product Advantages

When processing large and thick glass, this horizontal edging machine offers clear benefits. Heavy glass sheets are difficult to load onto vertical machines and prone to vibration-induced breakage, which risks both material loss and operator injury. With a horizontal glass edging machine, loading is simply horizontal—glass is less likely to break, and even if it does, falling pieces do not endanger workers.

Compared to traditional vertical equipment, this horizontal straight line edging machine can process complex shapes such as rhombus and trapezoidal glass, thanks to its stable clamping and horizontal feed.

In vertical machines, cooling water flows downward; if the waterproof cover fails, water can enter the motor below, causing short circuits or rust. In contrast, motors on a horizontal edge grinding machine are positioned horizontally, eliminating this risk.

Maintenance is also easier. The horizontal layout provides convenient access to the transmission system, grinding heads, and other components, minimizing downtime. As a reliable horizontal glass edge polisher, it combines safety, versatility, and ease of service—making it an ideal choice for modern glass processing.

Product Applications

Scope of application:

- Small glass crafts, home decoration glass, furniture glass with straight edges.

- Panel glass for cabinet doors, crystal steel doors, etc.

- Edge finishing for architectural glass and frameless glass doors.

- Some models also process ceramic tiles, artificial stone, and microcrystalline stone.

Operational precautions:

- Safety first: Never touch moving or live parts during operation; use the emergency stop button if needed.

- Regular inspection: Monitor grinding wheel wear, adjust feed as needed, keep cooling water clean and sufficient, and clear pipelines.

- Periodic maintenance: Lubricate guide rails and sliders regularly; replace gear oil in the gearbox as required.

Identification data

Machine:     Horizontal edger

Model:       DWZM10/11

Voltage and Frequency:  AC380V±10%  3φ  50Hz±2%；

Total power:     25.5kW(DWZM10); 27.7kW(DWZM11)

Workable thickness:   3~25mm

Serial no.:

Product date:   2024

Technical data
