Brief Introduction
DSM series straight edging machines process glass sheets and mirrors using cup diamond/polishing wheels. Manual loading via input conveyor to edging unit. Single primary operator with optional loading/unloading assistance. Lifting equipment required for sheets >30kg.
Product Introduction

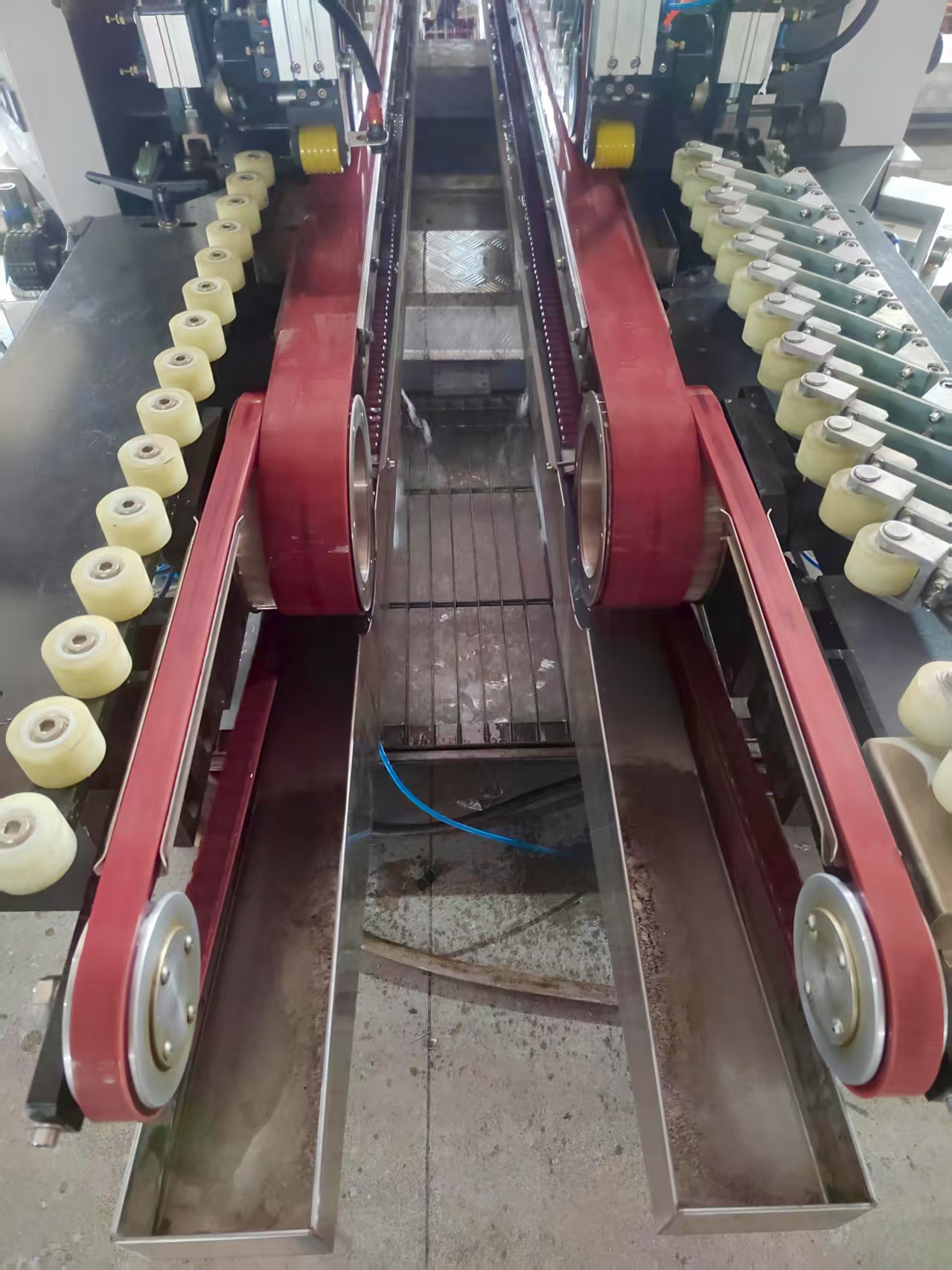

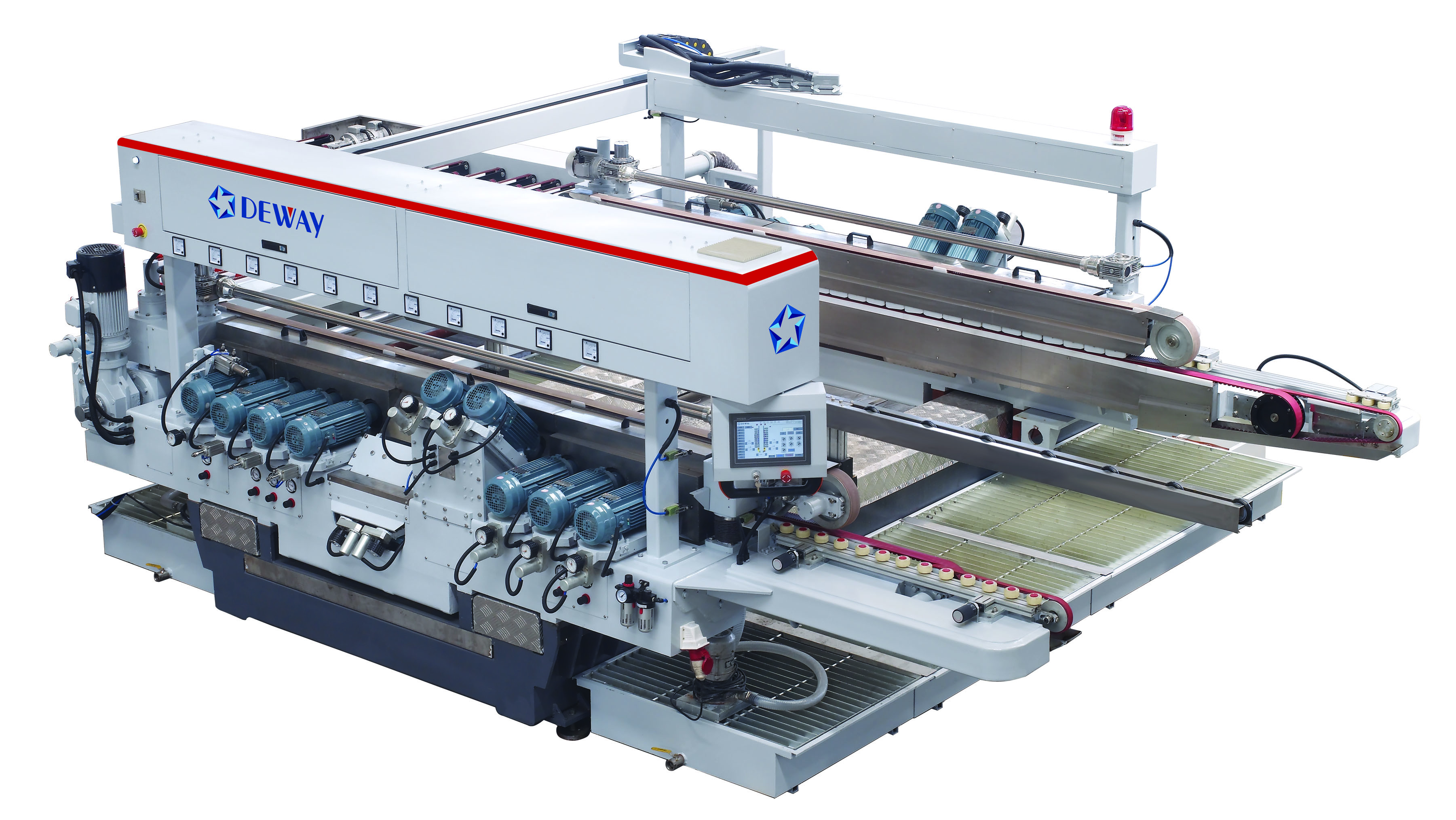

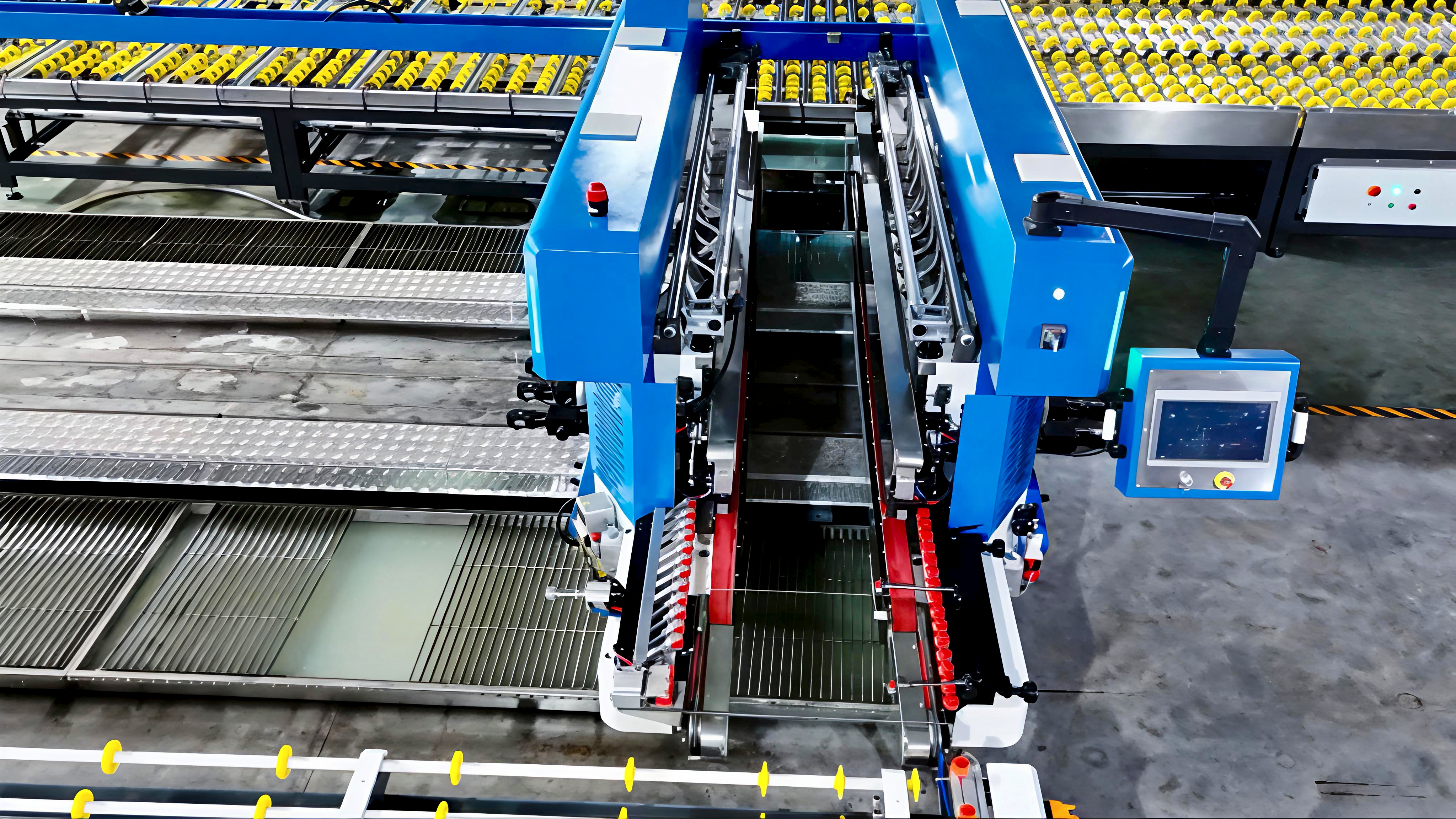

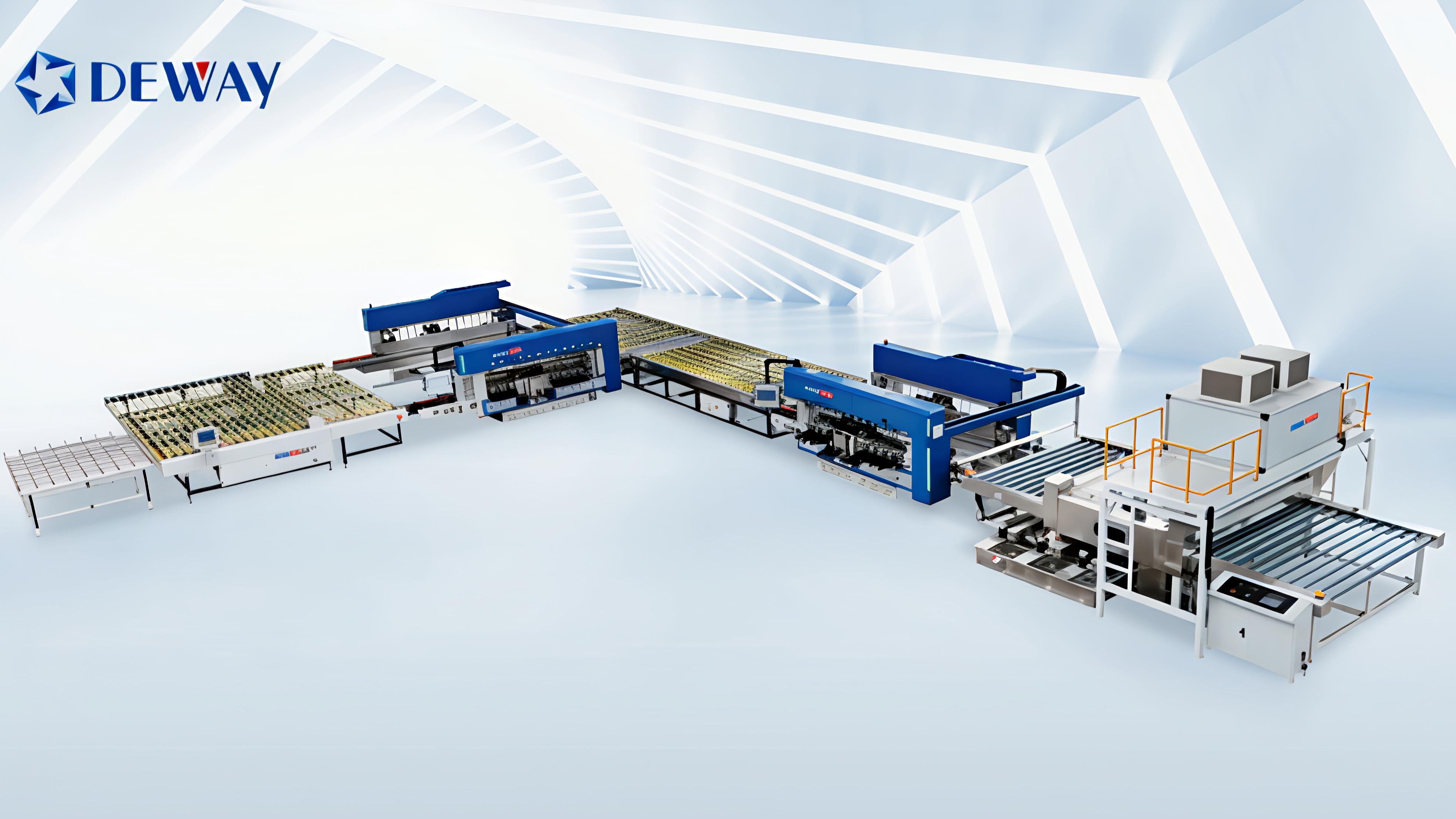

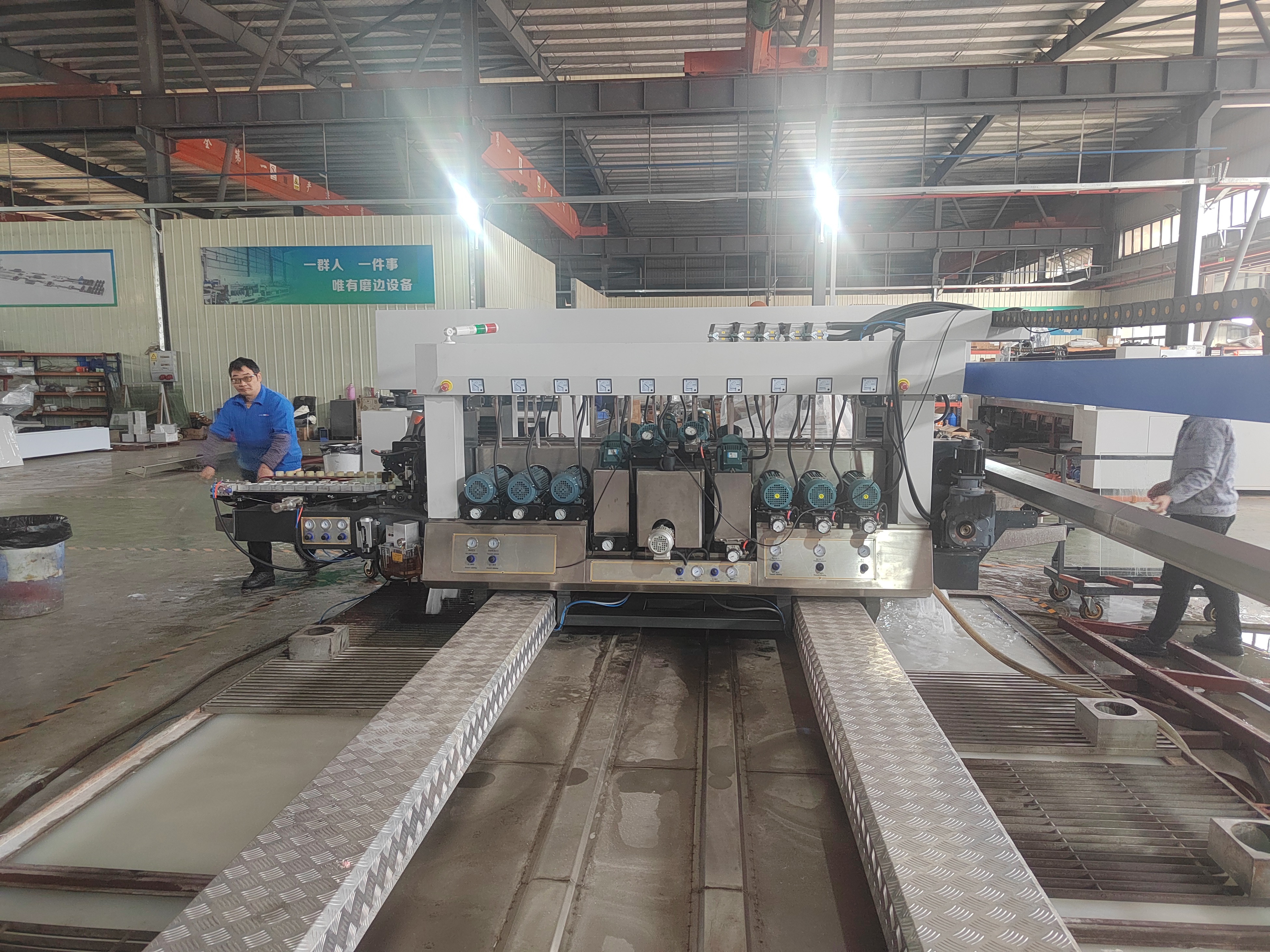

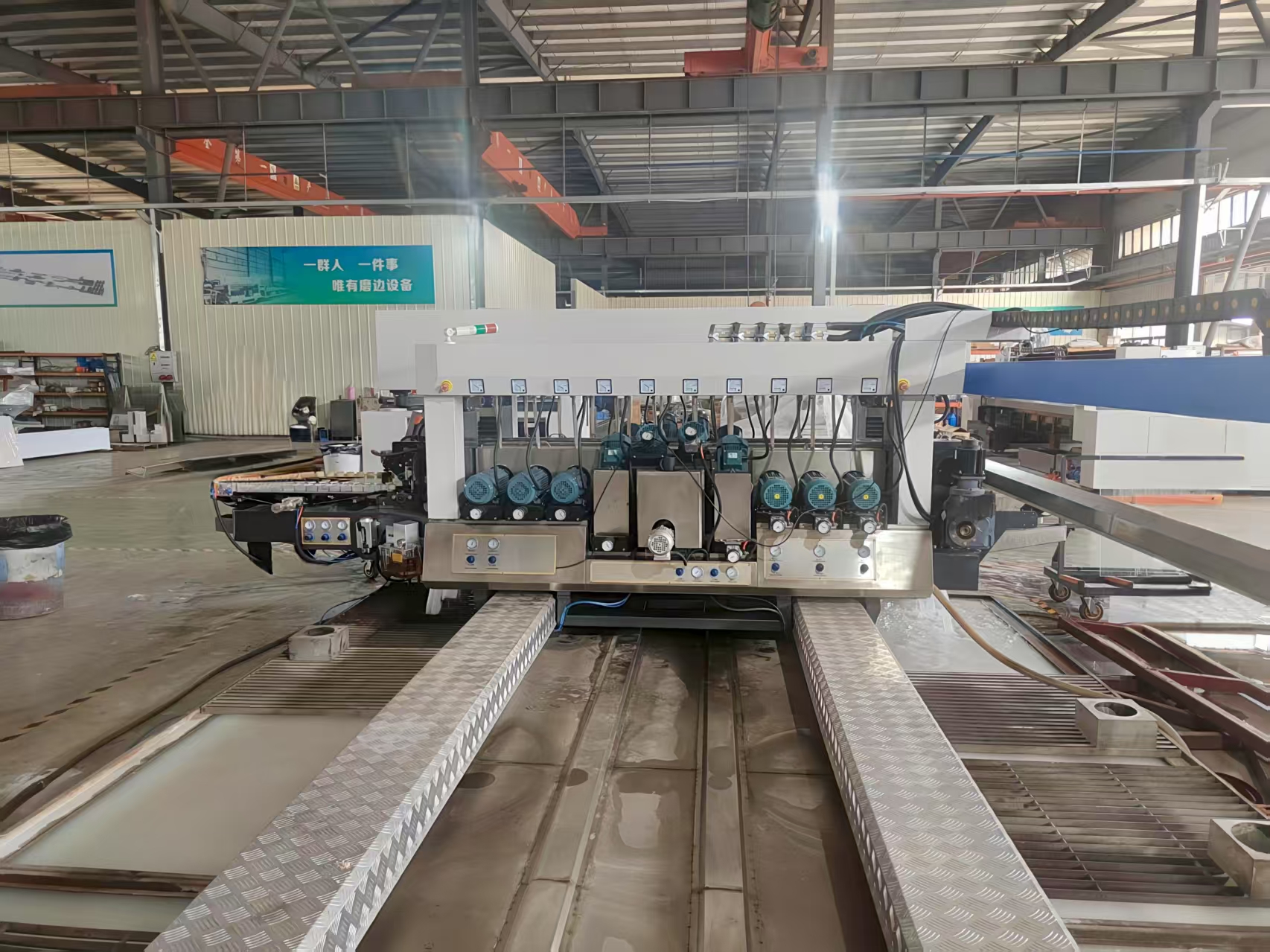

The Glass Double Edging Machine DSM2225 (22 Wheels, 2500mm) delivers precision processing for architectural glass and mirrors. This Glass double line edging machine handles 2.5m panels with industrial reliability.
Product Features

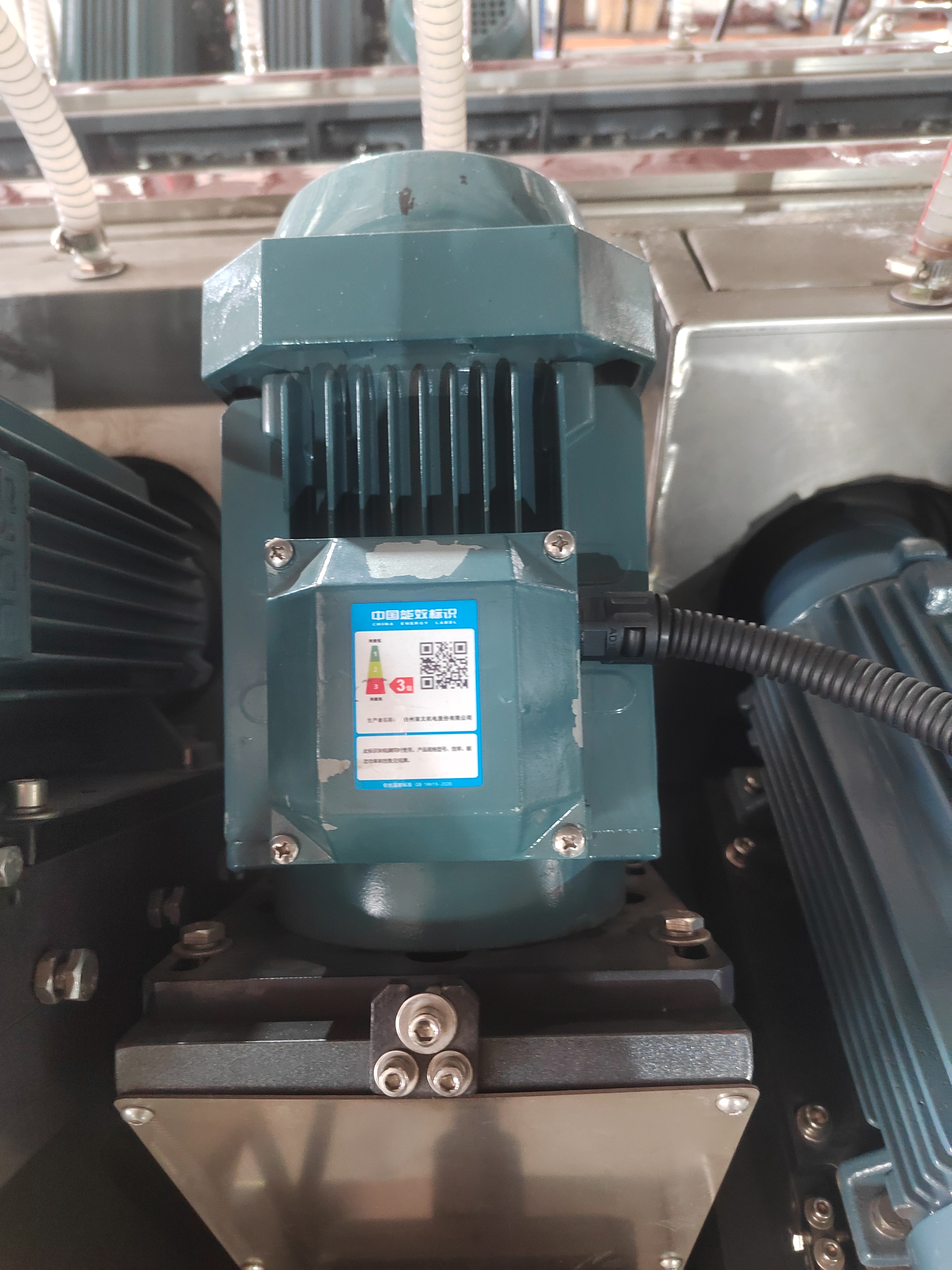

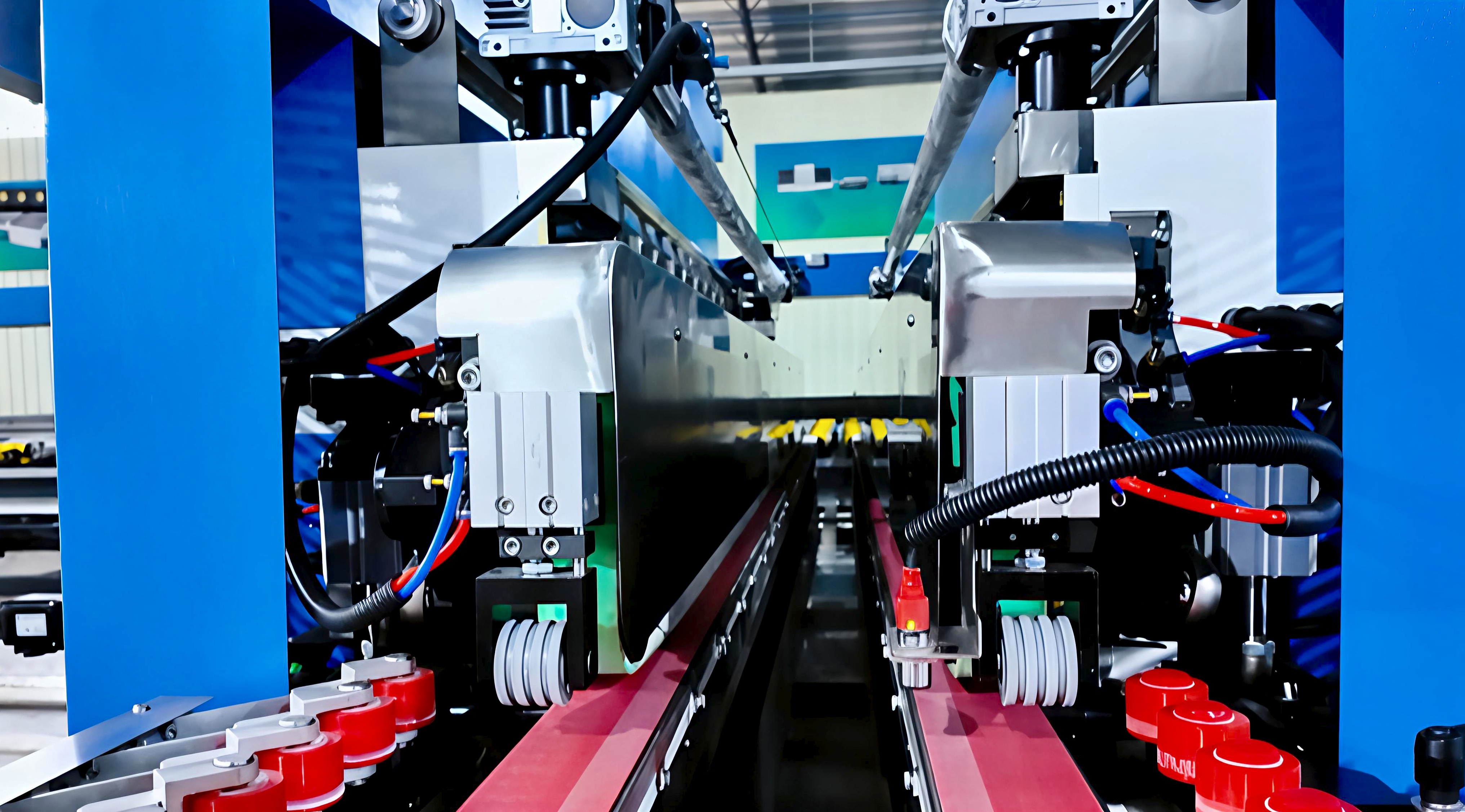

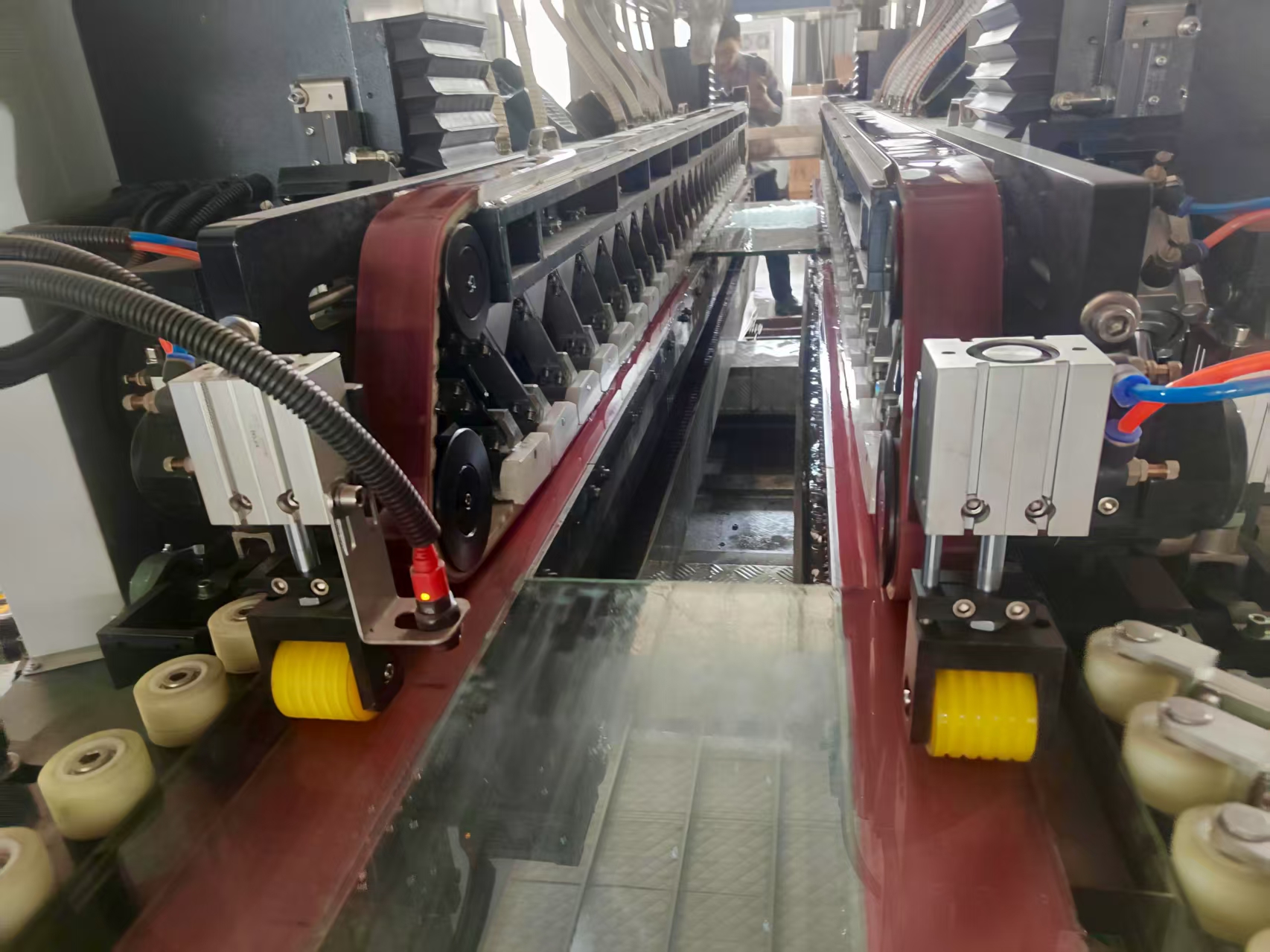

- 22-wheel diamond grinding/polishing
- Double line for edging machine configuration
- 2500mm large-format capacity
- Heavy-duty continuous-operation build

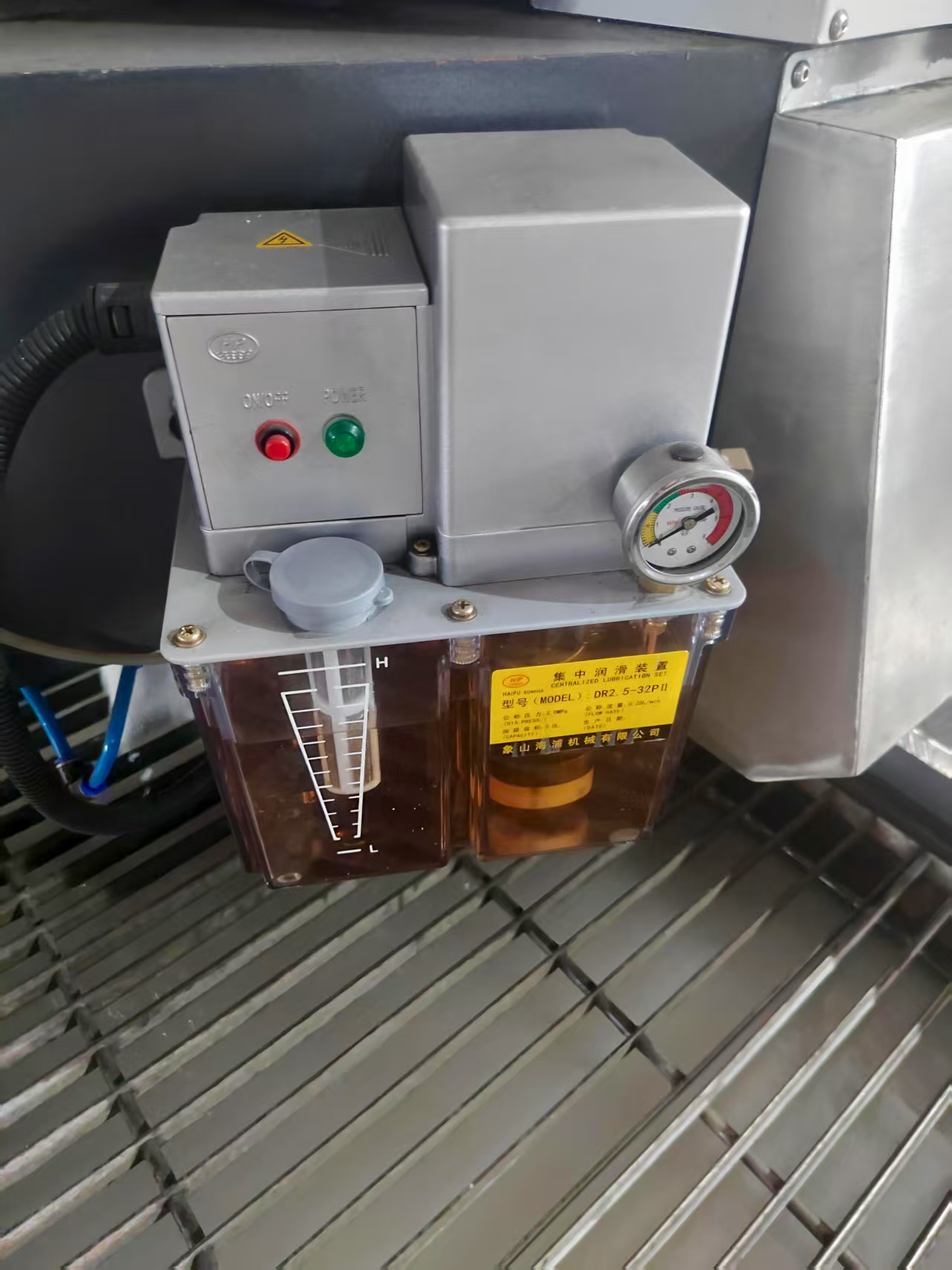

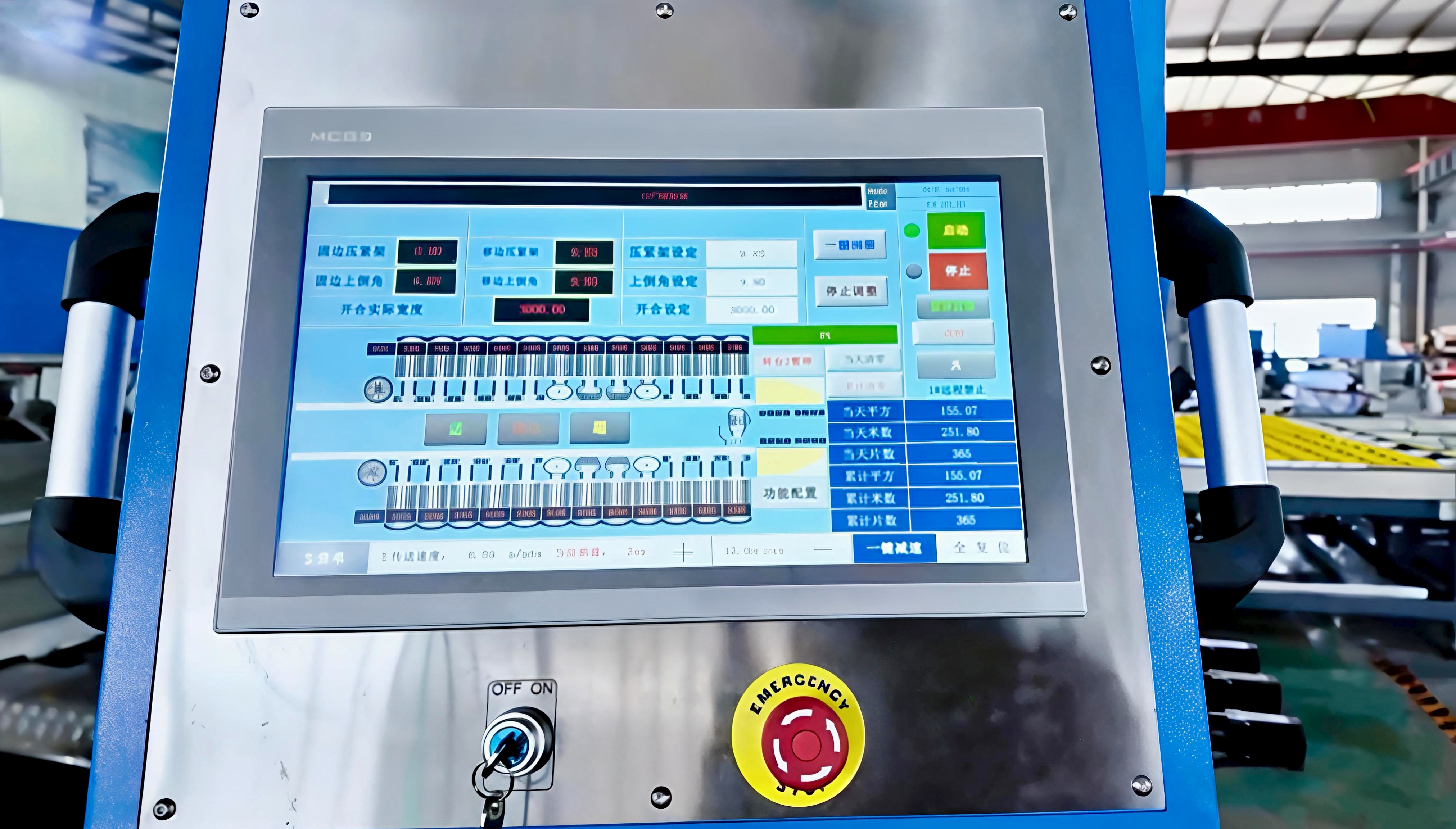

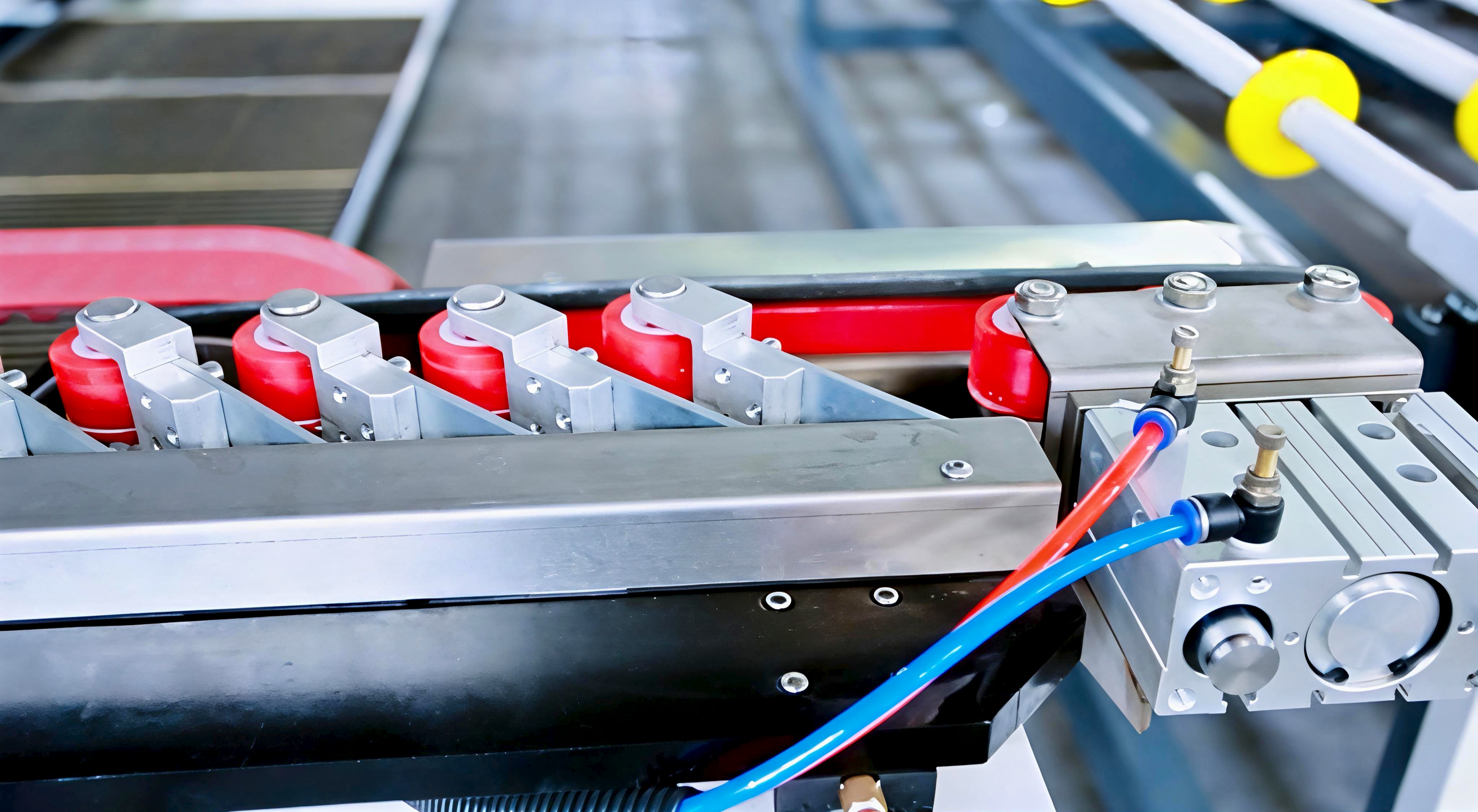

- Automated controls
- Safety enclosures with emergency stops
Product Applications
- Architectural façades
- Decorative mirrors
- High-volume production
- Precision-critical edges
Product Advantages
- Dual-edge efficiency: Doubles output vs single-line systems
- Glass Double Edging Processing Machine precision: ≤0.1mm uniformity
- Seamless line integration
- High speed double edging machine operation: 18m/min without quality loss
- 35% throughput increase (150 panels/hour @12mm)
- Single-operator workflow
- 95% uptime with minimal maintenance
Identification data
Machine: Glass Double edging machine
Model: DSM22
Voltage and Frequency: 380V, 50Hz
Total power: 46Kw
Workable thickness: 3~19mm
Weight: 7000kg
Serial no.:
Product date: 2020
Wheel position with respect to the incoming sheet | |||||||||||
DSM22 | |||||||||||
Ref.no | No.11 | No.10 | No.9 | No.8 | No.7 | No.6 | No.5 | No.4 | No.3 | No.2 | No.1 |

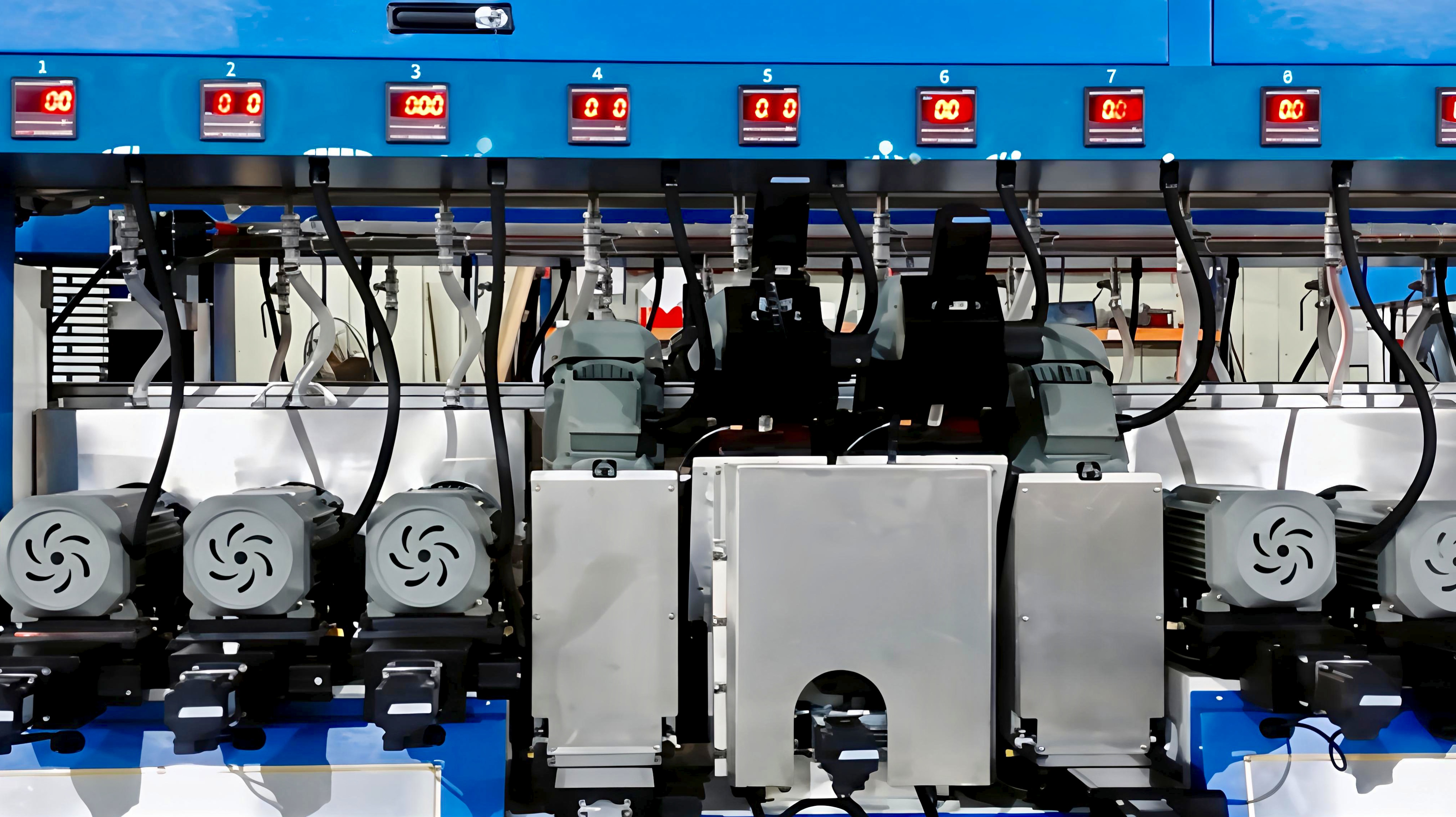

Power | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 3.0kW | 3.0kW | 3.0kW |
Rev.(50Hz) | 1400 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2785 |
Name | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Resin wheel | Polishing wheel | Resin wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | Φ150 CE3 | Φ150 10S60 | Φ150 10S60 | Φ150 10S40 | Φ150 10S40 | Φ150 240 mush | Φ150 10S40 | Φ150 240 mush | Φ150 240 mush | Φ150 140mush | Φ175 100 mush |
Usage | Bottom polishing | Bottom polishing | Bottom polishing | Bottom polishing | Polishing for upper arris | Fine grinding for upper arris | Polishing for down arris | Fine grinding for down arris | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
Technical data
Data | DSM20 | DSM22 |
Wheels amount | 20 | 22 |
Transmit Speed （m/min） | 1～8 | |
Glass thickness (mm) | 3～25 | |
Glass width (mm) | 300～5000 | |
Parallel tolerance (mm) | ≤0.2/1m≤0.3/2m | |
Diagonal tolerance (mm) | ≤0.5/1m | |
Install power（kW） | 46 | 50 |
Voltage （V） | 380V/50Hz | |
Compressed air（Mpa） | 0.6 -0.8 | |
Noise （dB） | ≤80 | |
Weight （Kg） | 7000 | 7300 |
