Brief Introduction

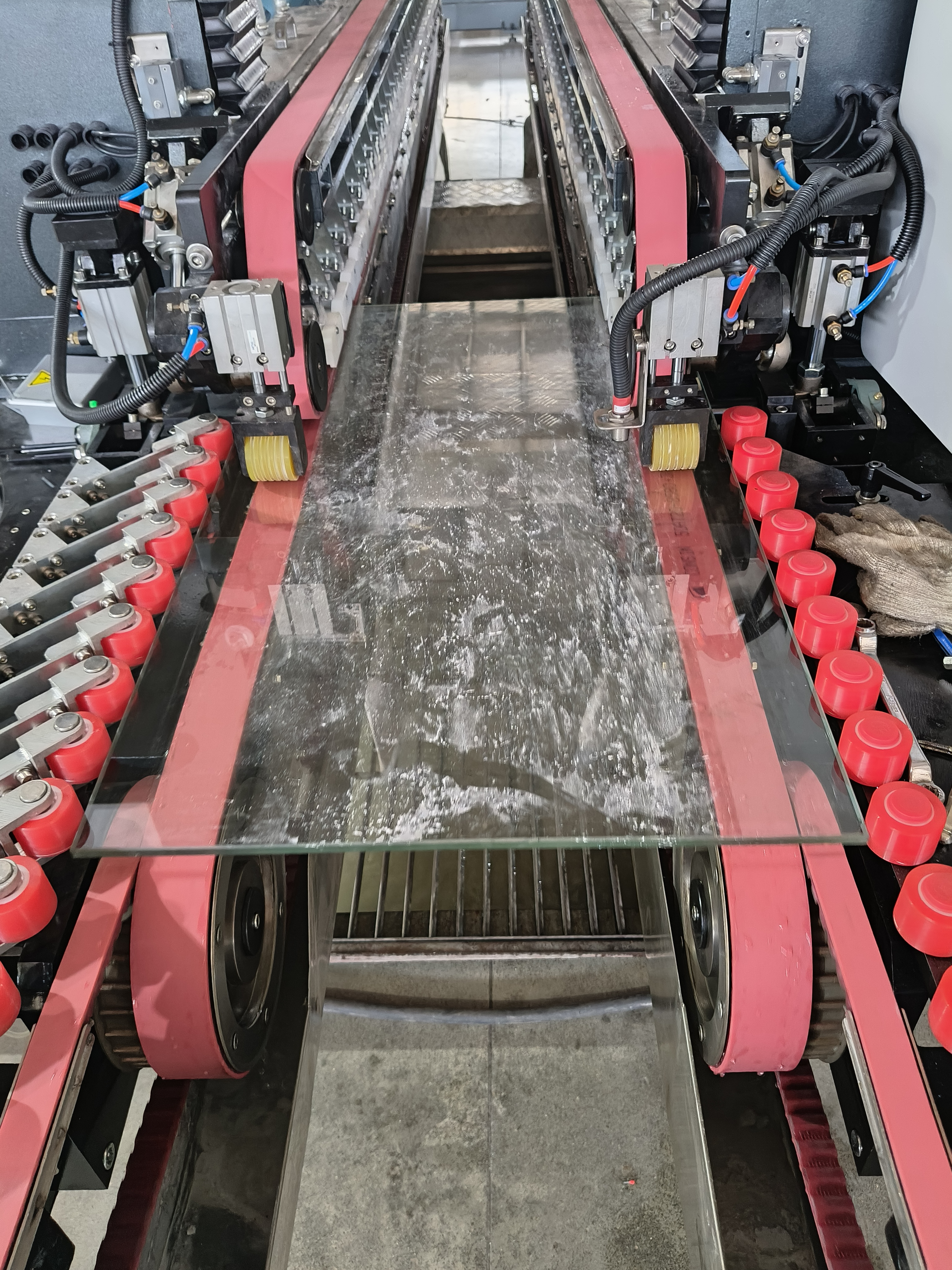

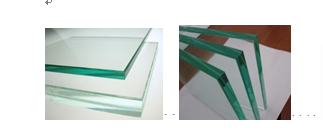

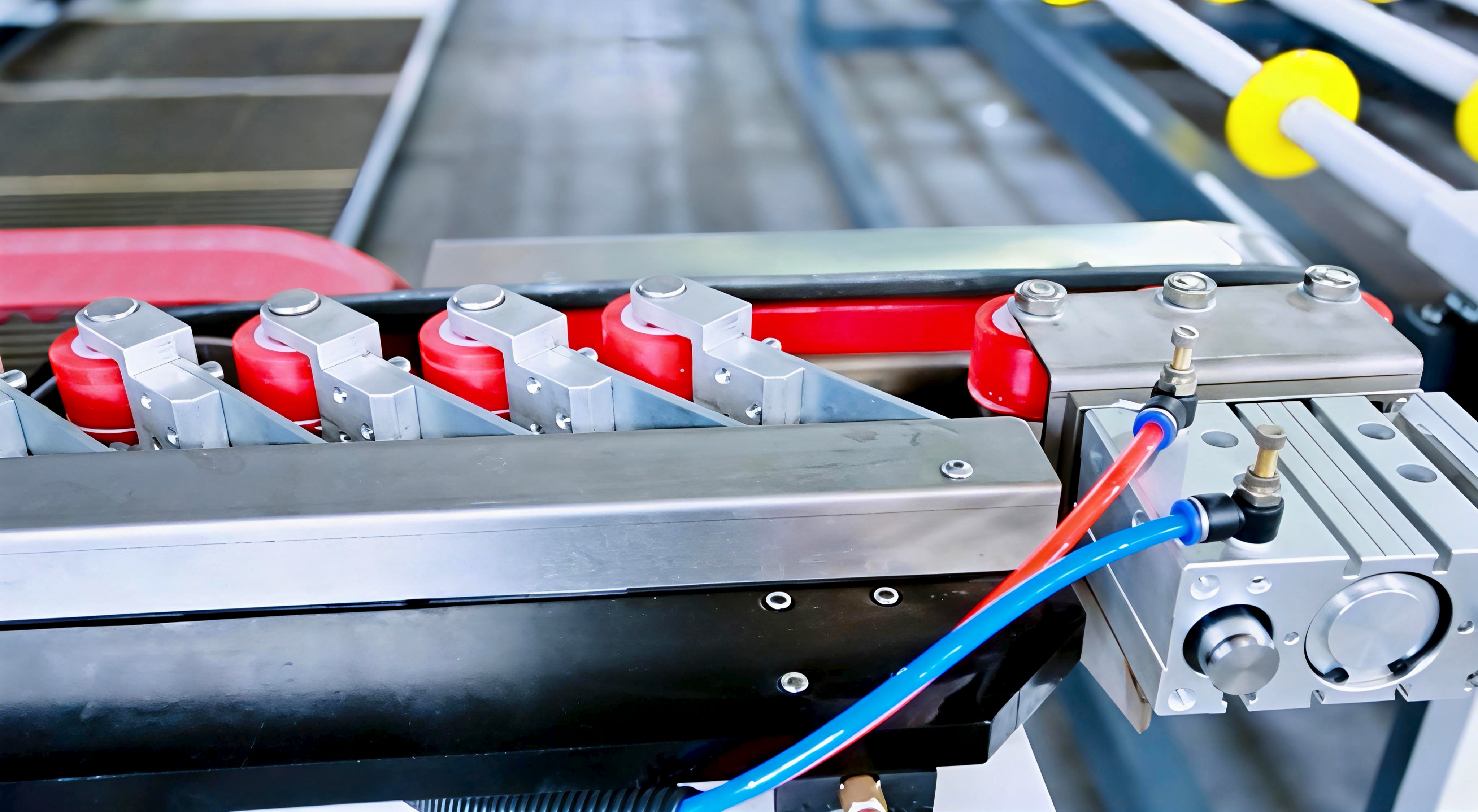

DSM machines process straight flat edges on glass sheets/mirrors using cup diamond and polishing wheels. Manual conveyor loading to edging unit. Single operator with optional assistance. Lifting equipment required for sheets >30kg.
Product Introduction

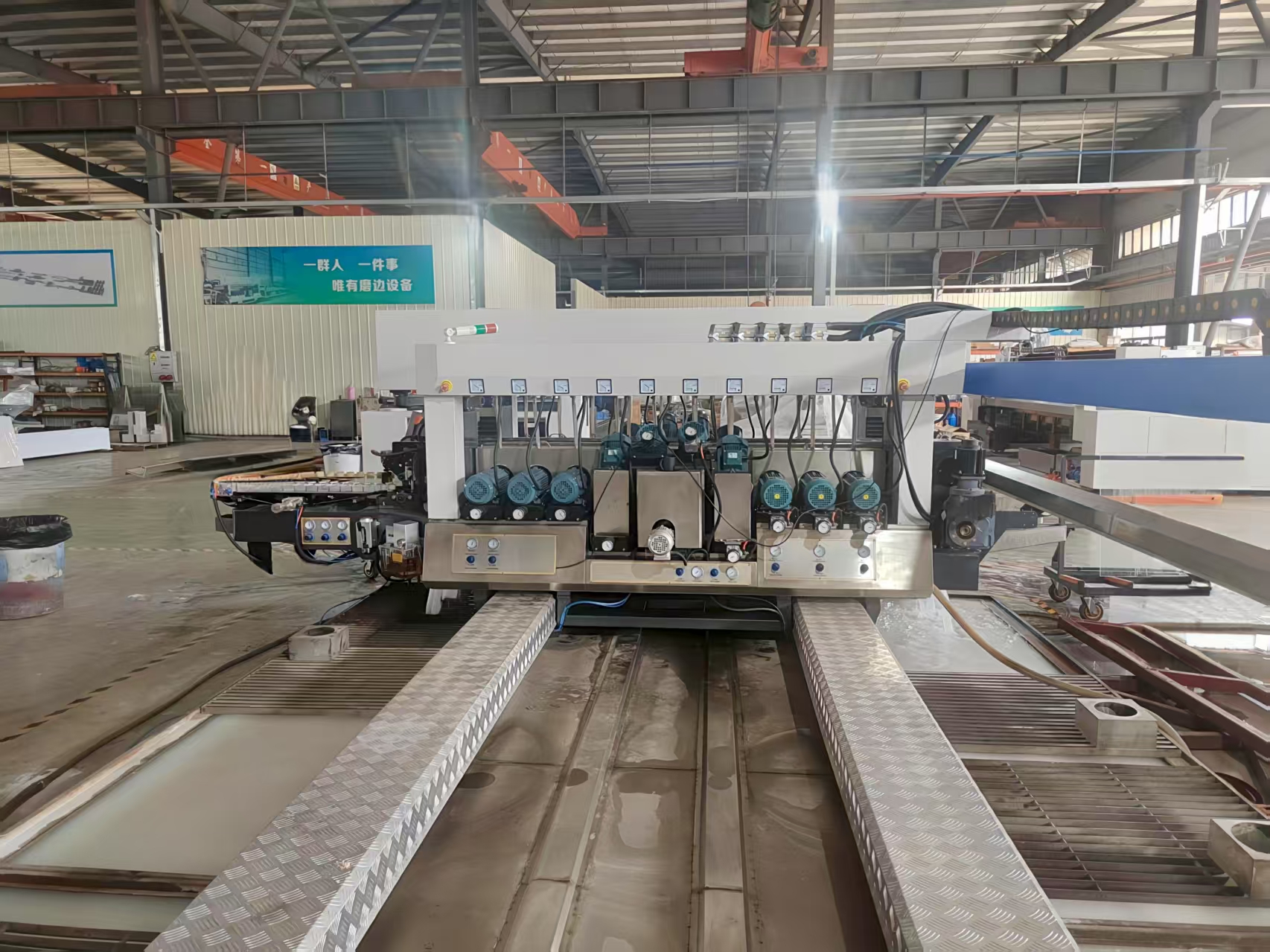

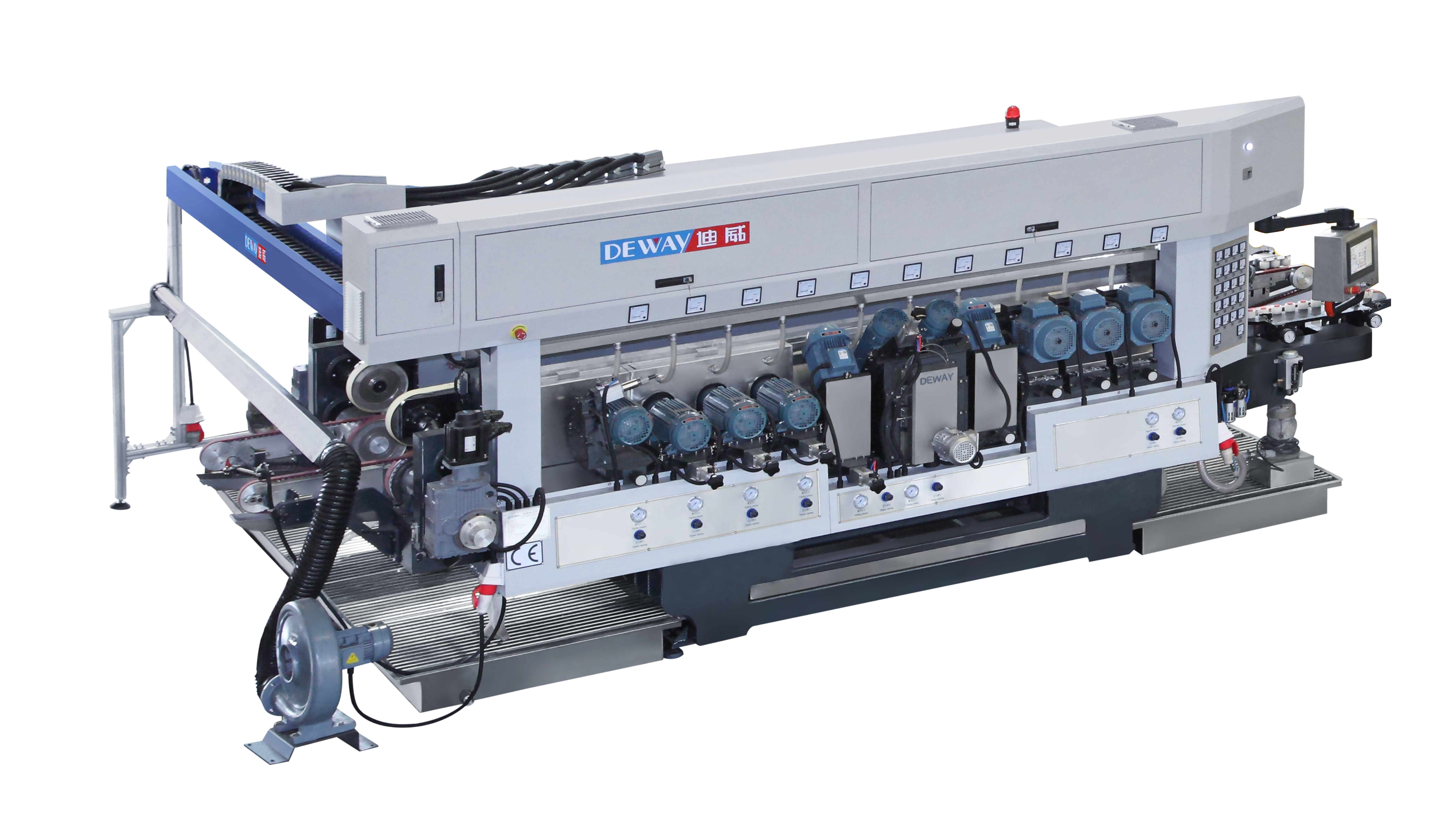

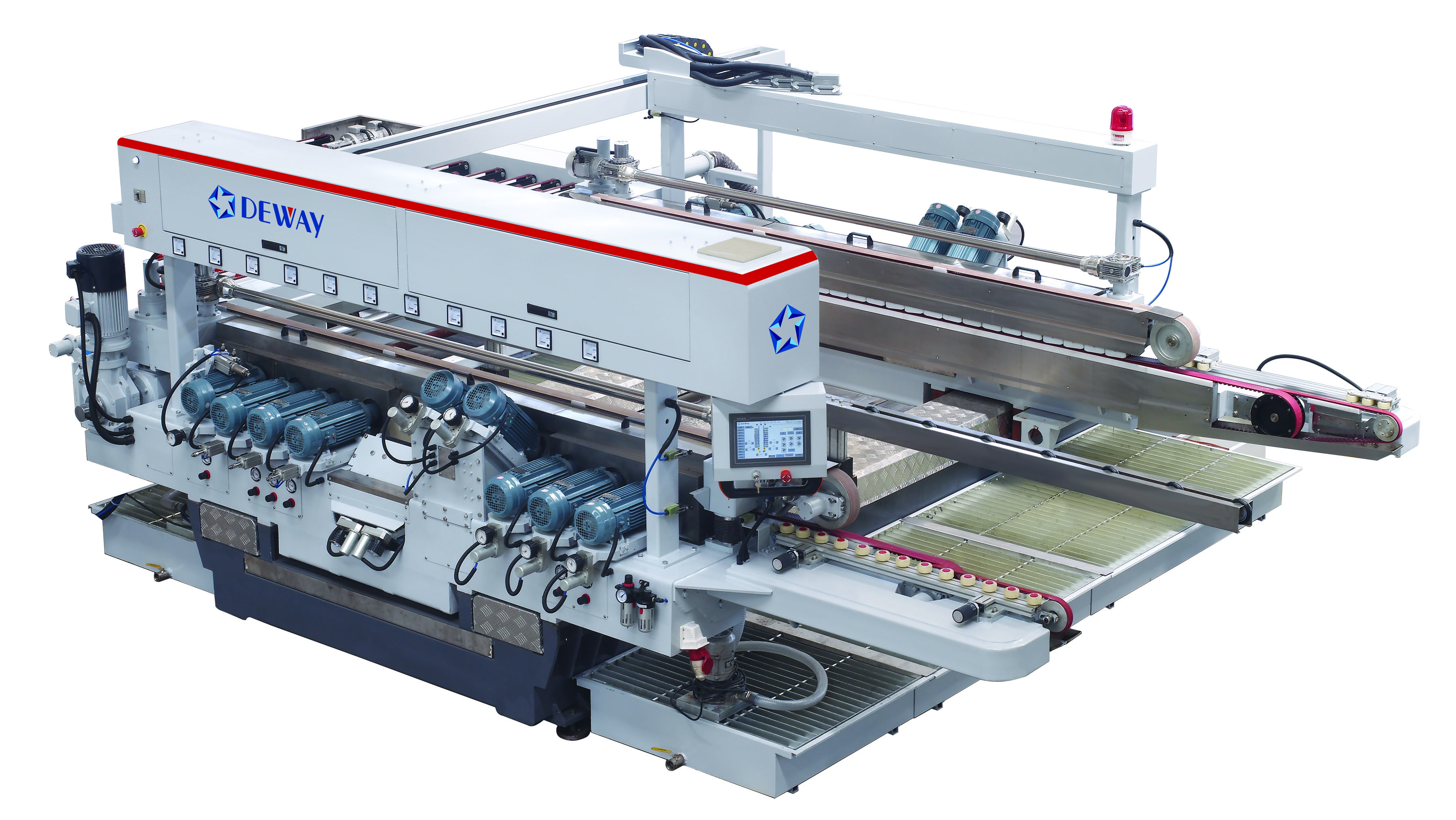

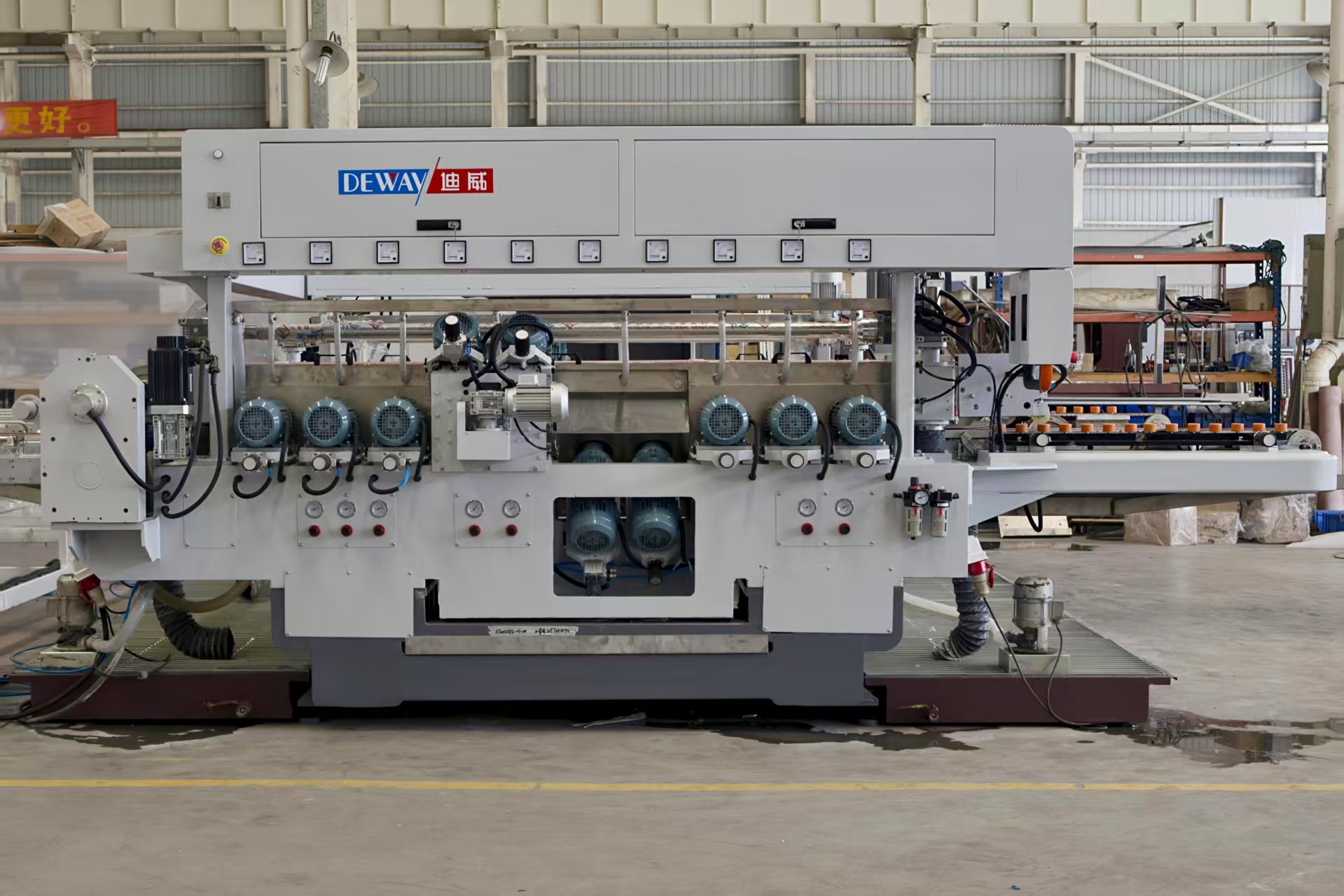

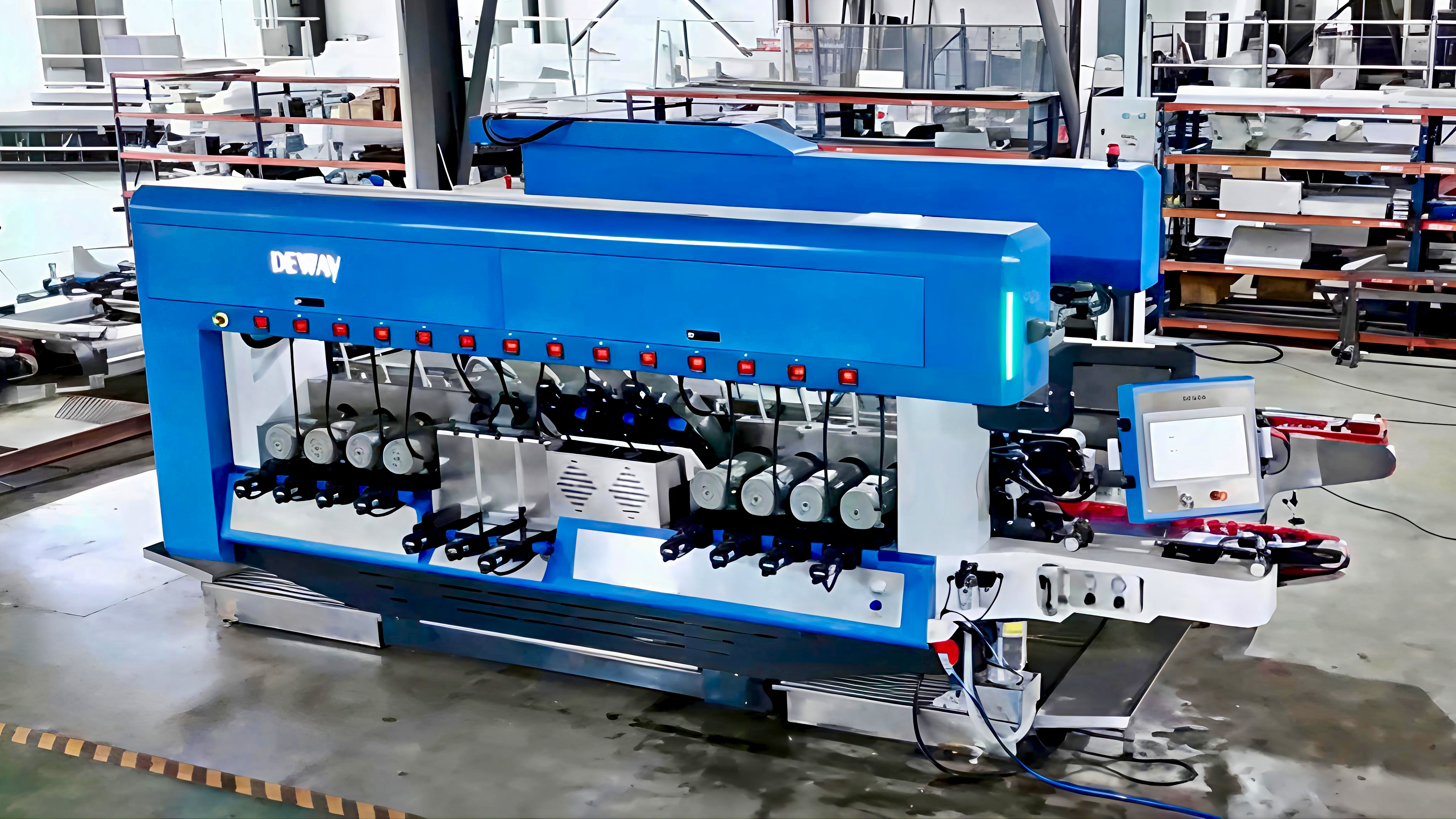

The DSM2030 Glass Double Side Edging Machine (20 Wheels, 3000mm) is a high-performance solution engineered for double-sided edging in modern glass processing industries. This state-of-the-art double edging machine prioritizes efficiency, precision, and durability for large-scale production facilities.
Product Features
- 20-wheel system enabling simultaneous grinding/polishing of both glass sides
- 3000mm maximum glass length capacity
- Advanced control systems for precise wheel adjustment
- Glass Double Sides Edging Processing Machine precision ensuring uniform edges
- High-speed operation processing both sides simultaneously
- Robust design for consistent high-volume performance
- Energy-efficient construction reducing operational costs

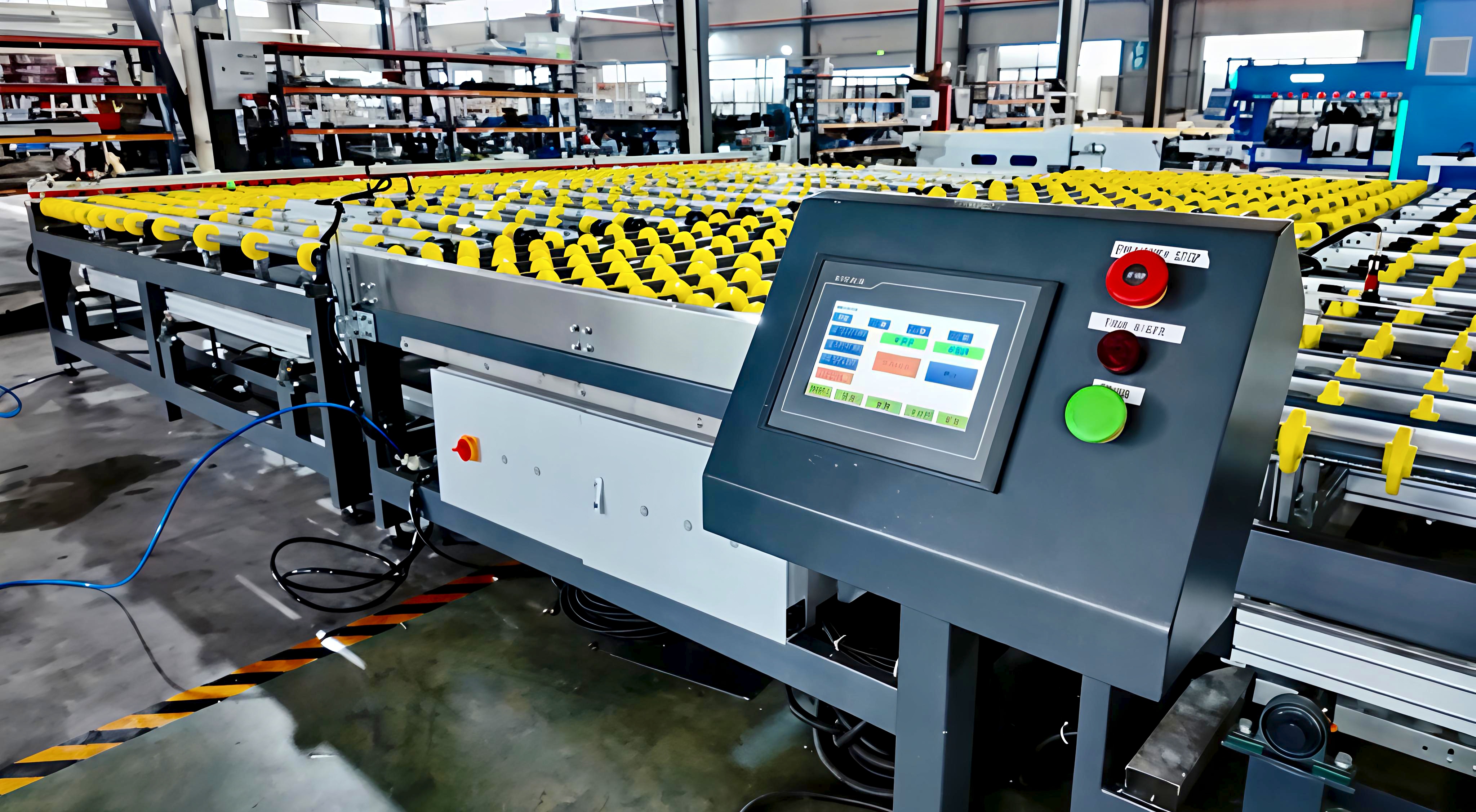

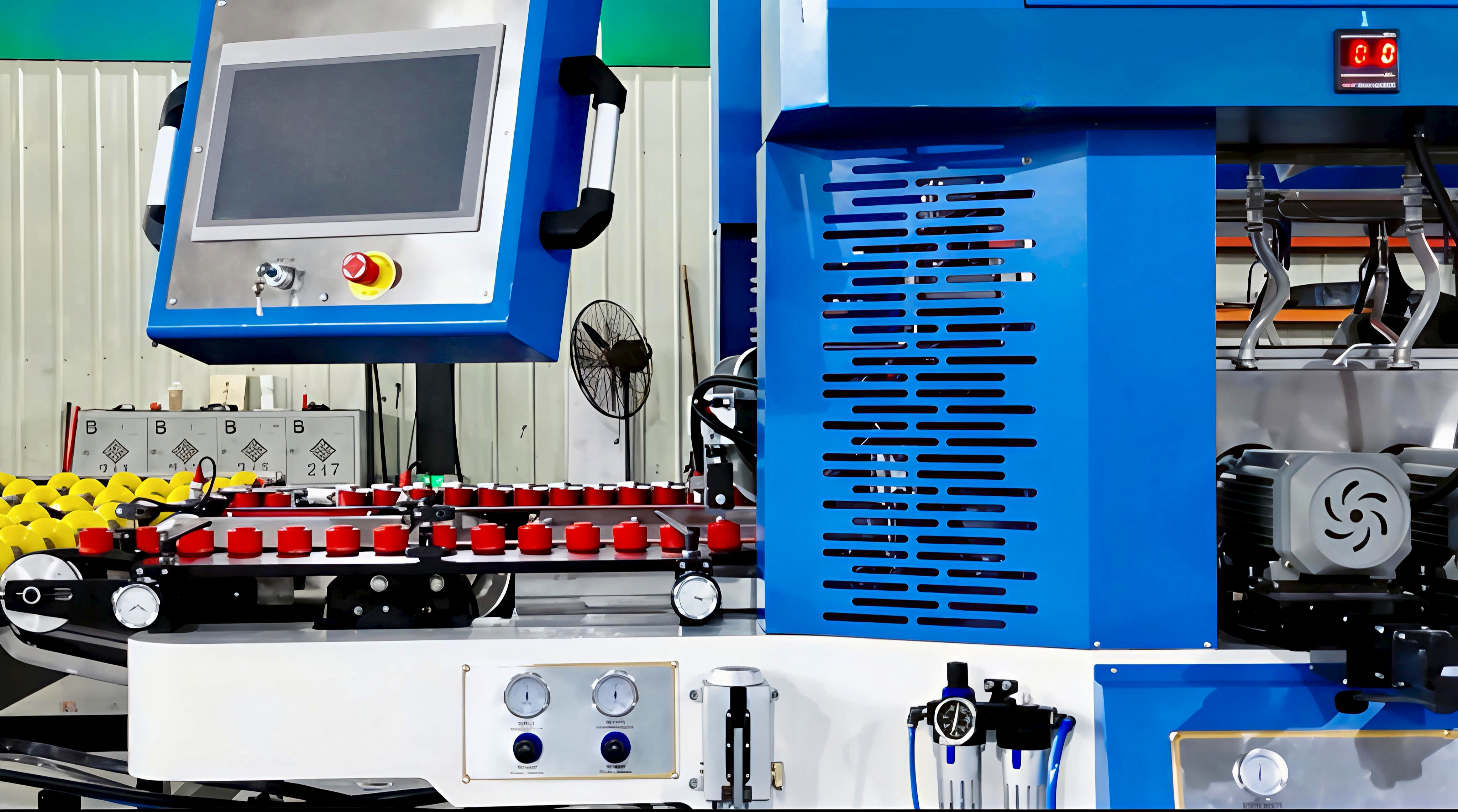

- User-friendly interface for quick setup and monitoring
Product Applications
- Architectural glass manufacturing
- Furniture glass production
- Automotive glass processing
- High-volume production environments

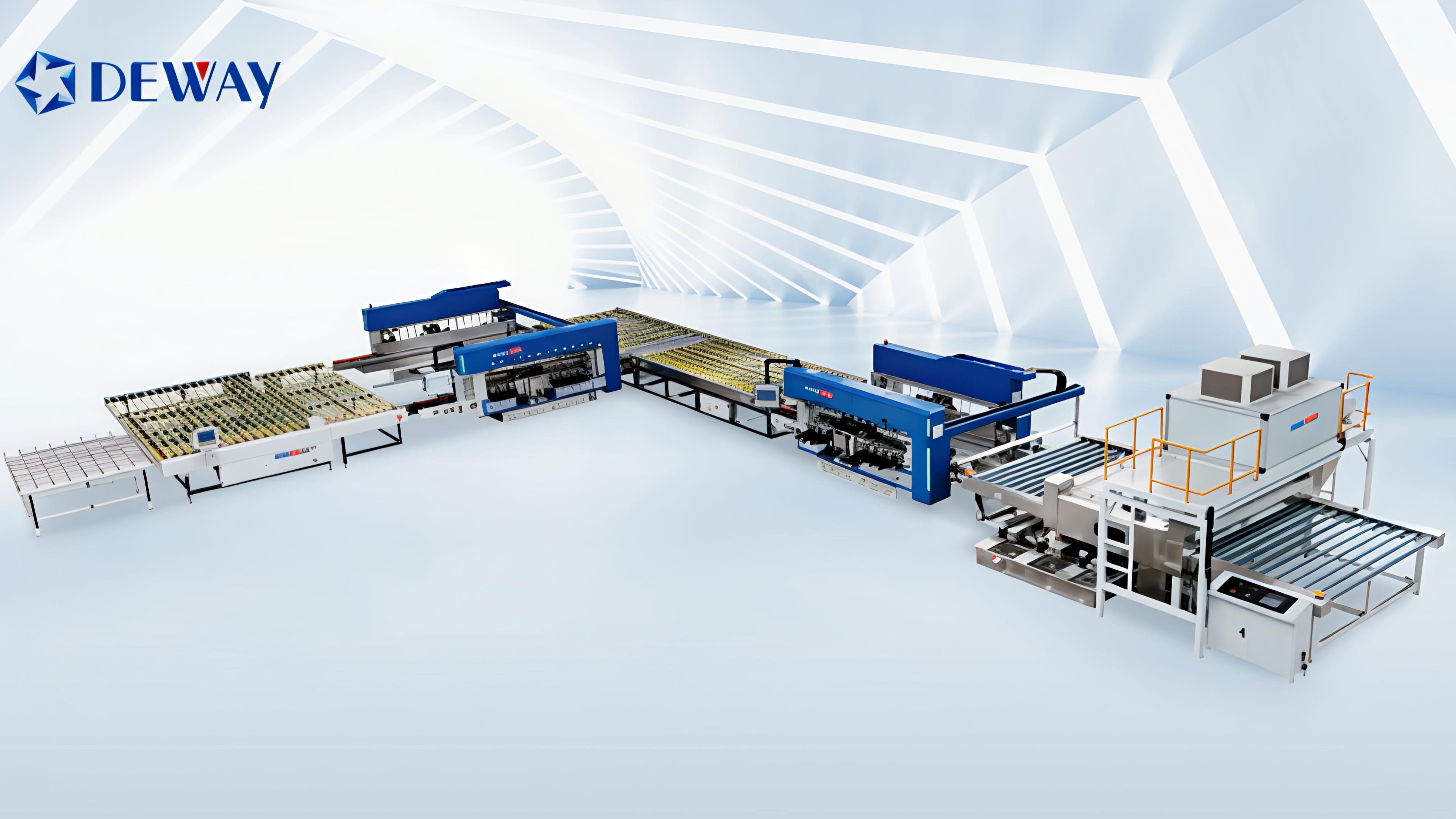

- Integrated Glass Double Sides Edging Processing Line configurations
Product Advantages
- Significant processing time reduction through dual-side operation
- Stringent industry-standard quality compliance
- Dramatically increased production throughput
- Seamless integration with existing processing equipment
- Minimal downtime due to reliable workflow synchronization
- Reduced learning curve for operational efficiency
- Long-term durability from high-quality construction
- Versatile handling of various glass types/thicknesses
- Consistent quality maintenance at high speeds
- High speed glass double edging line performance maximizing output
Operational Benefits
- Smooth workflow maintenance in production environments
- Consistent production schedule adherence
- Customer demand fulfillment reliability
- Competitive market positioning for glass facilities
- Overall manufacturing efficiency enhancement
This double edging machine delivers unparalleled double-sided glass processing performance through advanced technology integration, maintaining precision while optimizing productivity in industrial settings.
Technical data
| DSM2030 | |
| Power supply | 380V/ 50HZ |
| Min. Glass size | 350mm * 350mm |
| Max. size | 3000mm |
| Glass thickness | 3--25mm |
| Max. grinding amount for bottom | 3mm(single side) |
| Max. grinding amount for arris | 3mm |
| Transmit speed | 1-20m/min，best result: 1-10m/min, opening/ closing speed: 8m； |
| Air pressure | ≥0.6Mpa/0.6m3/Min |
| Wind volume | 1320m3/h |
| Water pump volume | 12m3/hX2 |
| Working table height | 900mm |

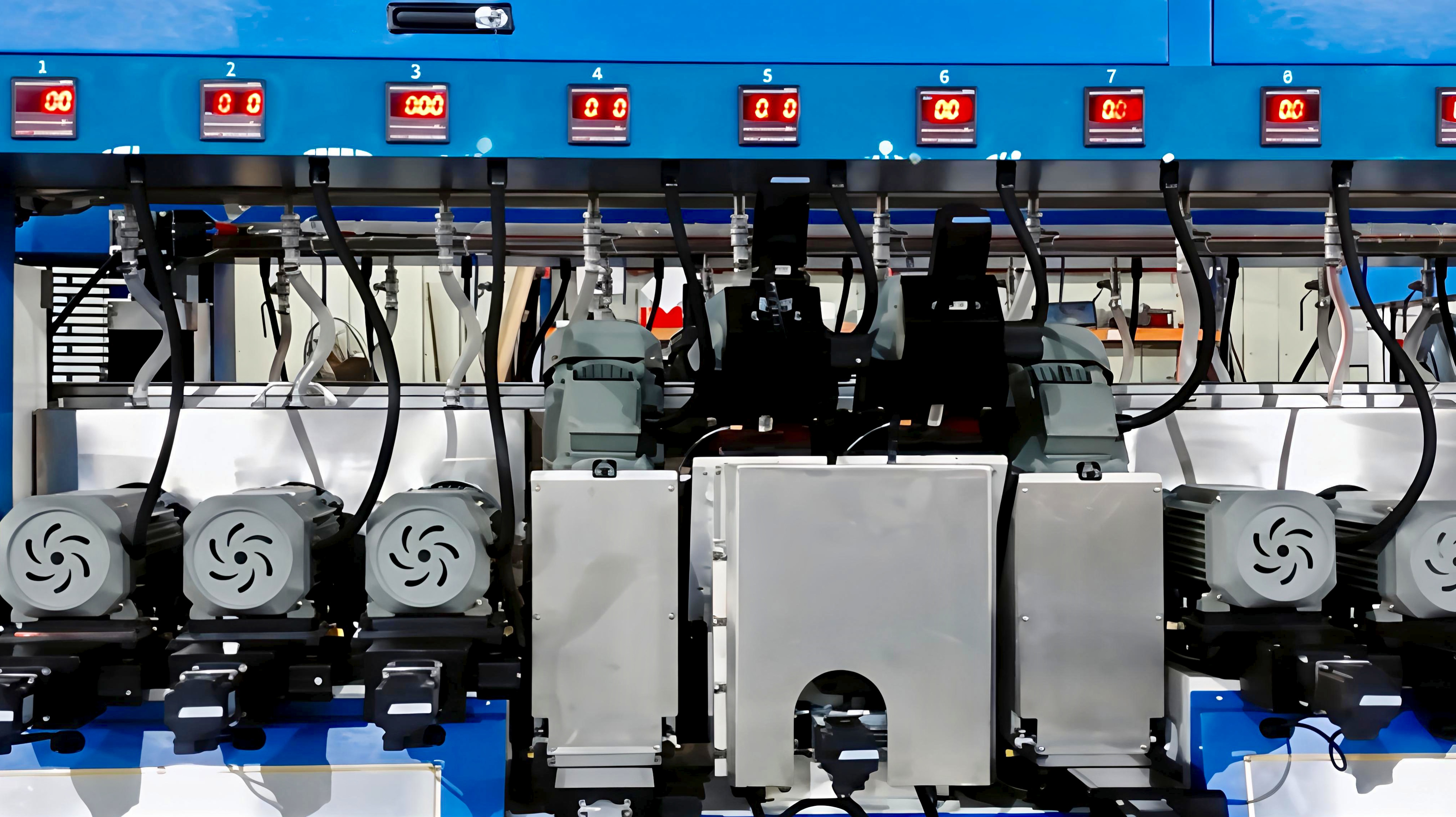

Wheel position with respect to the incoming sheet | ||||||||||
DSM20 | ||||||||||
Ref.no | No.10 | No.9 | No.8 | No.7 | No.6 | No.5 | No.4 | No.3 | No.2 | No.1 |
Power | 1.5kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 3.0kW | 3.0kW | 3.0kW |
Rev.(50Hz) | 1400 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2785 |
Name | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Resin wheel | Polishing wheel | Resin wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | Φ150 CE3 | Φ150 10S60 | Φ150 10S40 | Φ150 10S40 | Φ150 240 mush | Φ150 10S40 | Φ150 240 mush | Φ150 240 mush | Φ150 140mush | Φ175 100 mush |
Usage | Bottom polishing | Bottom polishing | Bottom polishing | Polishing for upper arris | Fine grinding for upper arris | Polishing for down arris | Fine grinding for down arris | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
