Brief Introduction

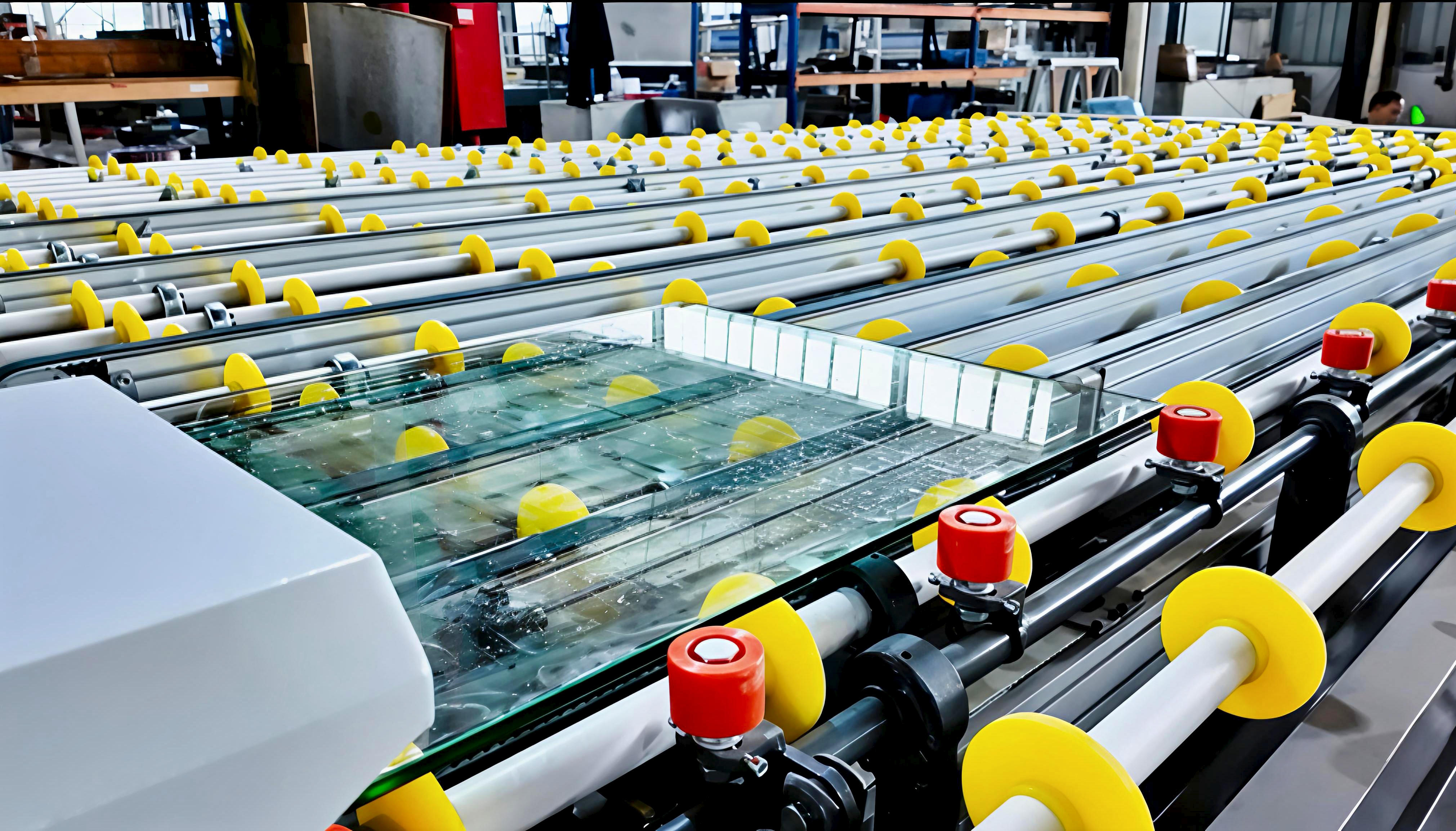

The DSM series of machines is designed for producing straight flat edges on glass sheets and mirrors. This processing utilizes cup diamond wheels for edging and polishing wheels for finishing. Operators manually load panels onto the input conveyor, which then feeds them into the edging unit. While operation is typically handled by a single person, occasional assistance is required during the loading and unloading phases. Crucially, any glass sheet exceeding a weight of 30kg mandates the use of lifting equipment to ensure safe handling.
Product Introduction

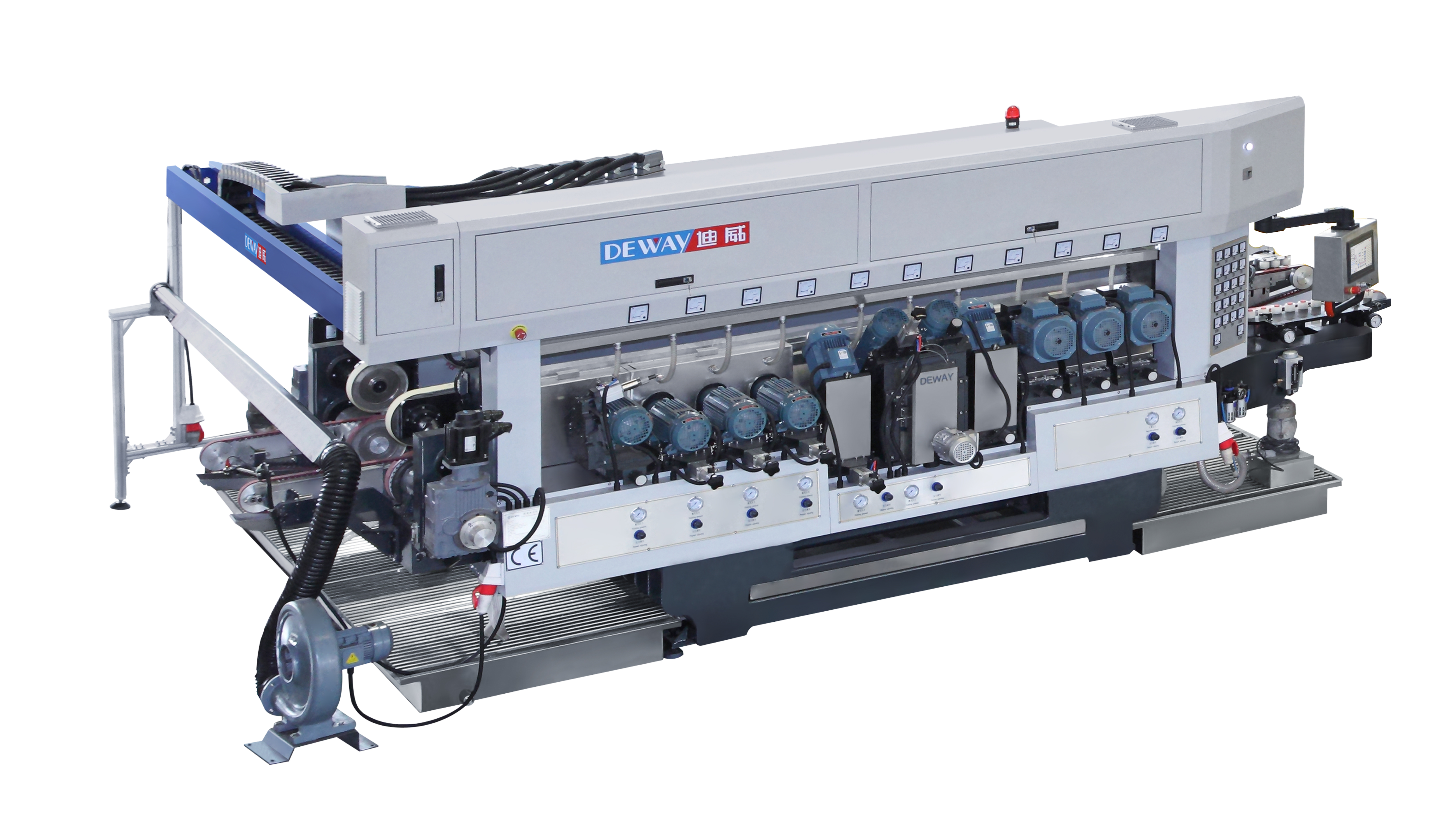

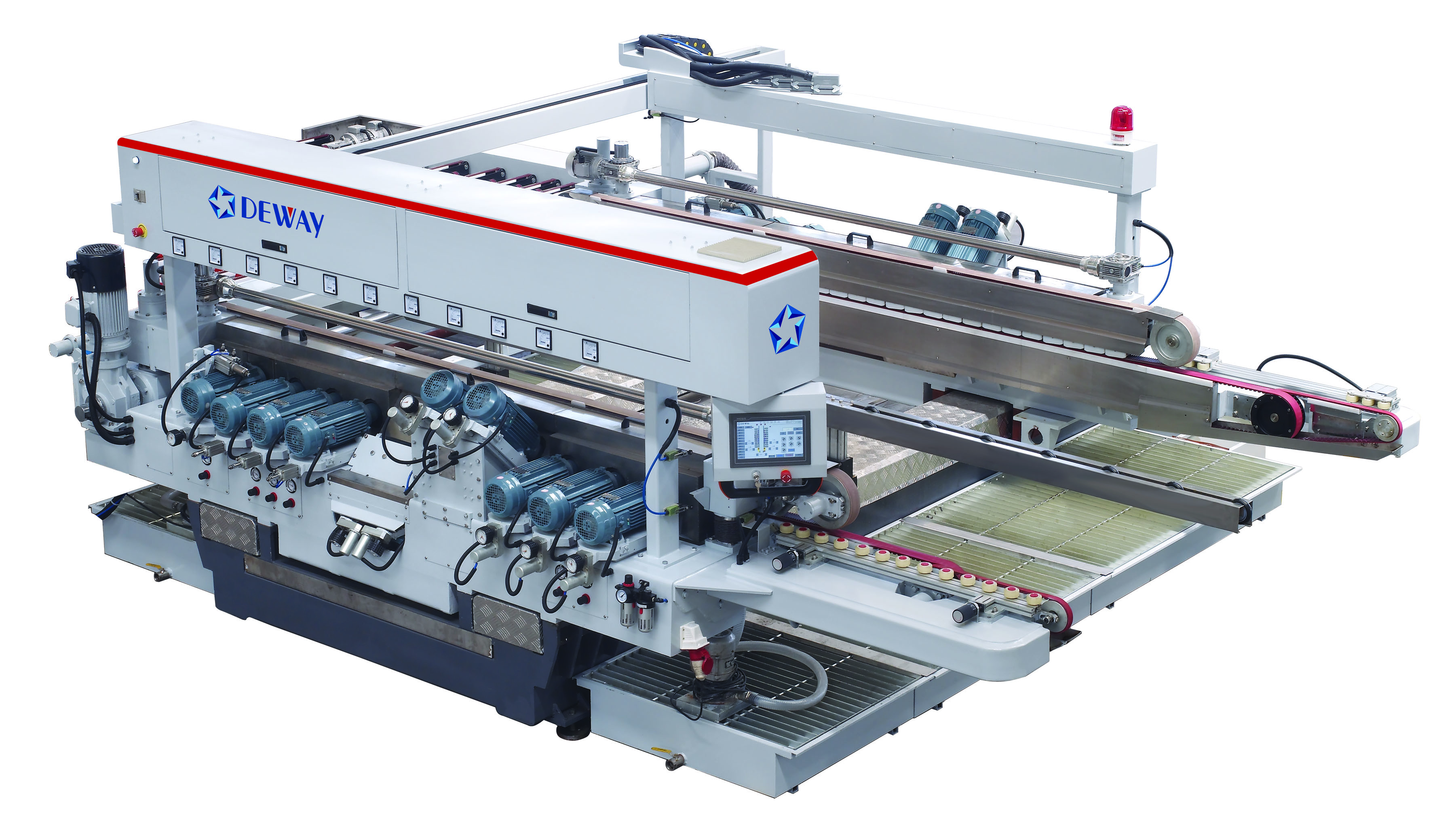

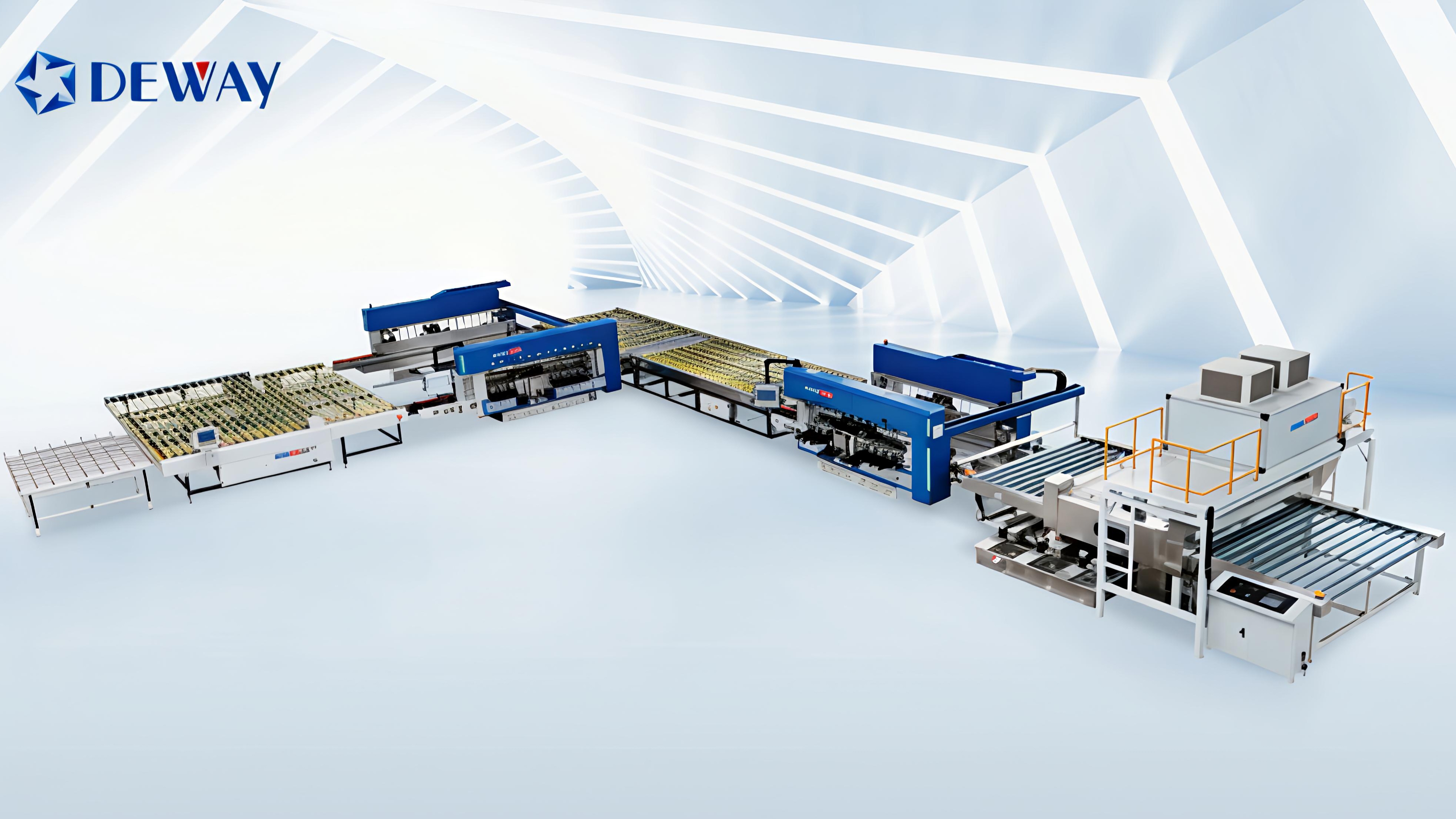

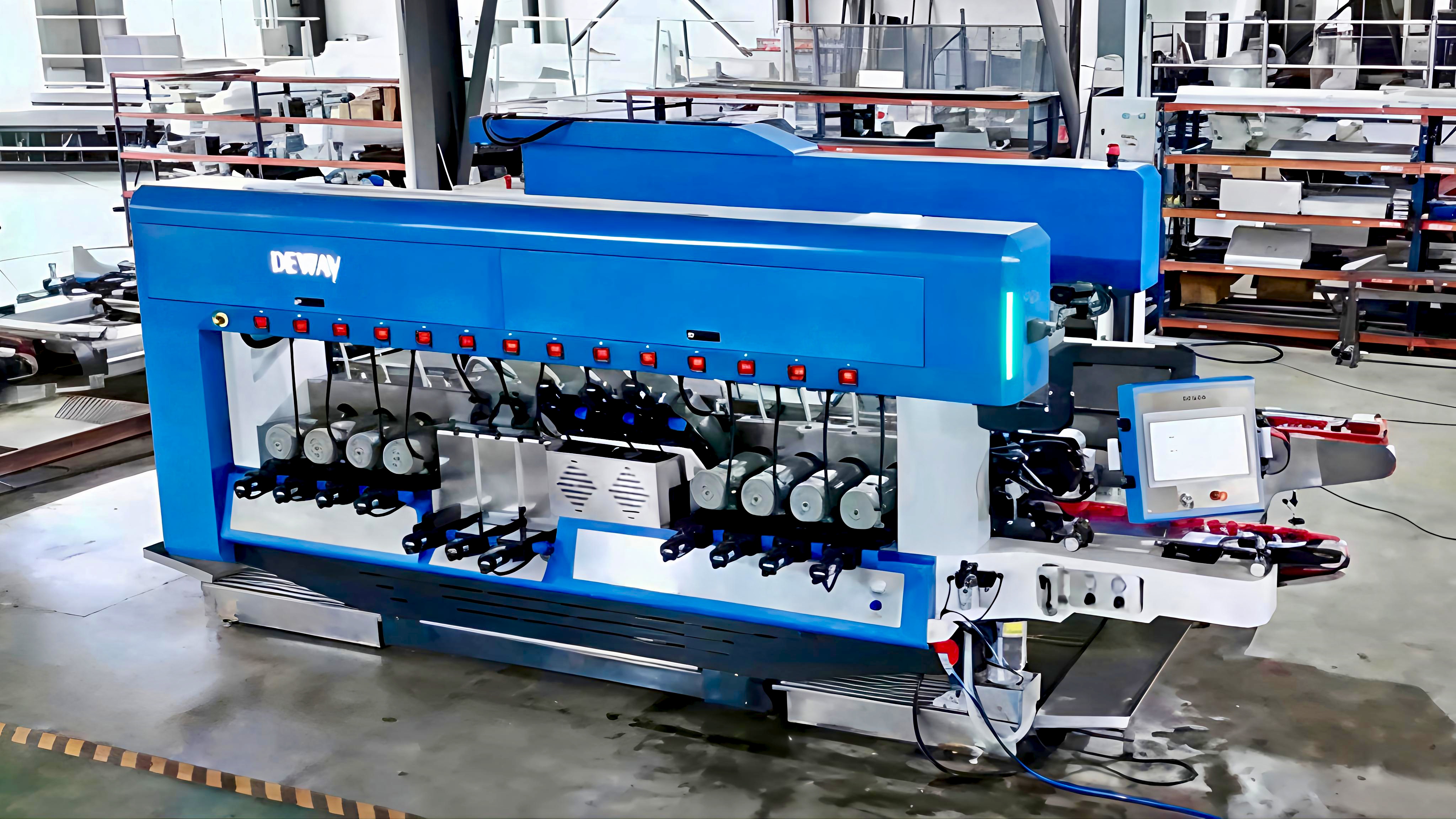

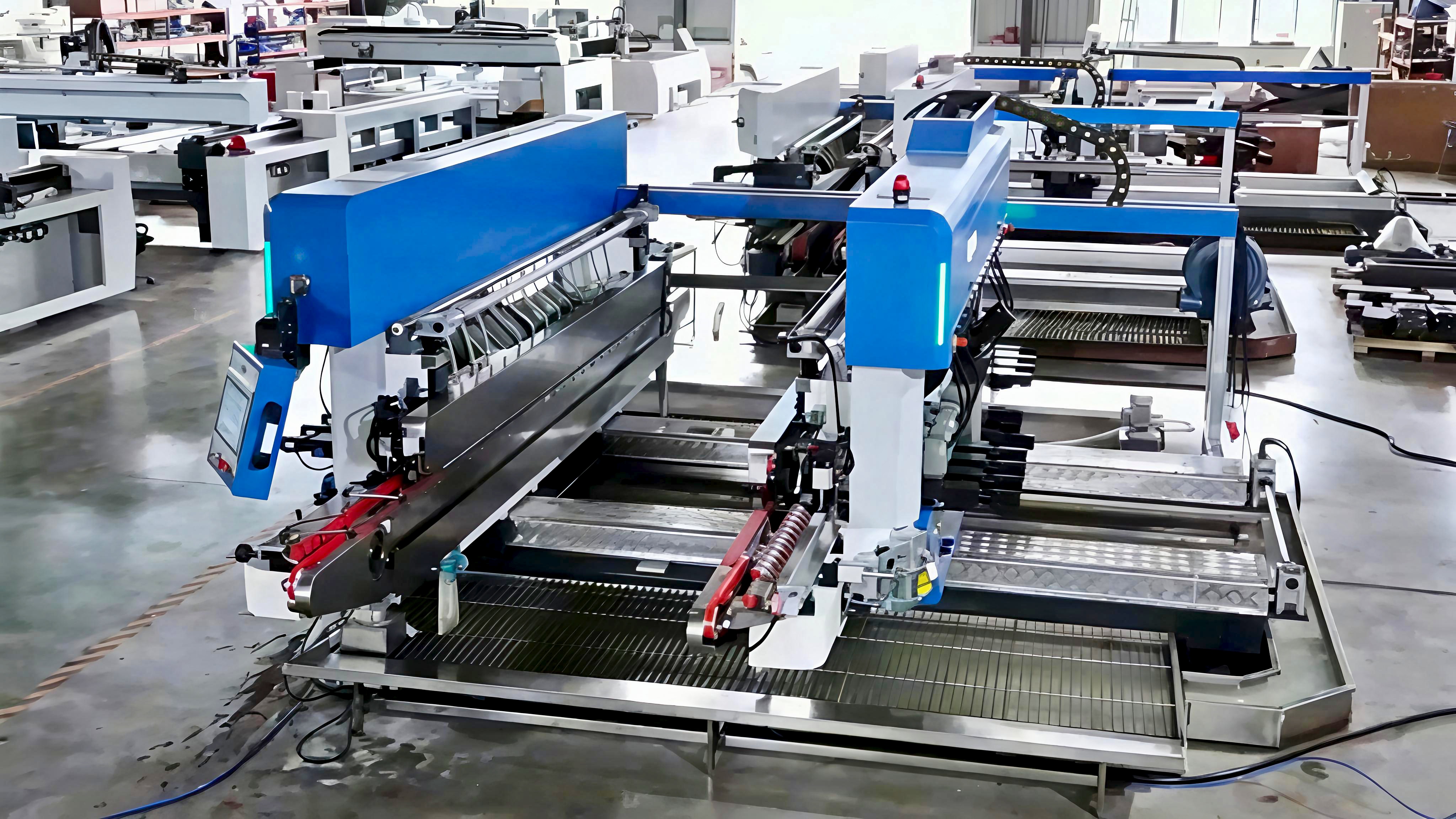

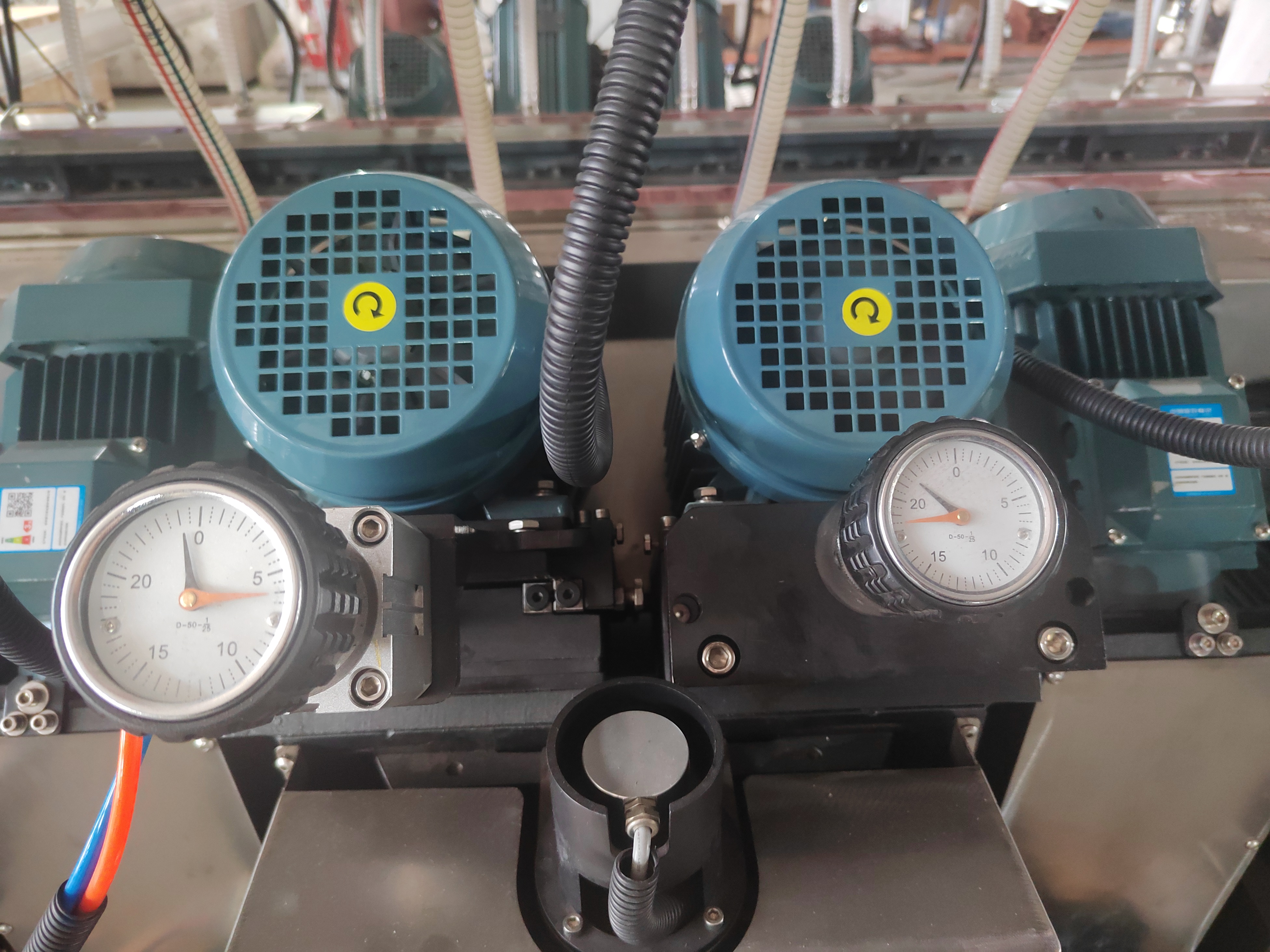

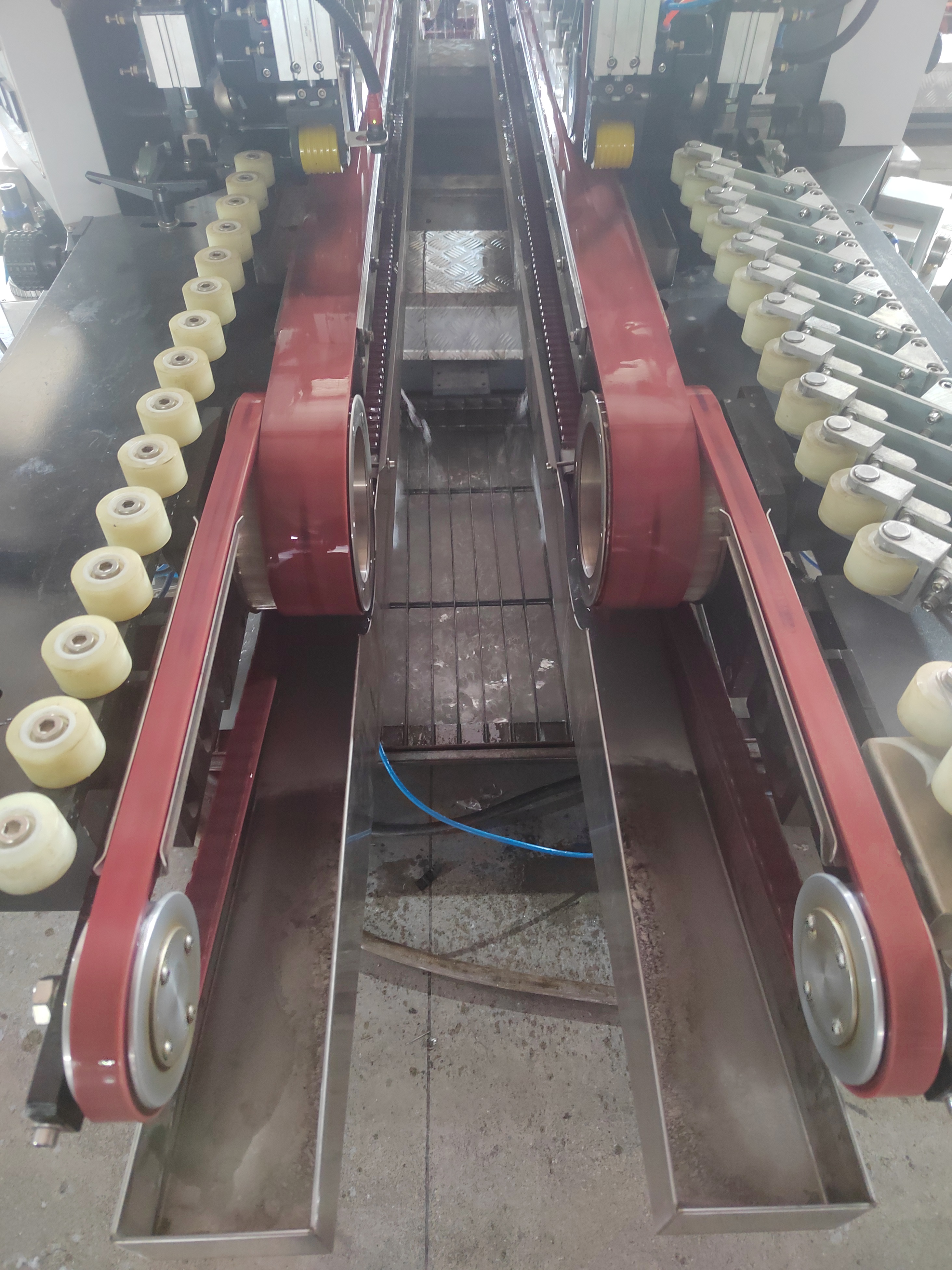

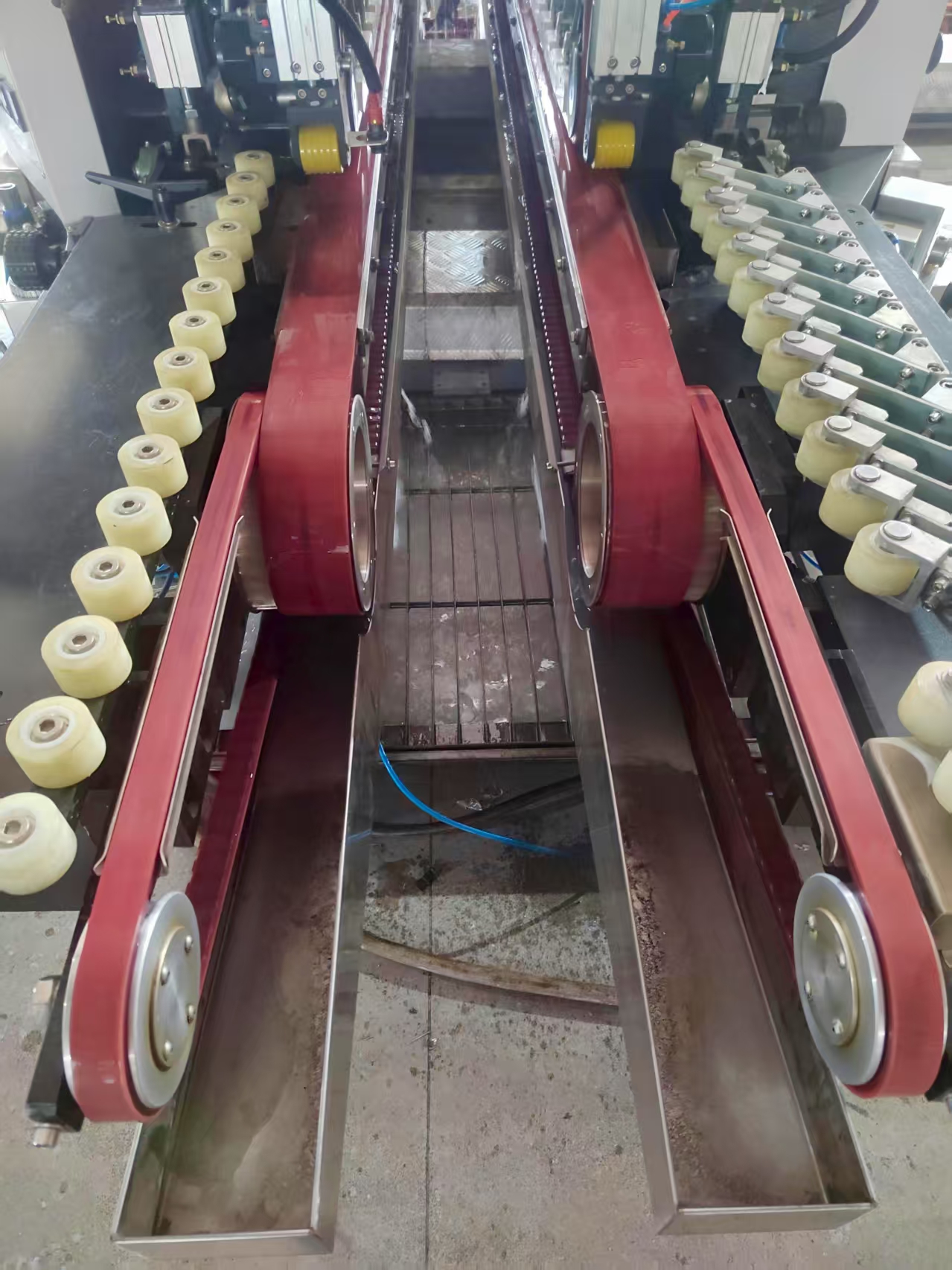

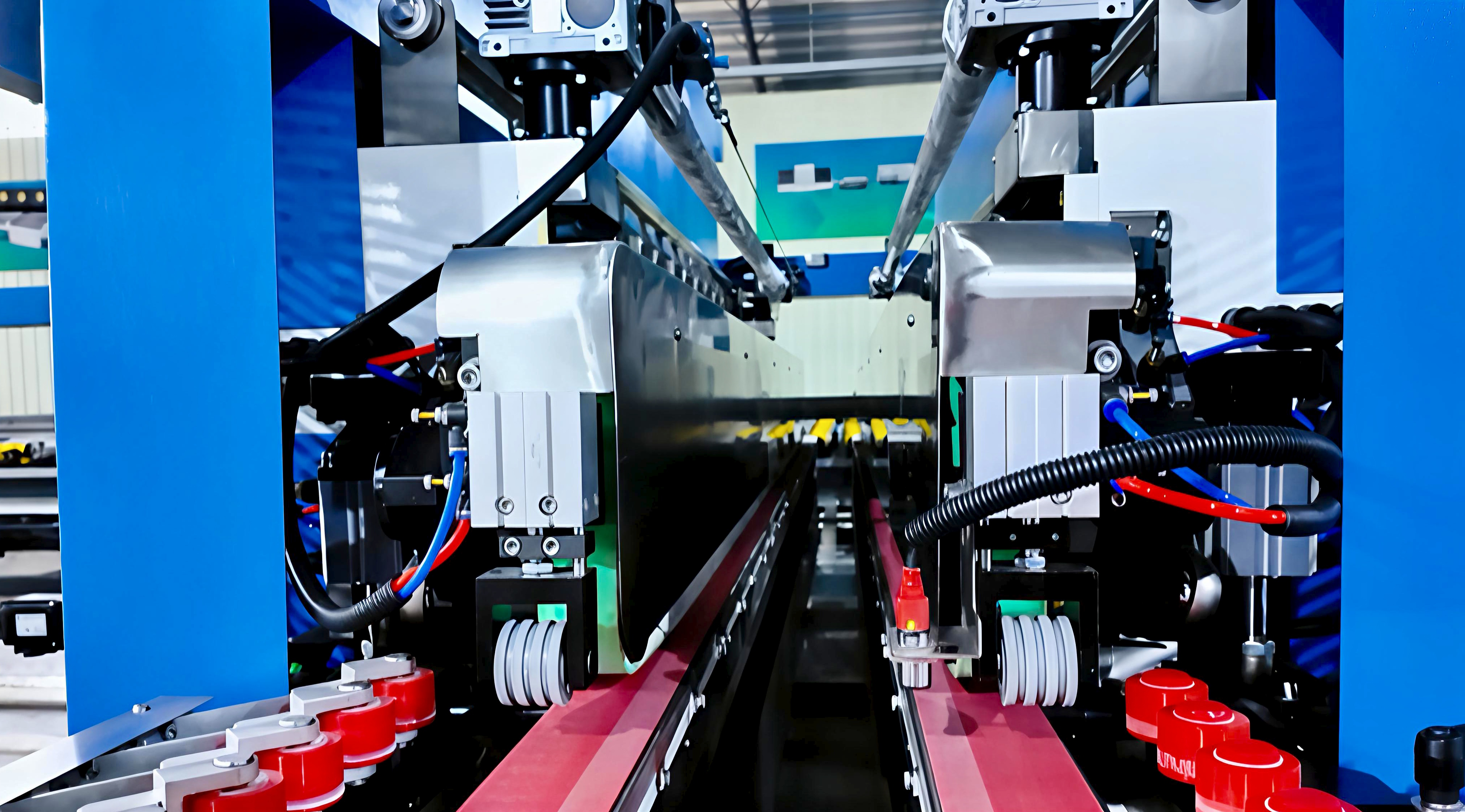

The DSM2050 Automatic glass double edging machine (20 Wheels, 5000mm) delivers industrial-scale precision. As a complete Glass Double Edging Processing Machine for 5meters, it integrates seamlessly into high-volume environments.
Product Features
- 20-wheel automated grinding/polishing system
- 5000mm mega-format capacity
- ±0.05mm edge consistency

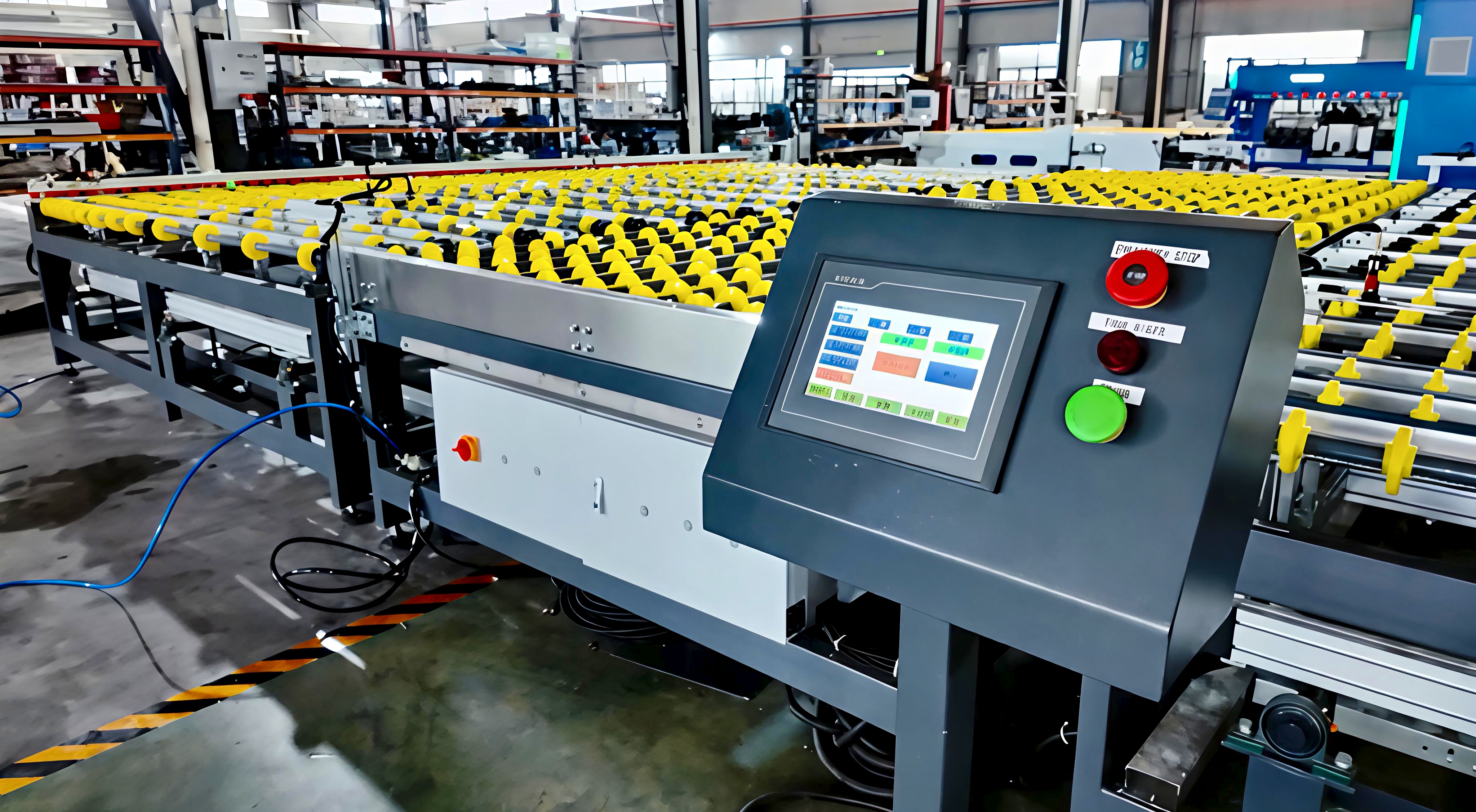

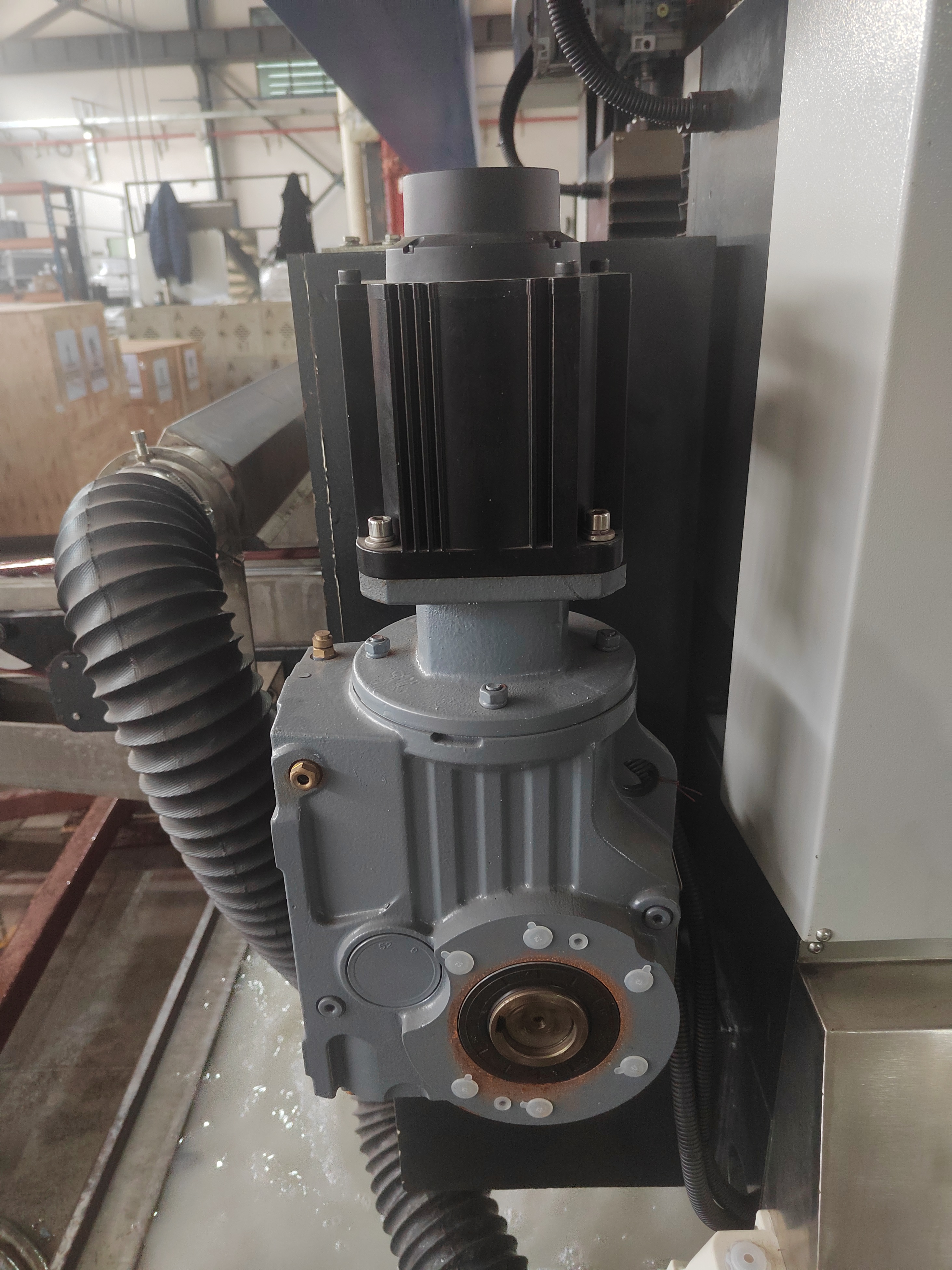

- Glass Double Edging Machine Processing Line integration
- Reinforced steel continuous-operation construction
- Touchscreen HMI with recipe storage
Product Applications
- Jumbo architectural façades
- Automotive windshields/sunroofs
- Specialty glass products
- High-volume manufacturing
- Integrated processing lines
Product Advantages
- 60% labor reduction through full automation
- Consistent precision across 5m panels
- 99% uptime as core double edger machine
- High speed glass double edger operation (24m/min, 200 panels/hr @10mm)
- 35% higher output via 40-edge processing
- 22% material conservation
- 30% lower energy consumption
- 4-40mm thickness handling
Identification data
Machine: Glass Double edging machine
Model: DSM20
Voltage and Frequency: 380V, 50Hz
Total power: 46Kw
Workable thickness: 3~19mm
Weight: 7000kg
Serial no.:
Product date: 2020
Technical data
- Power supply： 380V/ 50HZ
- Min. Glass size：350mm * 350mm
- Max. size：5000mm
- Glass thickness：3--25mm
- Max. grinding amount for bottom：3mm(single side)
- Max. grinding amount for arris：3mm
- Transmit speed：1-20m/min，best result: 1-10m/min, opening/ closing speed: 8m；
- Air pressure：≥0.6Mpa/0.6m3/Min
- Wind volume：1320m3/h
- Water pump volume：12m3/hX2
- Working table height： 900mm
Wheel position with respect to the incoming sheet | ||||||||||
DSM20 | ||||||||||
Ref.no | No.10 | No.9 | No.8 | No.7 | No.6 | No.5 | No.4 | No.3 | No.2 | No.1 |
Power | 1.5kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 3.0kW | 3.0kW | 3.0kW |
Rev.(50Hz) | 1400 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2785 |
Name | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Resin wheel | Polishing wheel | Resin wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | Φ150 CE3 | Φ150 10S60 | Φ150 10S40 | Φ150 10S40 | Φ150 240 mush | Φ150 10S40 | Φ150 240 mush | Φ150 240 mush | Φ150 140mush | Φ175 100 mush |
Usage | Bottom polishing | Bottom polishing | Bottom polishing | Polishing for upper arris | Fine grinding for upper arris | Polishing for down arris | Fine grinding for down arris | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
