Brief introduction
The "DSM" model machines are straight Edging machines, for flat edge working of glass sheets and mirrors. The processing is performed by a series of cup diamond and polishing wheels.

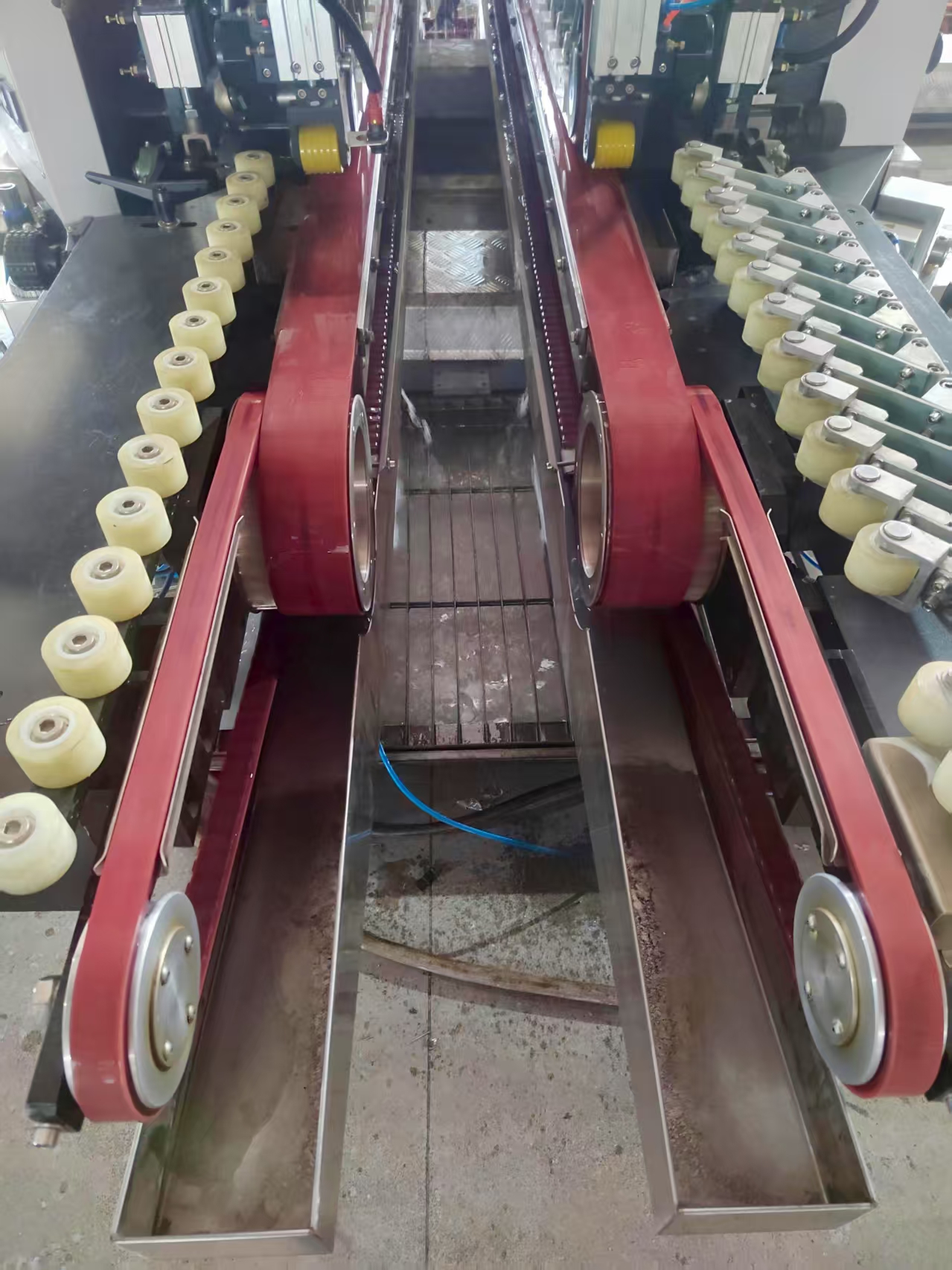

The sheet is loaded by hand on the input conveyor, which moves it inside the edging unit. Each machine can be operated by one operator only, assisted if necessary by another person during the sheet loading and unloading. For handling large and heavy sheets exceeding 30 kg, a suitable lifting equipment should be used.
Product Introduction

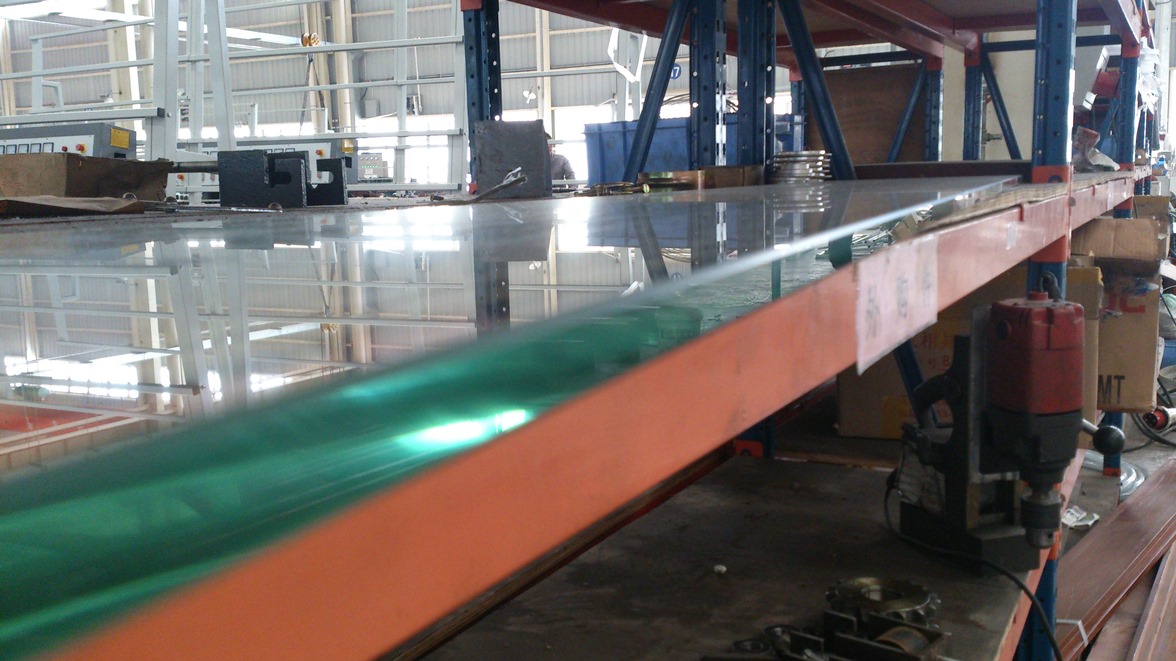

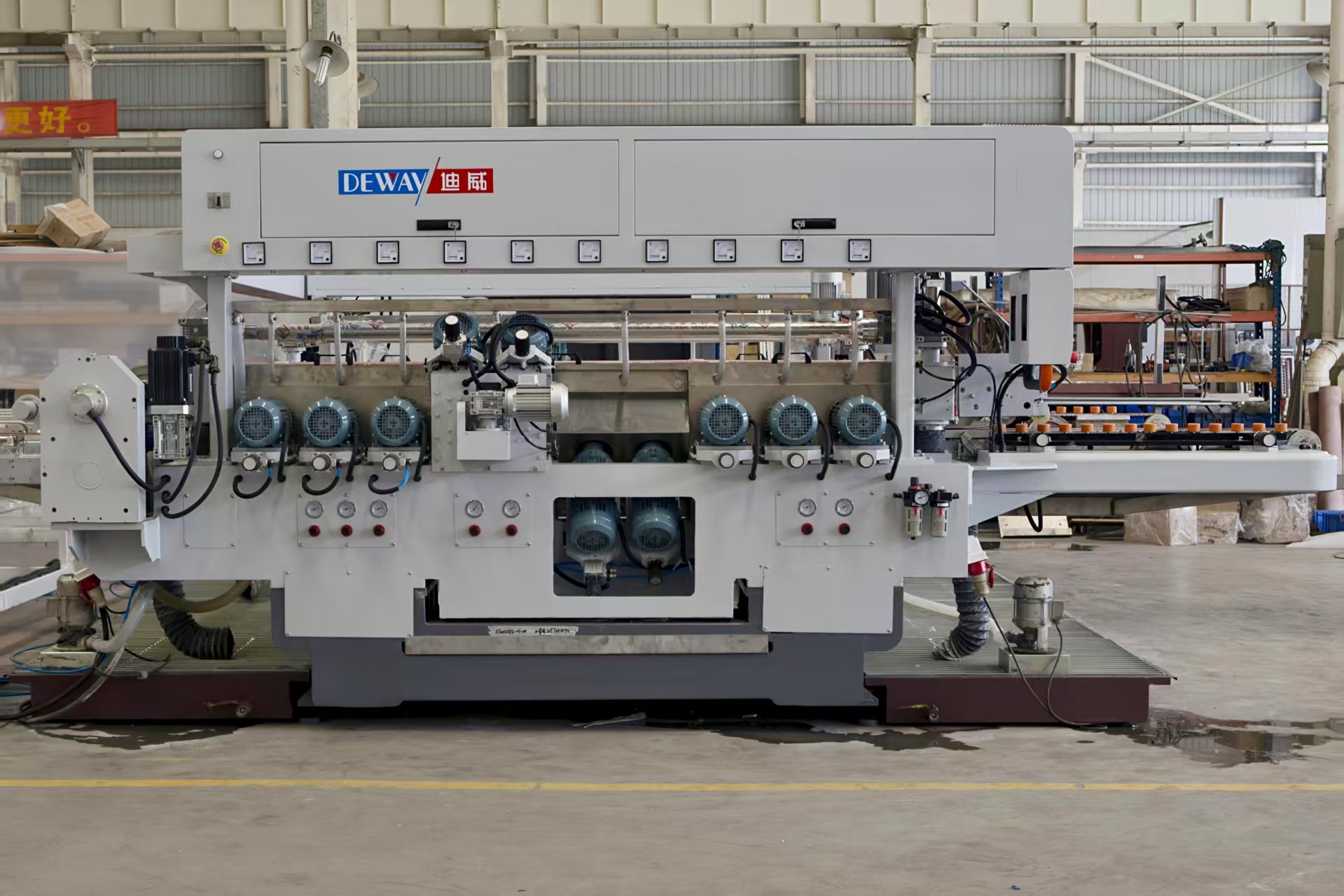

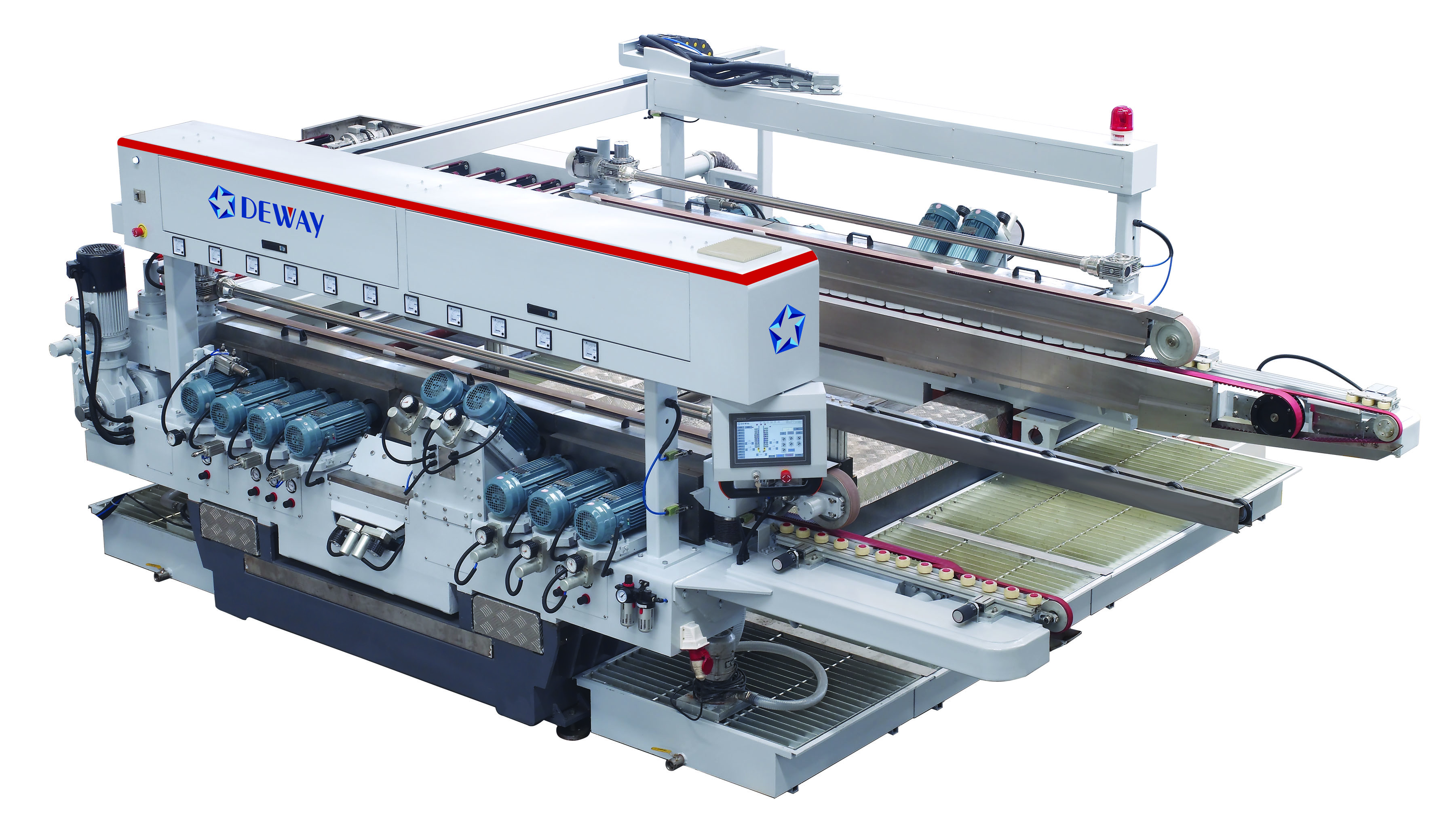

The DSM2025 Glass Double Edging Machine (20 Wheels, 2500mm) is a high-performance glass double edging processing machine for 2.5meters, engineered for large-scale architectural and decorative glass production. Designed as a complete glass double edging processing line solution, it delivers precision edge finishing for panels up to 2500mm wide.

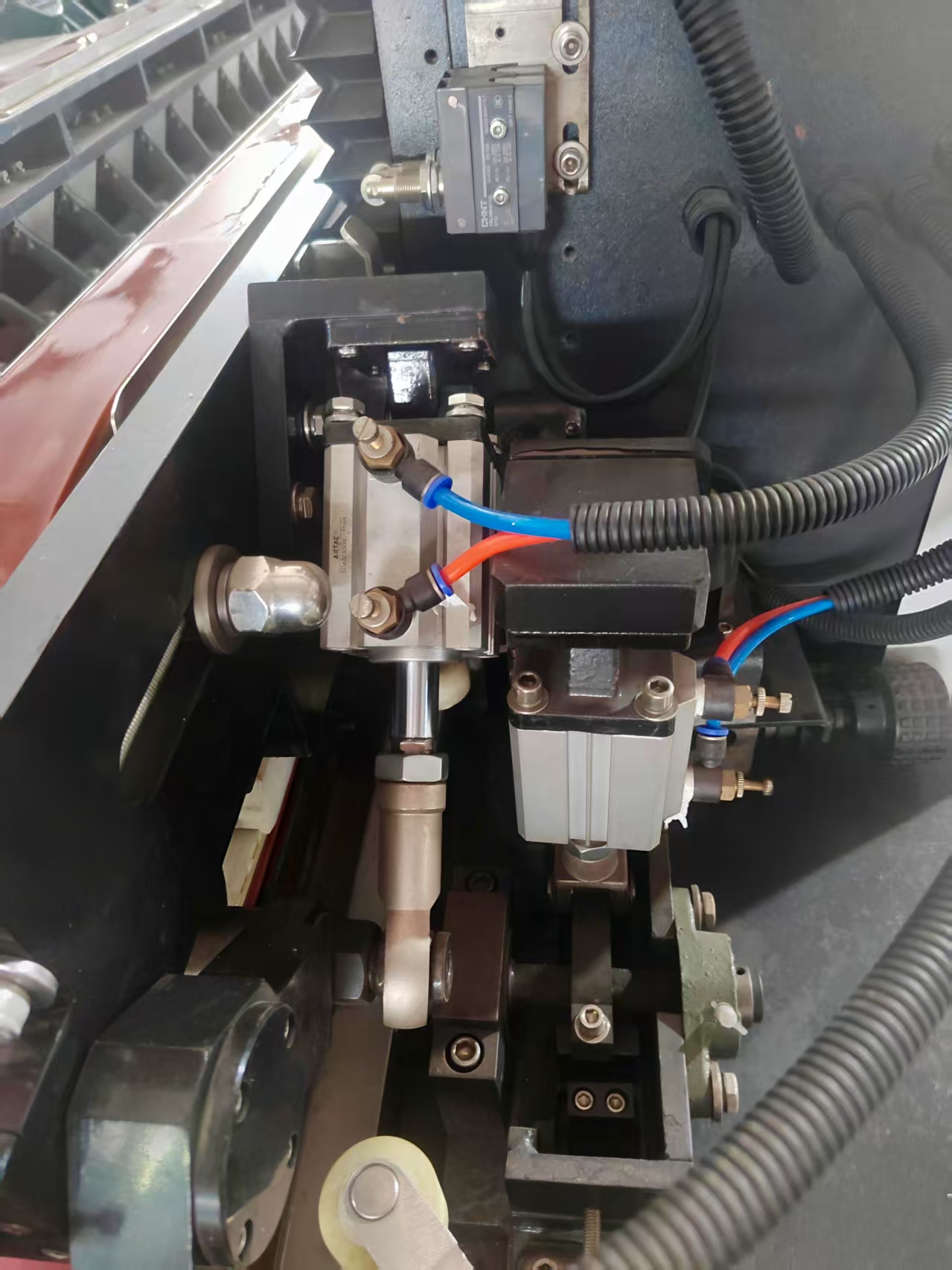

Product Features
- 20-Wheel Configuration: Simultaneous dual-edge grinding/polishing
- Large-Format Capacity: Processes 2500mm wide glass panels
- Double Edging Line Machine Integration: Seamless connection with upstream/downstream equipment
- Industrial-Grade Construction: Heavy-duty frame for continuous operation
- High-Speed Processing: Maintains precision at production line speeds

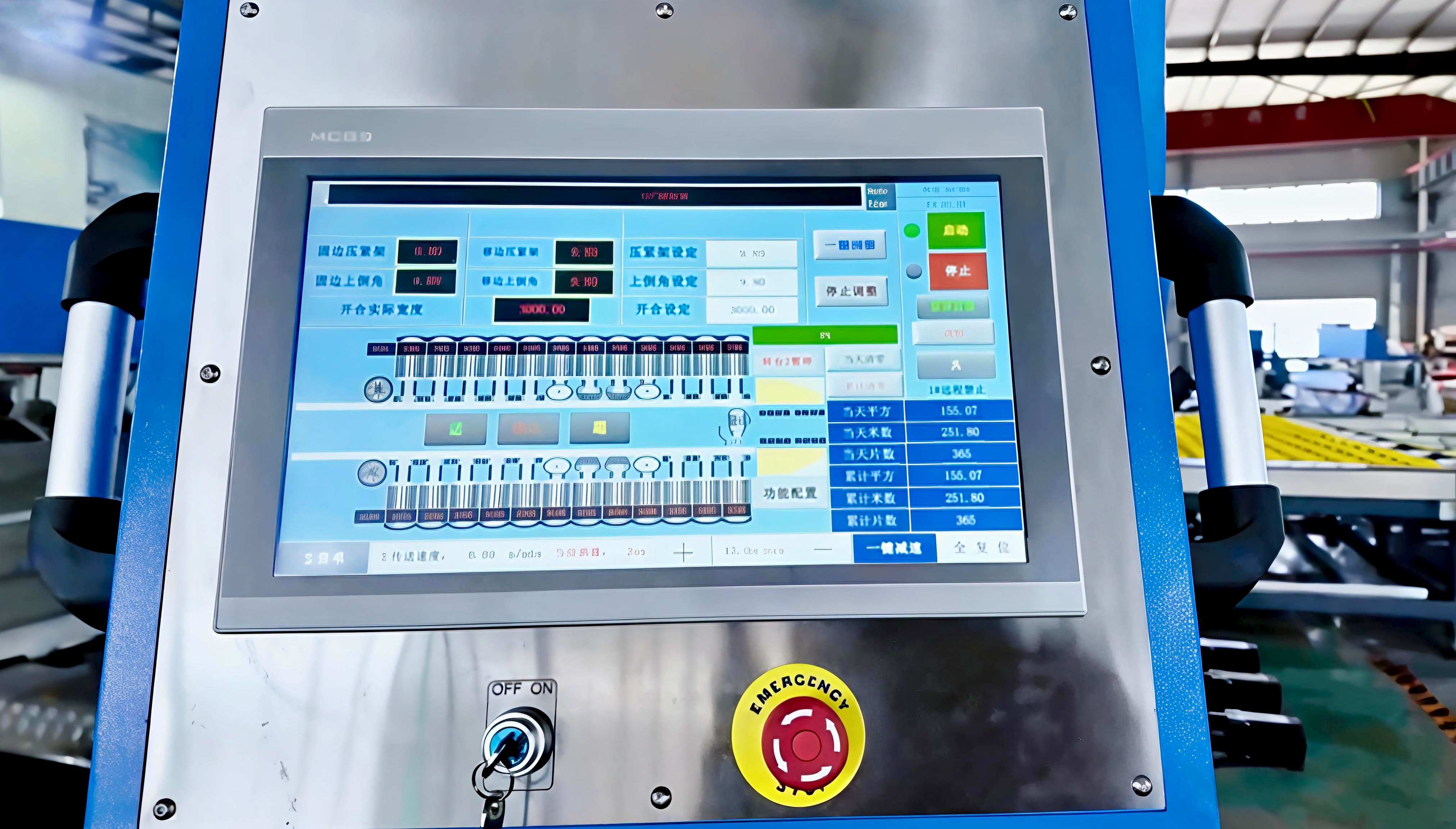

- Automated Controls: Minimal operator intervention required
Product Applications
- Architectural glass facades & partitions
- Decorative glass panels
- High-volume production environments
- Integrated glass processing lines
Product Advantages
- Dual-Edge Efficiency: Processes both edges simultaneously as a true glass double edging machine, doubling output vs single-edge systems
- Large-Panel Expertise: Uncompromised precision on 2.5m panels with the glass double edging processing machine for 2.5meters

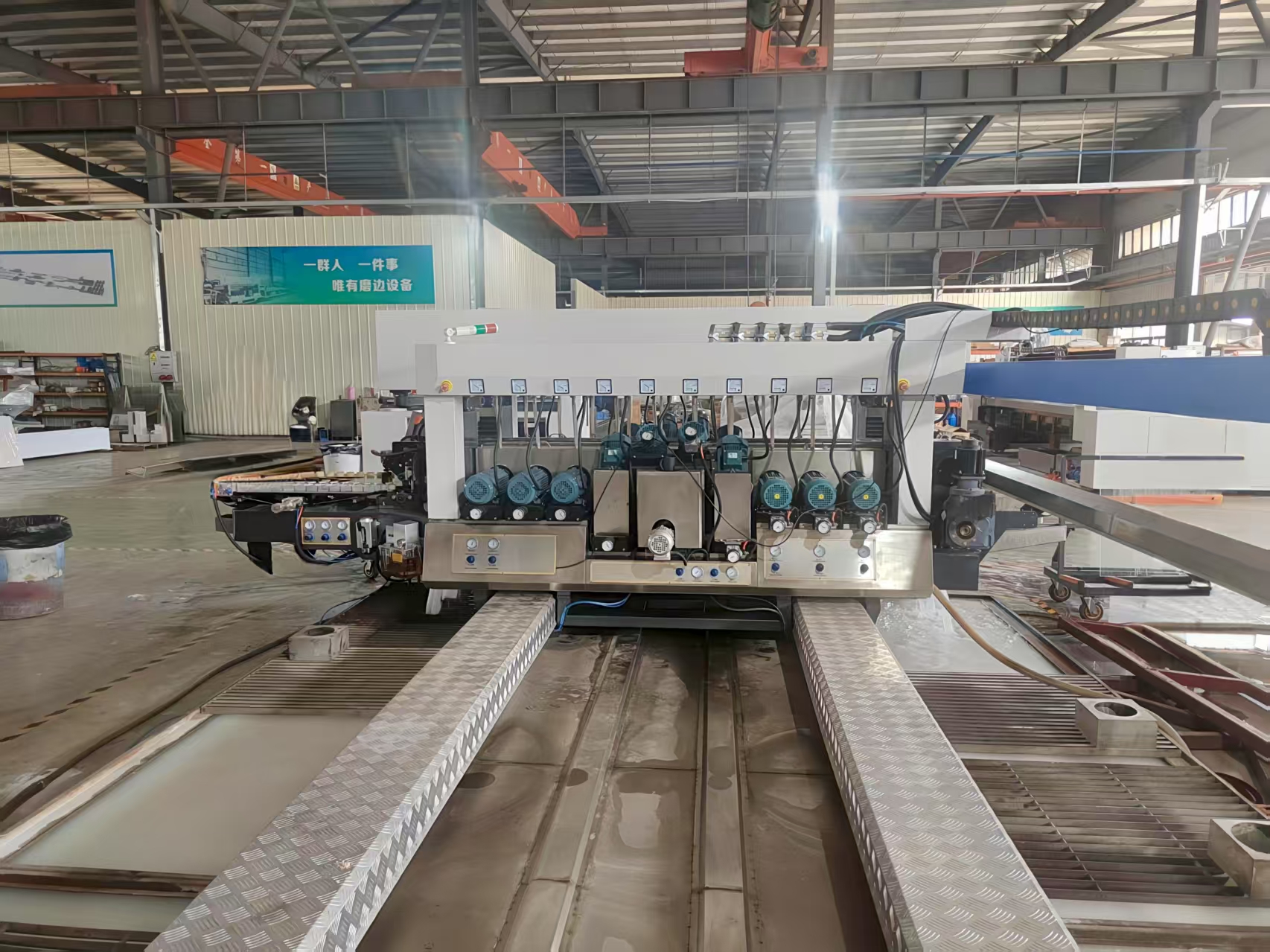

- Line Synchronization: Functions as core double edging line machine in automated production cells
- Speed-Quality Balance: Operates as a high speed glass double edging machine while maintaining ≤0.1mm edge consistency
- 30% Higher Throughput: 20-wheel system processes 120 panels/hour (12mm glass)
- Reduced Downtime: Robust construction ensures 95% operational uptime

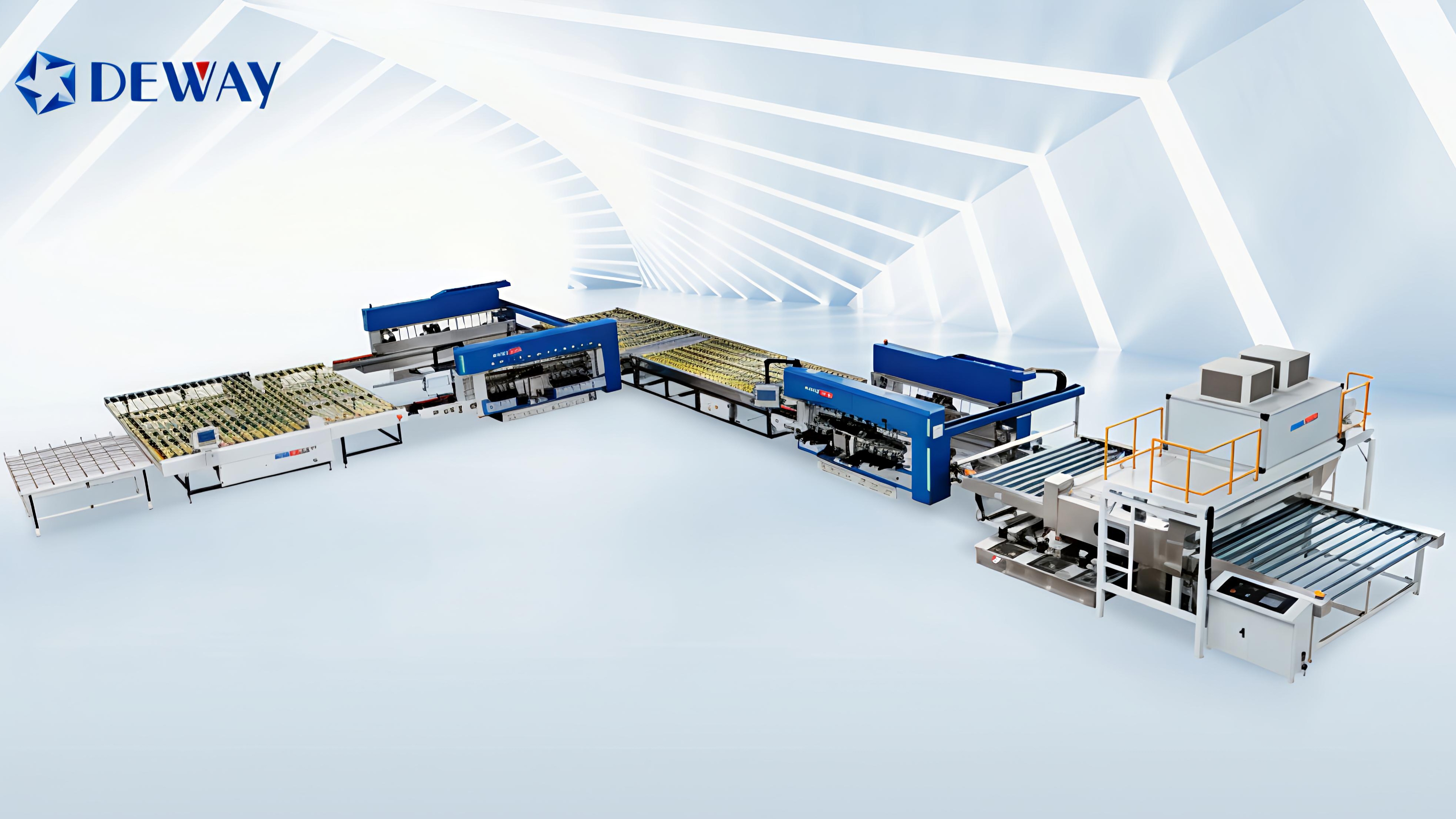

- Space Optimization: Integrated glass double edging processing line functionality eliminates separate transfer systems
This high speed glass double edging machine achieves ROI within 18 months for high-volume manufacturers, delivering mirror-finish edges (Ra≤0.05μm) while reducing per-panel energy consumption by 22% versus conventional systems.
Identification data
Machine: Glass Double edging machine
Model: DSM20
Voltage and Frequency: 380V, 50Hz
Total power: 46Kw
Workable thickness: 3~19mm
Weight: 7000kg
Serial no.:
Product date: 2020

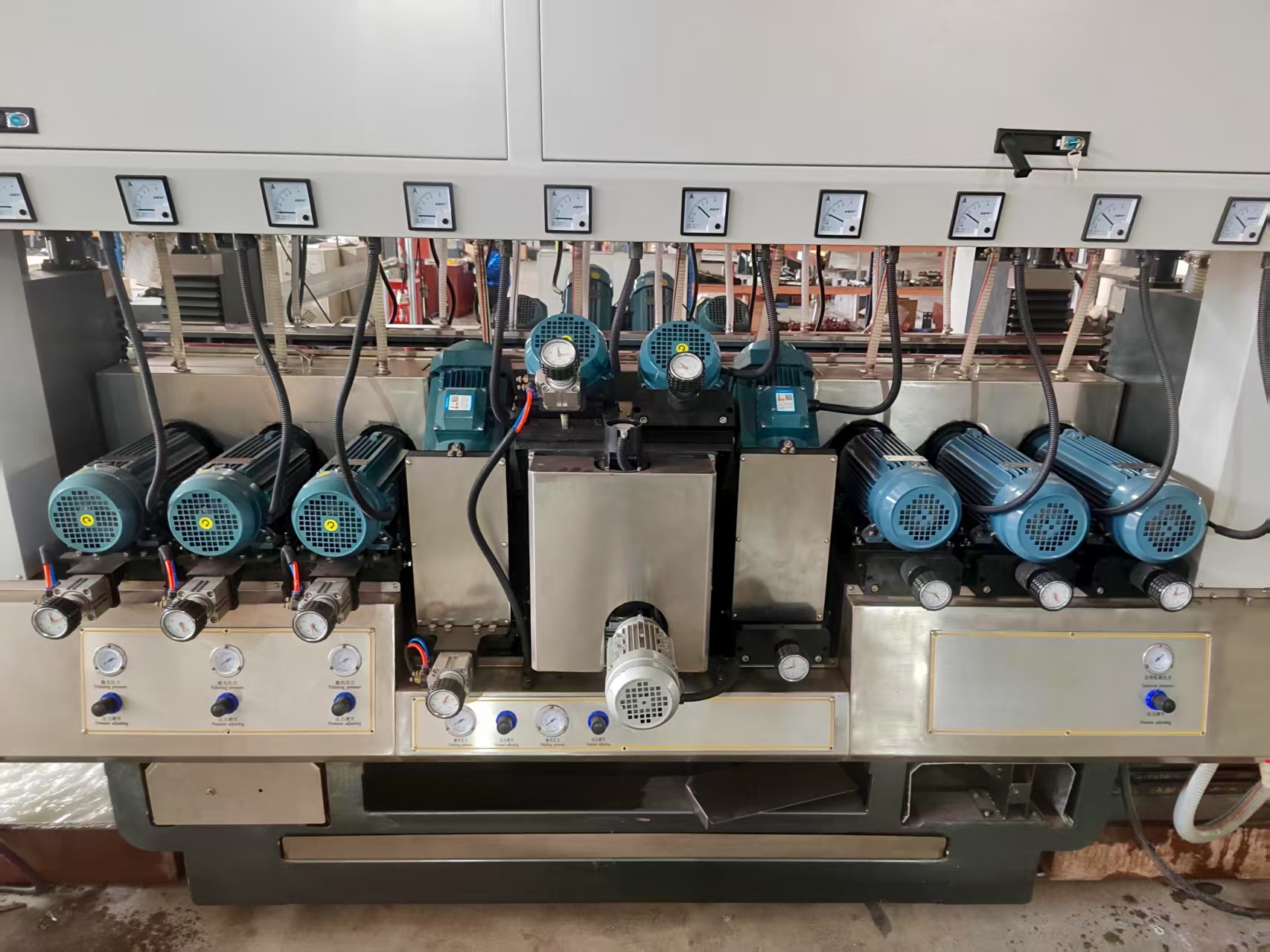

Wheel position with respect to the incoming sheet | ||||||||||
DSM20 | ||||||||||
Ref.no | No.10 | No.9 | No.8 | No.7 | No.6 | No.5 | No.4 | No.3 | No.2 | No.1 |
Power | 1.5kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 3.0kW |
Rev.(50Hz) | 1400 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2785 |
Name | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Resin wheel | Polishing wheel | Resin wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | Φ150 CE3 | Φ150 10S60 | Φ150 10S40 | Φ150 10S40 | Φ150 240 mush | Φ150 10S40 | Φ150 240 mush | Φ150 240 mush | Φ150 140mush | Φ175 100 mush |
Usage | Bottom polishing | Bottom polishing | Bottom polishing | Polishing for upper arris | Fine grinding for upper arris | Polishing for down arris | Fine grinding for down arris | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
Technical data
Data | DSM20 | DSM22 |
Wheels amount | 20 | 22 |
Transmit Speed （m/min） | 1～8 | |
Glass thickness (mm) | 3～25 | |
Glass width (mm) | 300～5000 | |
Parallel tolerance (mm) | ≤0.2/1m≤0.3/2m | |
Diagonal tolerance (mm) | ≤0.5/1m | |
Install power（kW） | 46 | 50 |
Voltage （V） | 380V/50Hz | |
Compressed air（Mpa） | 0.6 -0.8 | |
Noise （dB） | ≤80 | |
Weight （Kg） | 7000 | 7300 |
