Brief Introduction
The "DSM" model machines are straight Edging machines, for flat edge working of glass sheets and mirrors. The processing is performed by a series of cup diamond and polishing wheels. The sheet is loaded by hand on the input conveyor, which moves it inside the edging unit. Each machine can be operated by one operator only, assisted if necessary by another person during the sheet loading and unloading. For handling large and heavy sheets exceeding 30 kg), a suitable lifting equipment should be used.
Product Introduction

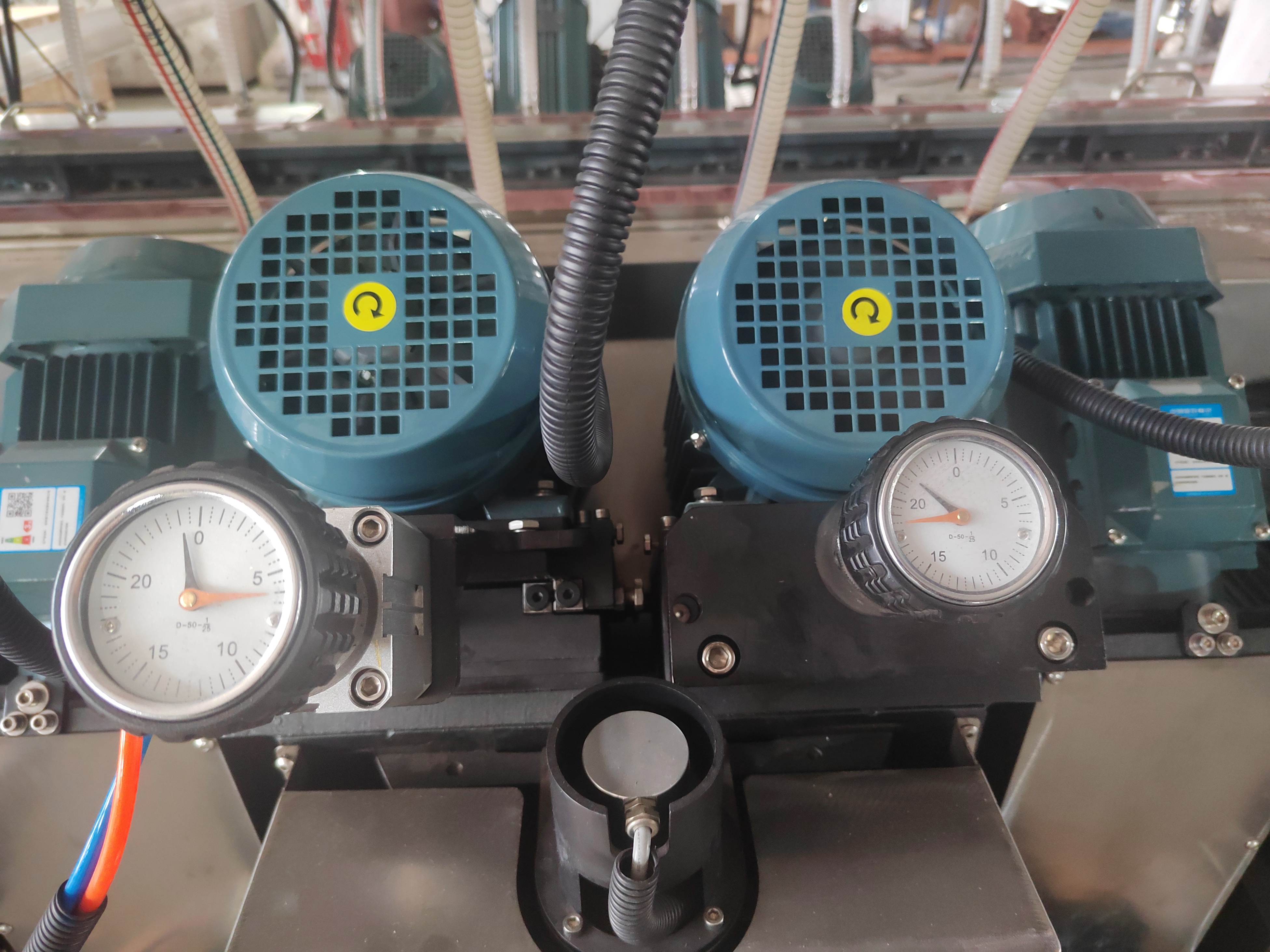

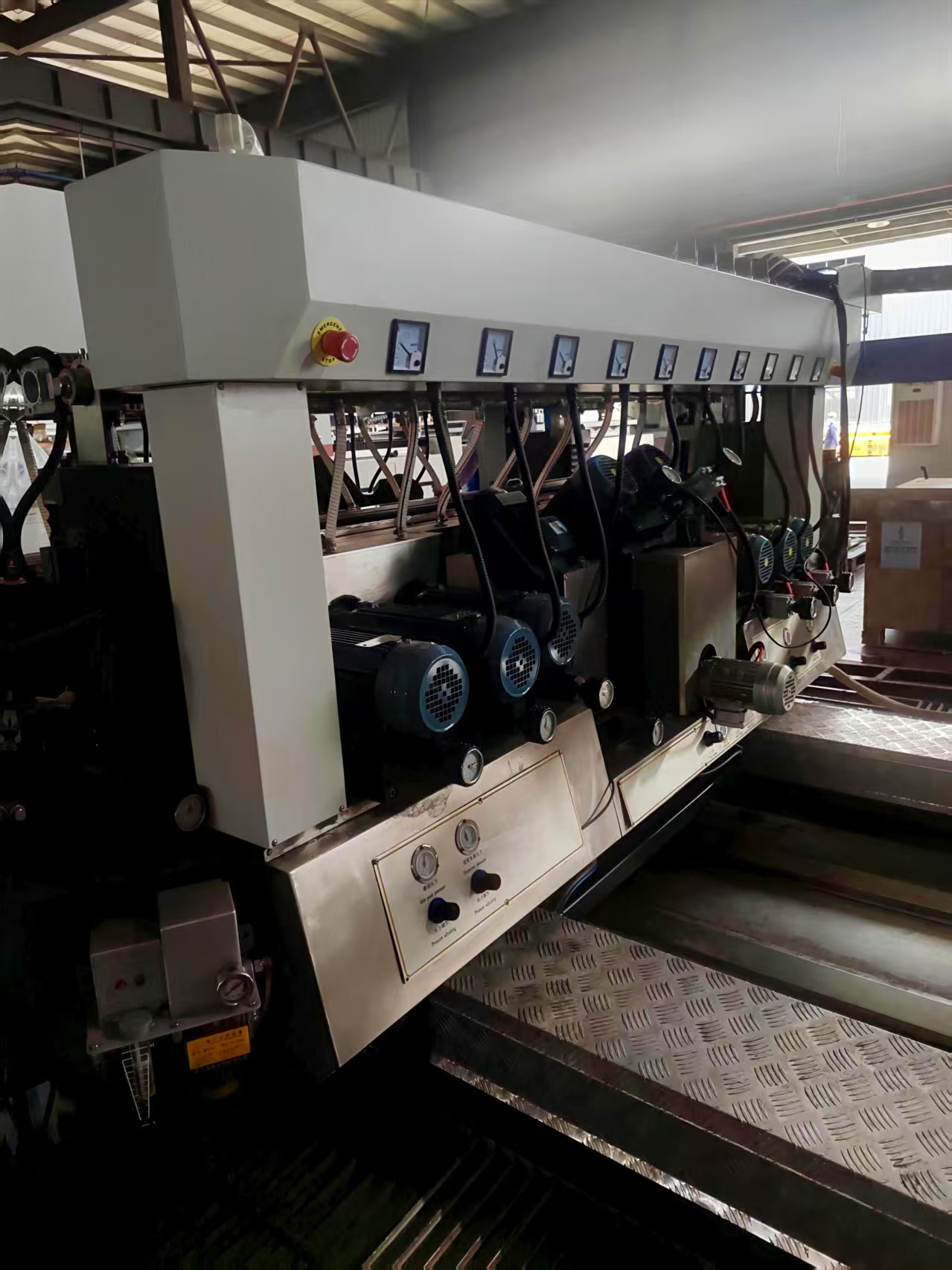

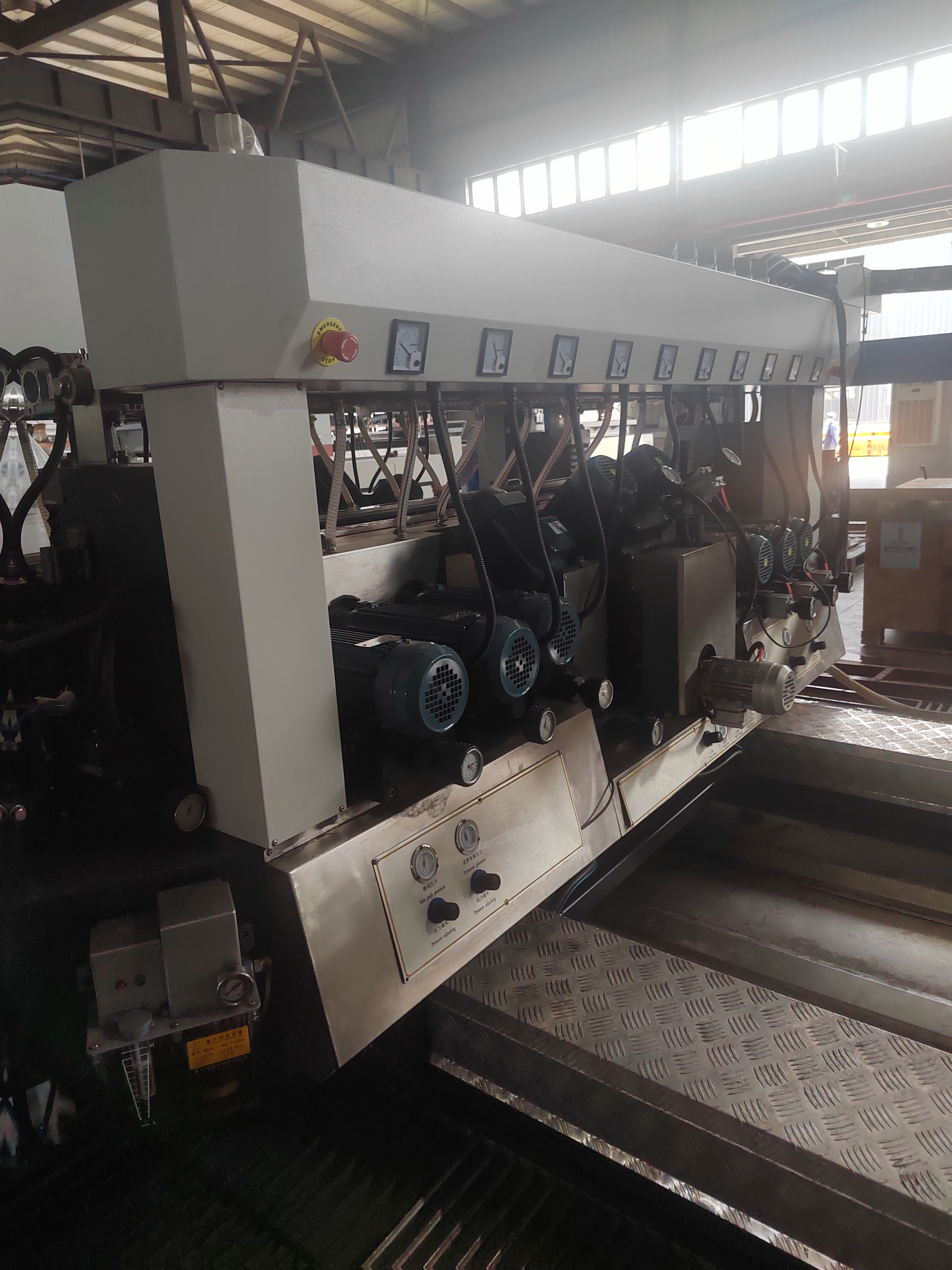

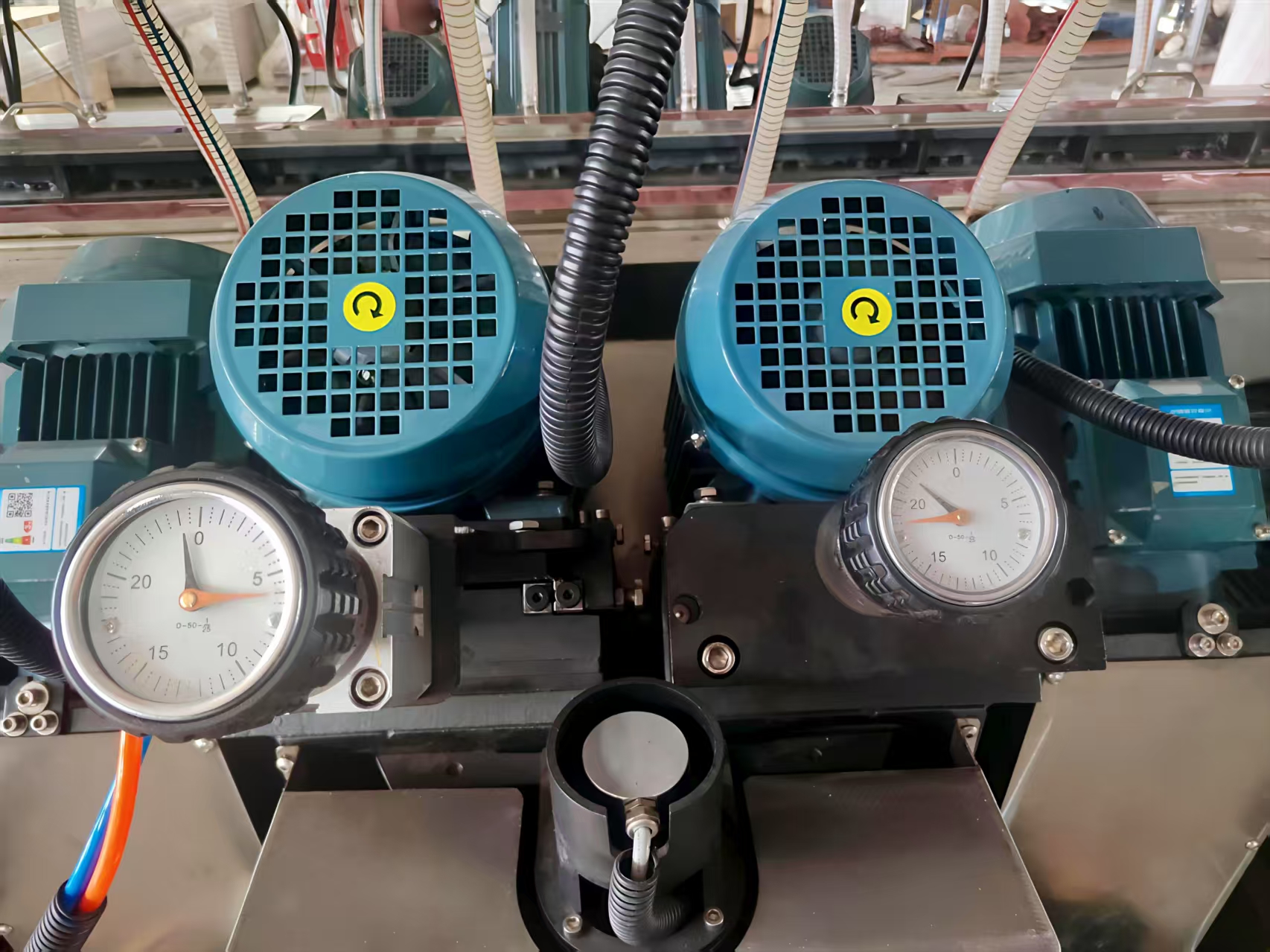

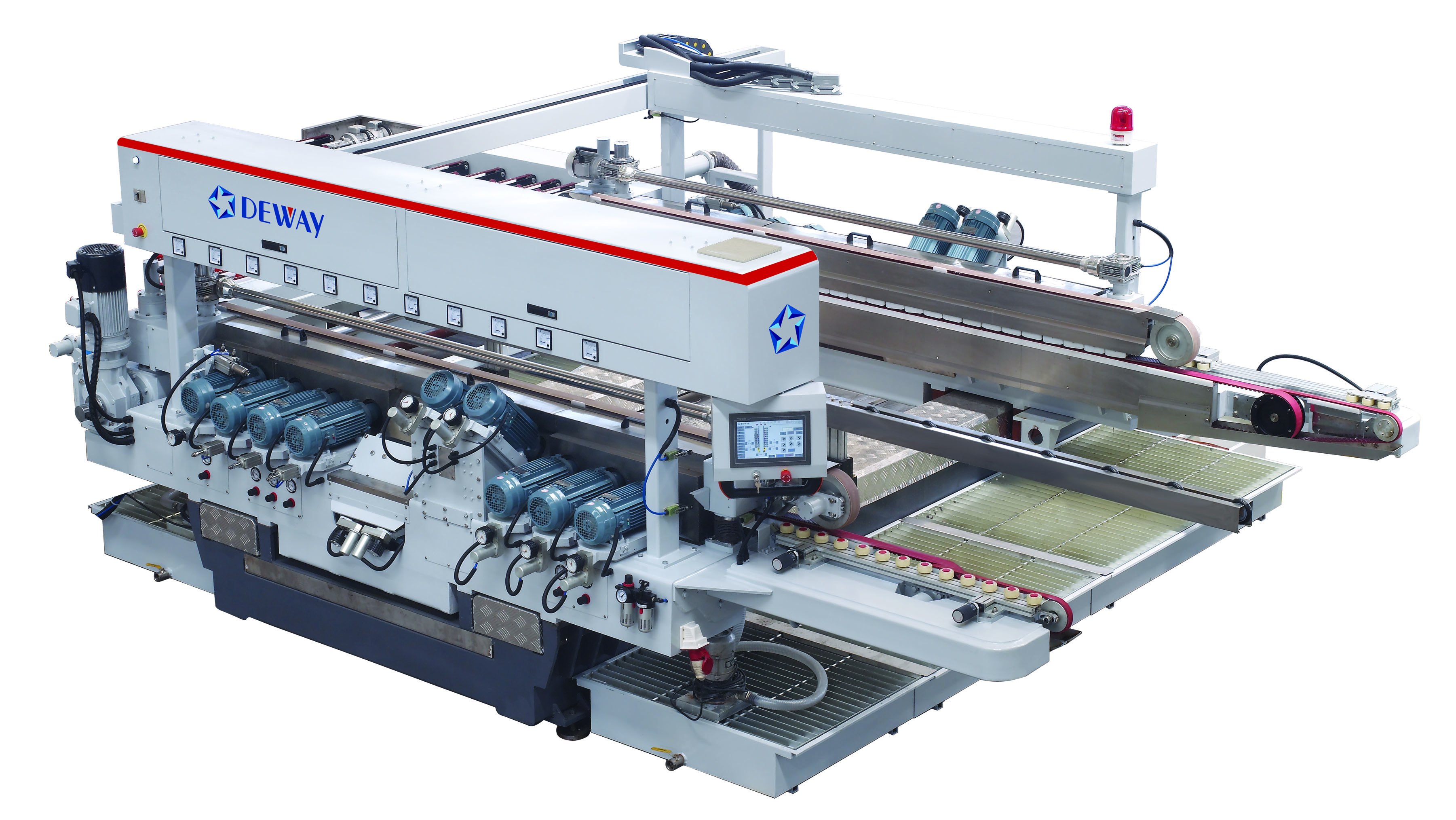

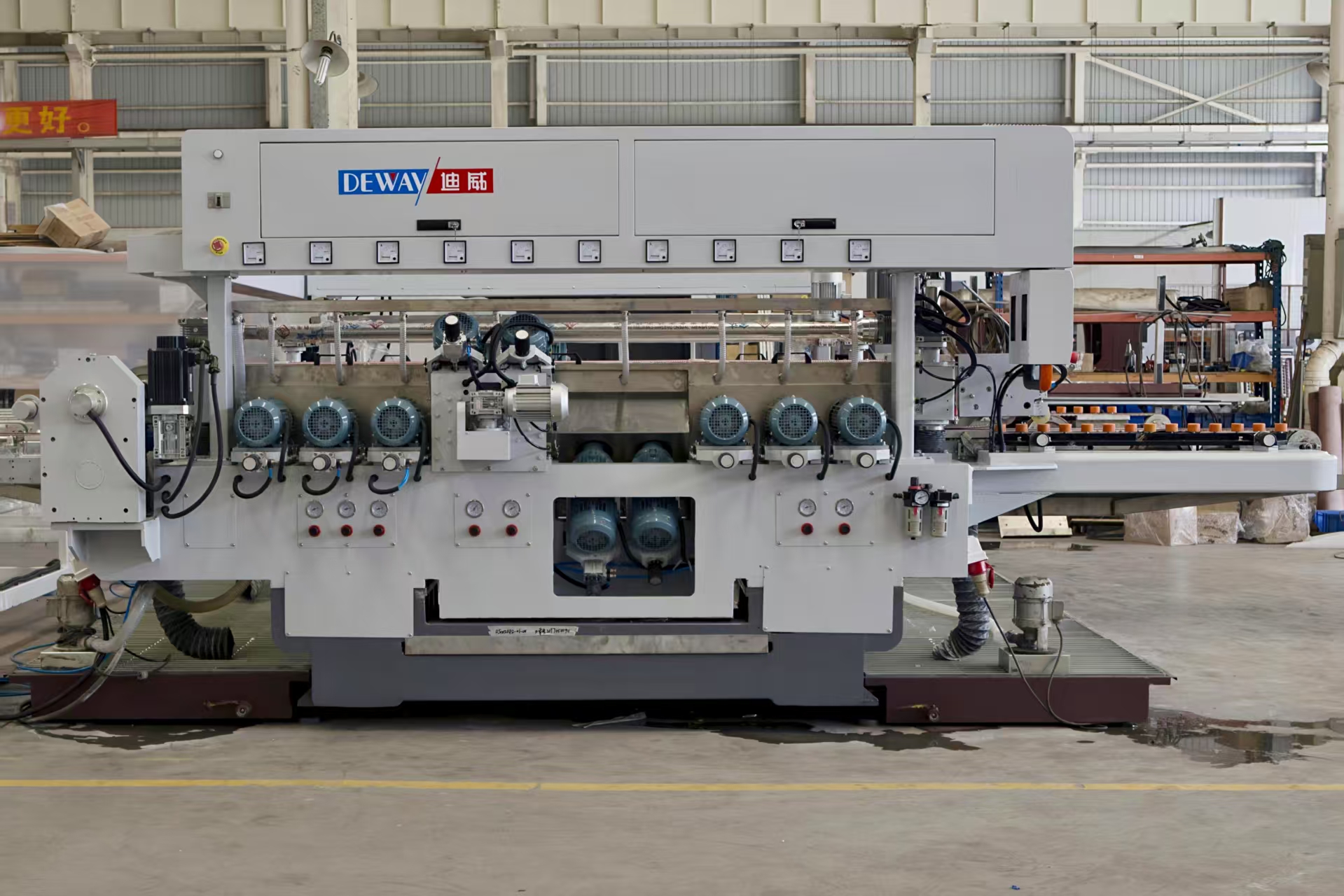

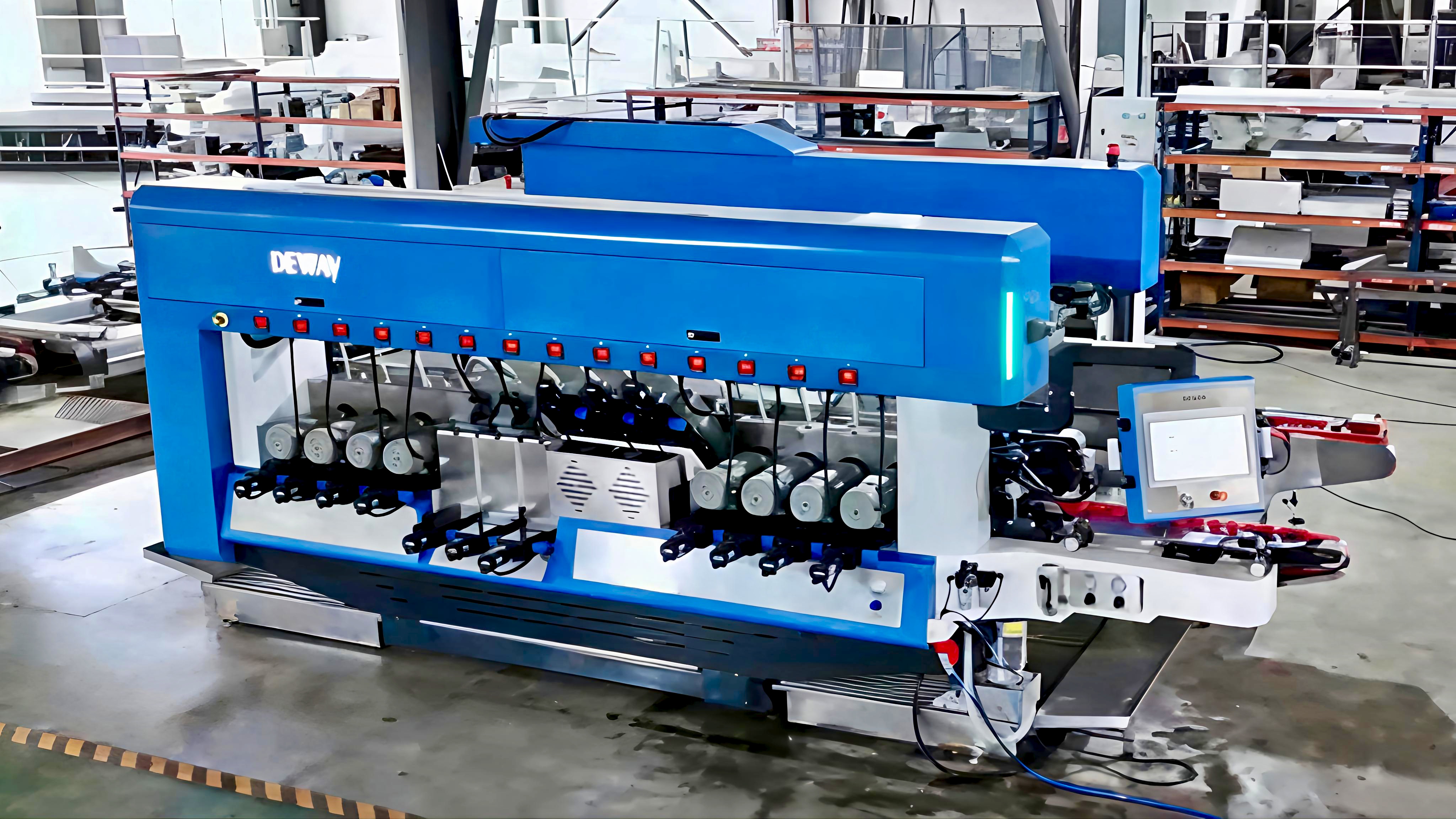

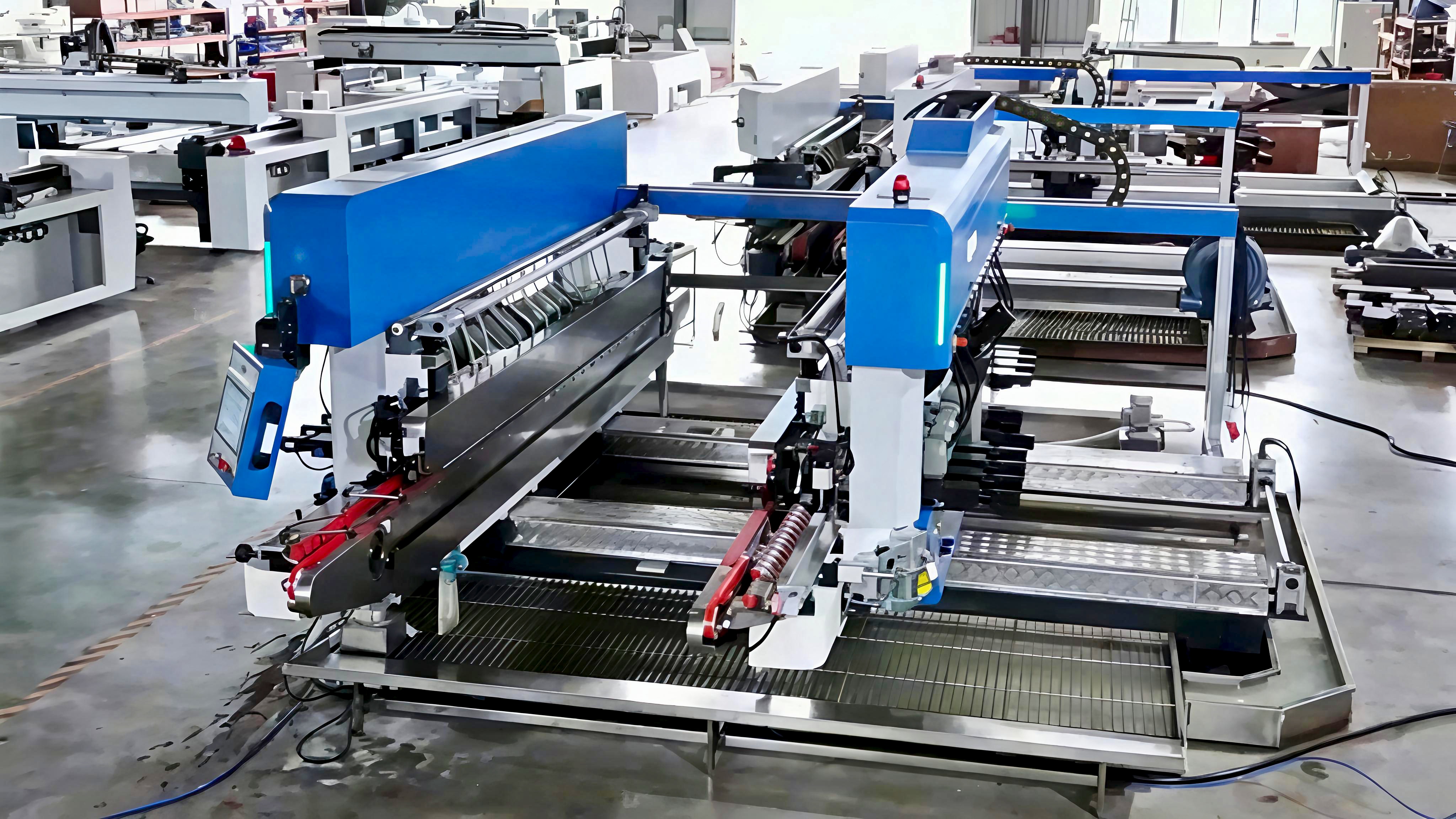

The Glass Double Edging Machine for 20 spindles DSM2042 (4200mm) delivers high-precision processing for architectural, automotive, and furniture glass. Industrial-grade solution with 4.2m dual-edge capacity.
Product Features
- 20-spindle simultaneous grinding/polishing
- 4200mm mega-format capacity
- ≤0.08mm edge consistency

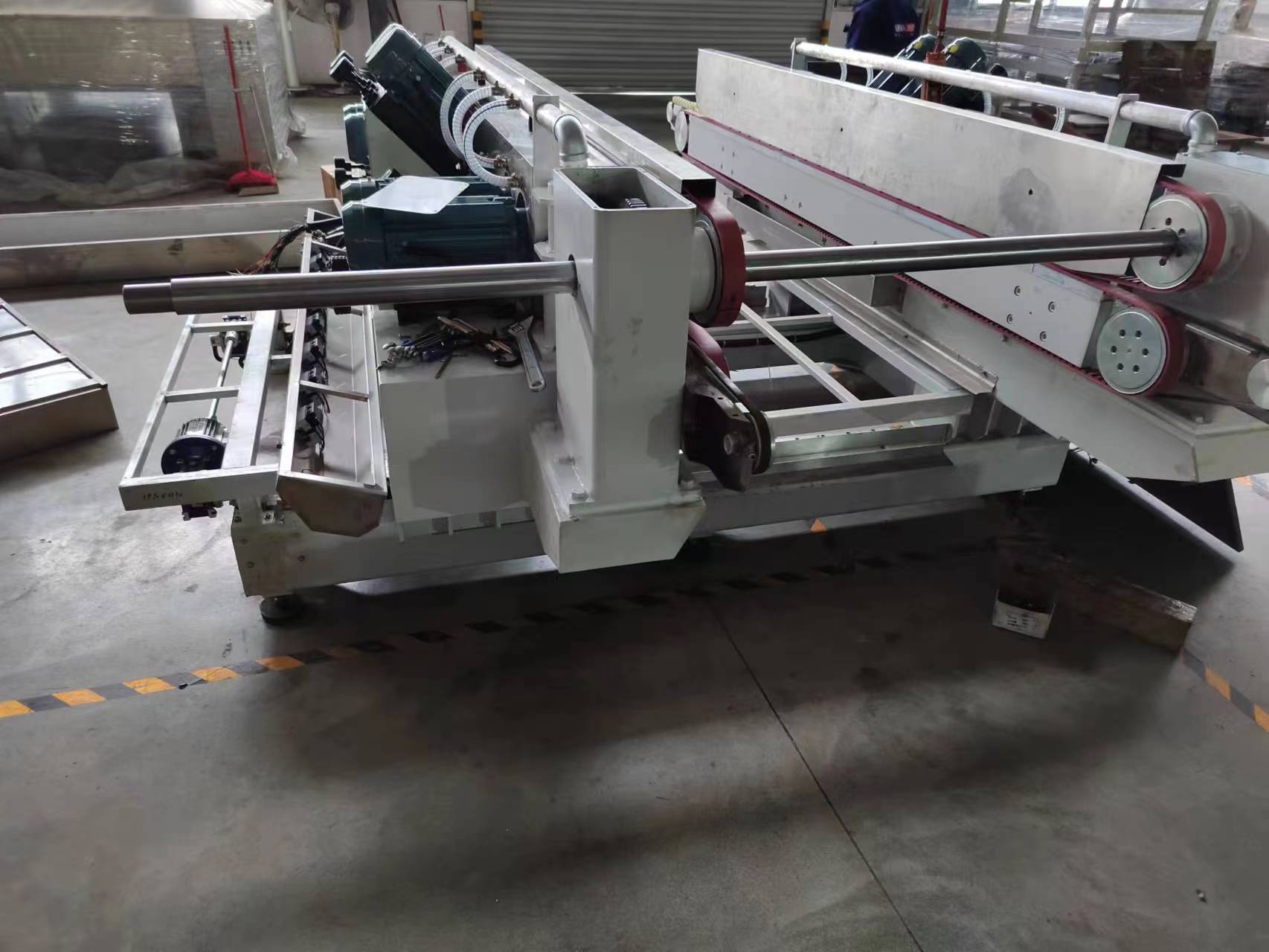

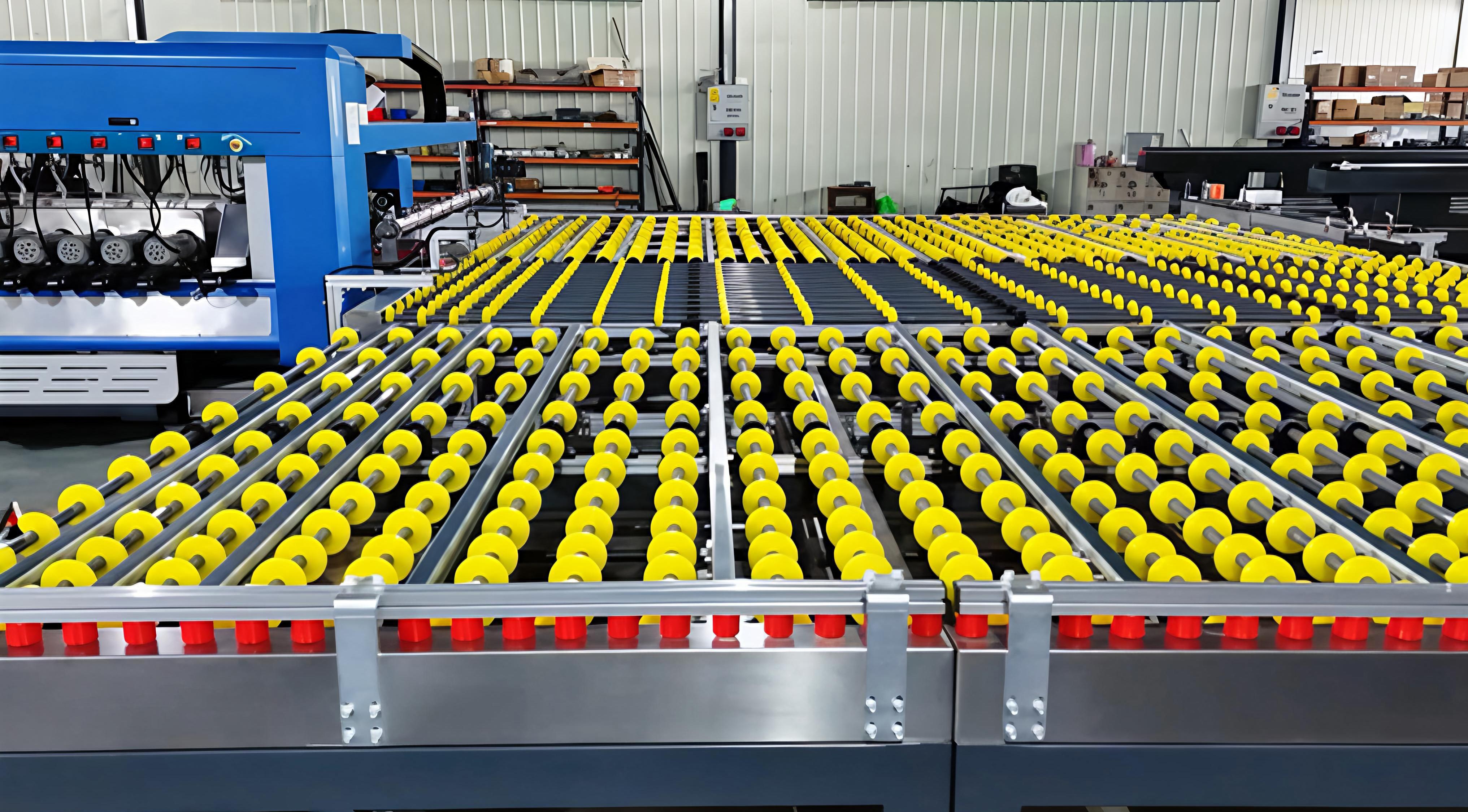

- Glass Double Edging Processing Machine for 20 spindles integration
- 24/7 reinforced frame operation

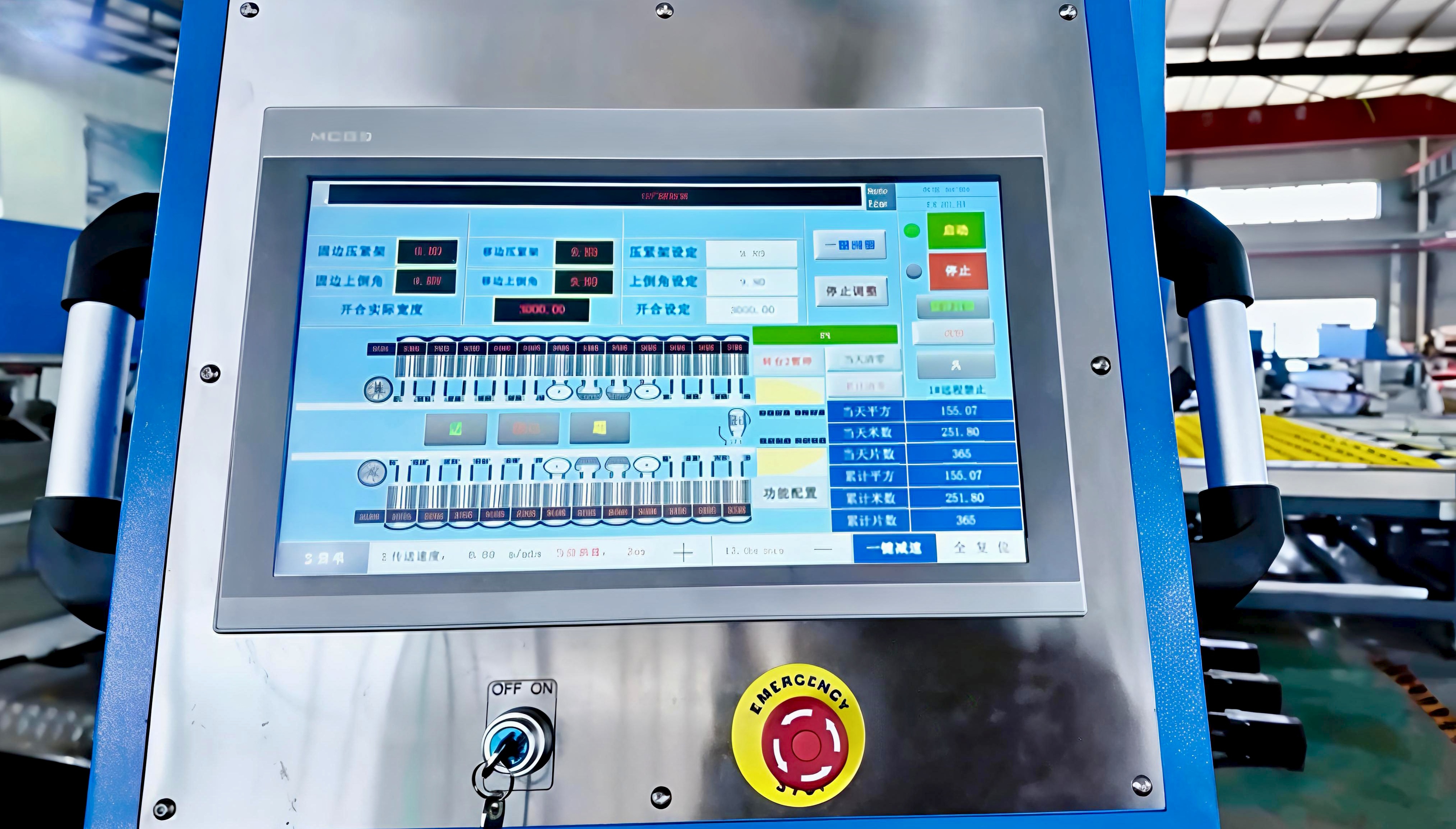

- Touchscreen HMI with recipe storage
Product Applications
- Jumbo architectural glazing
- Automotive windshields/sunroofs
- Premium furniture glass
- High-volume production

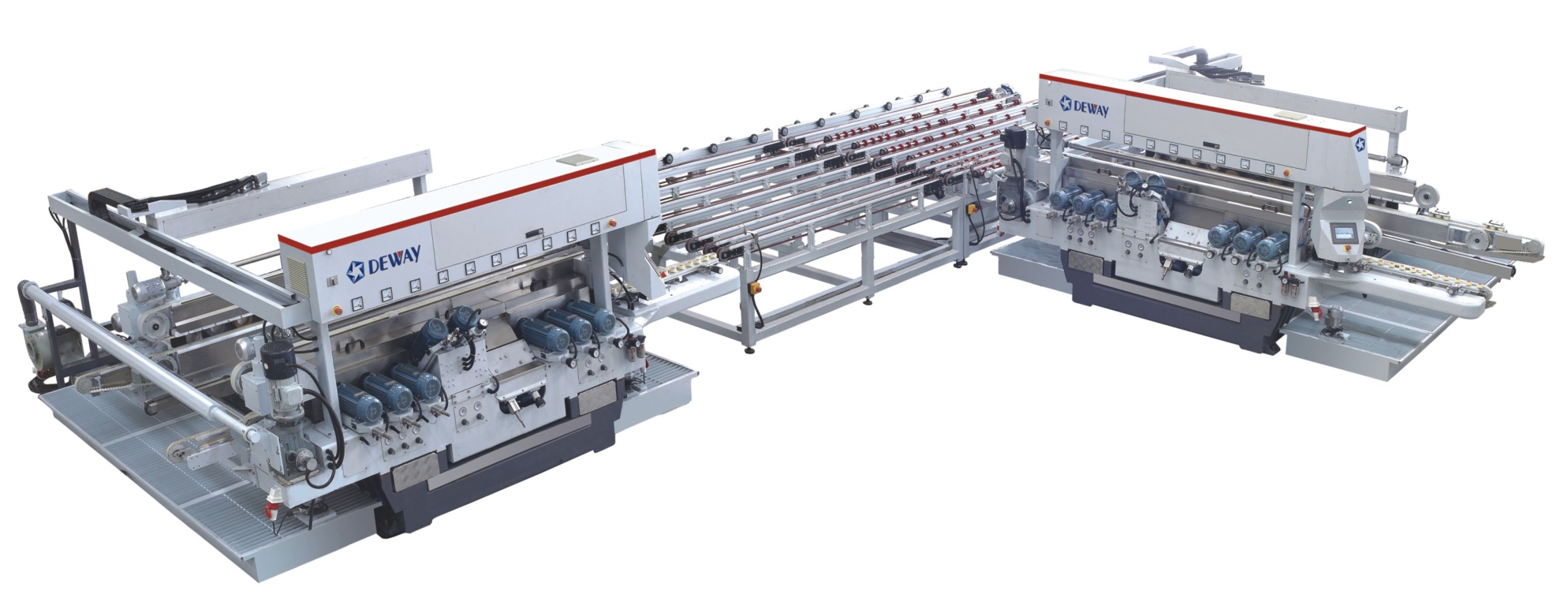

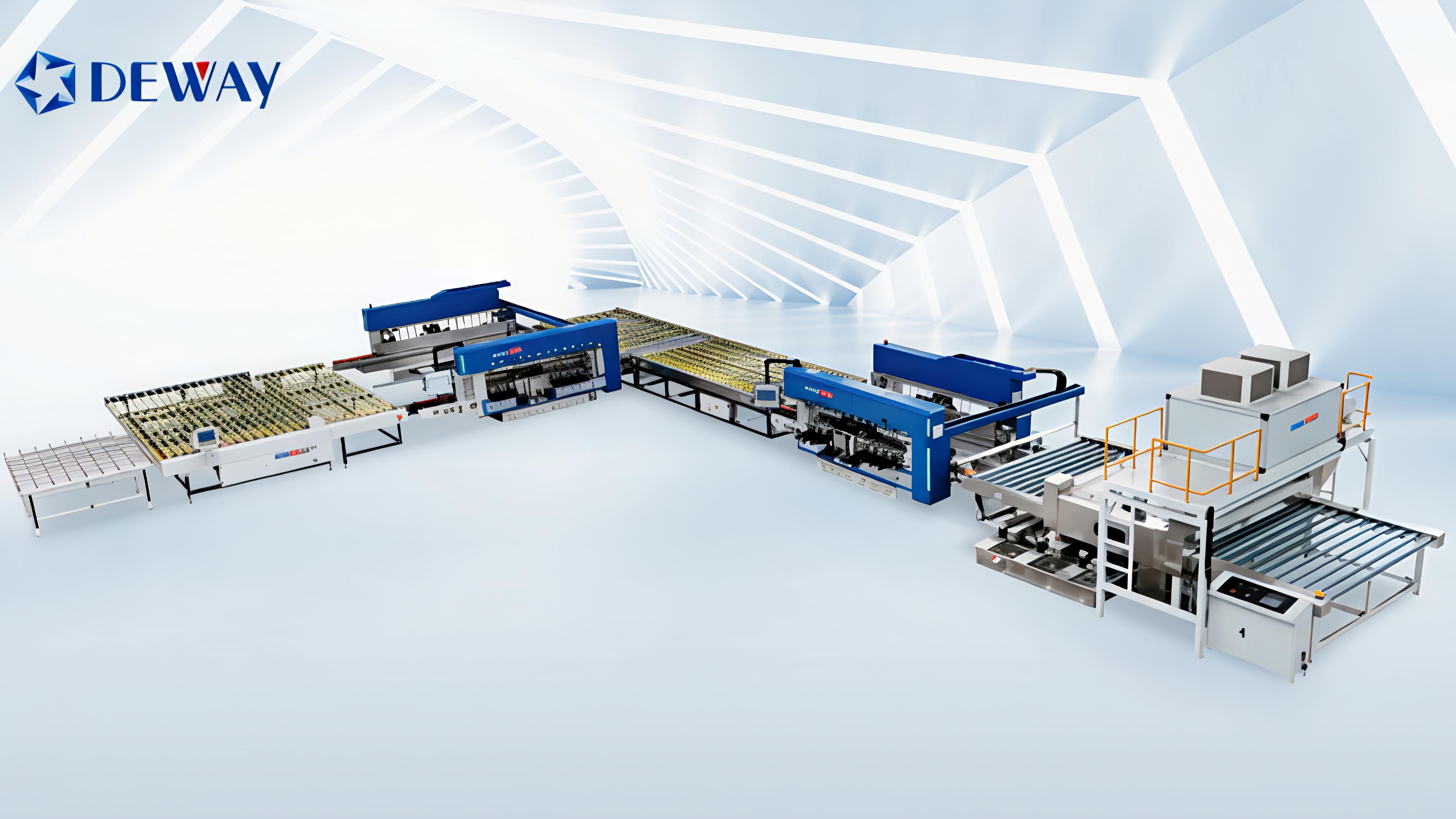

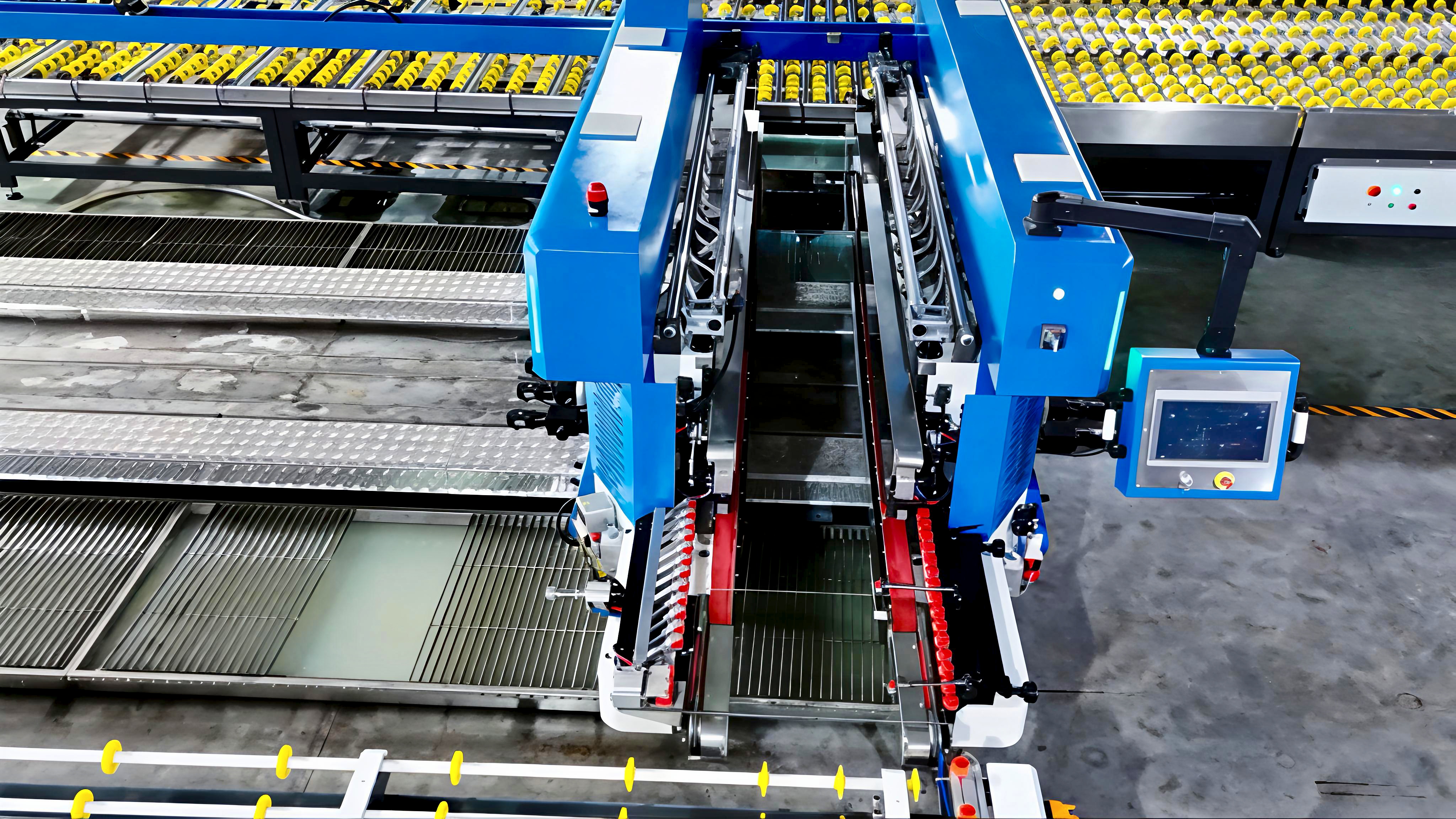

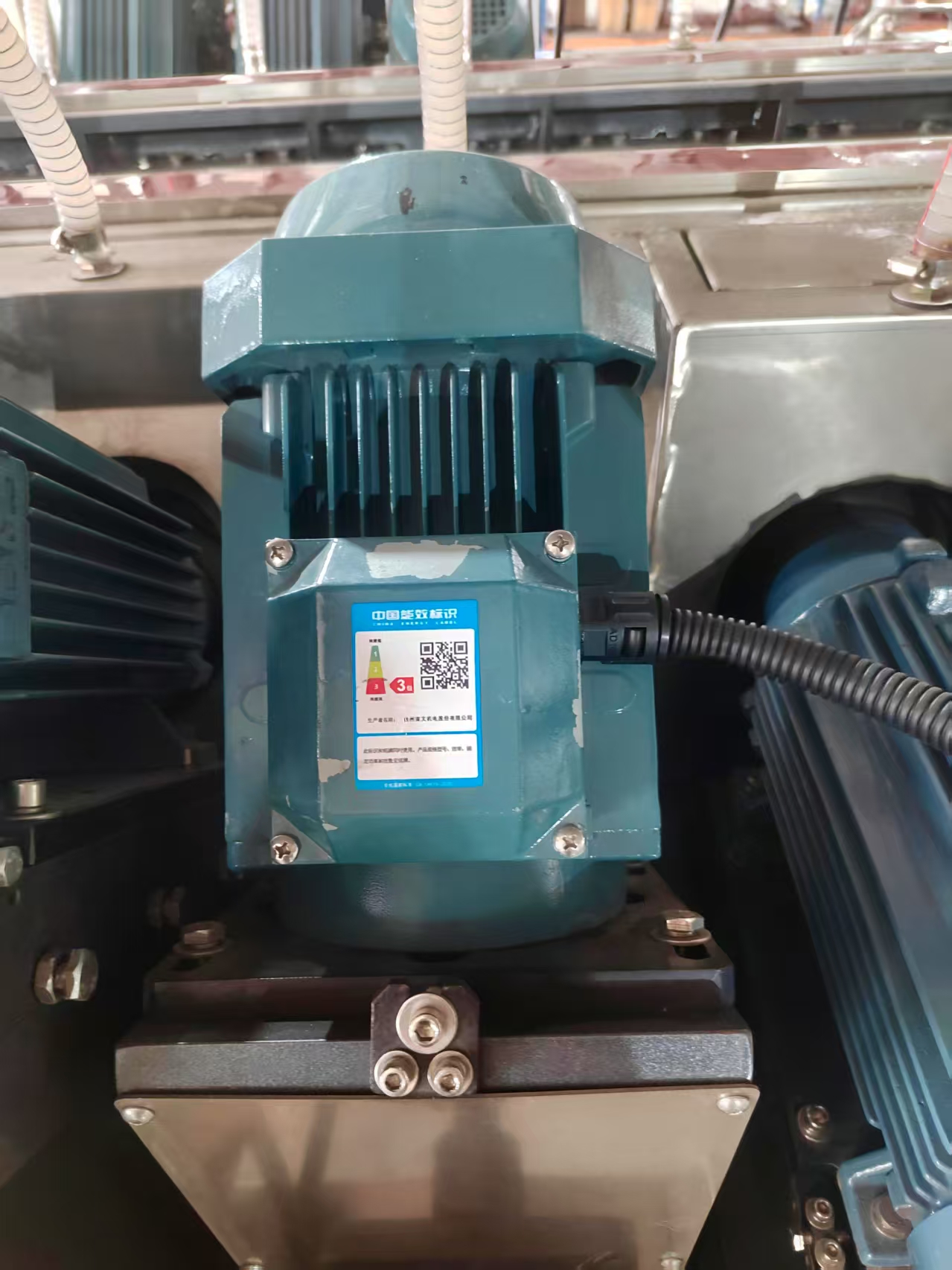

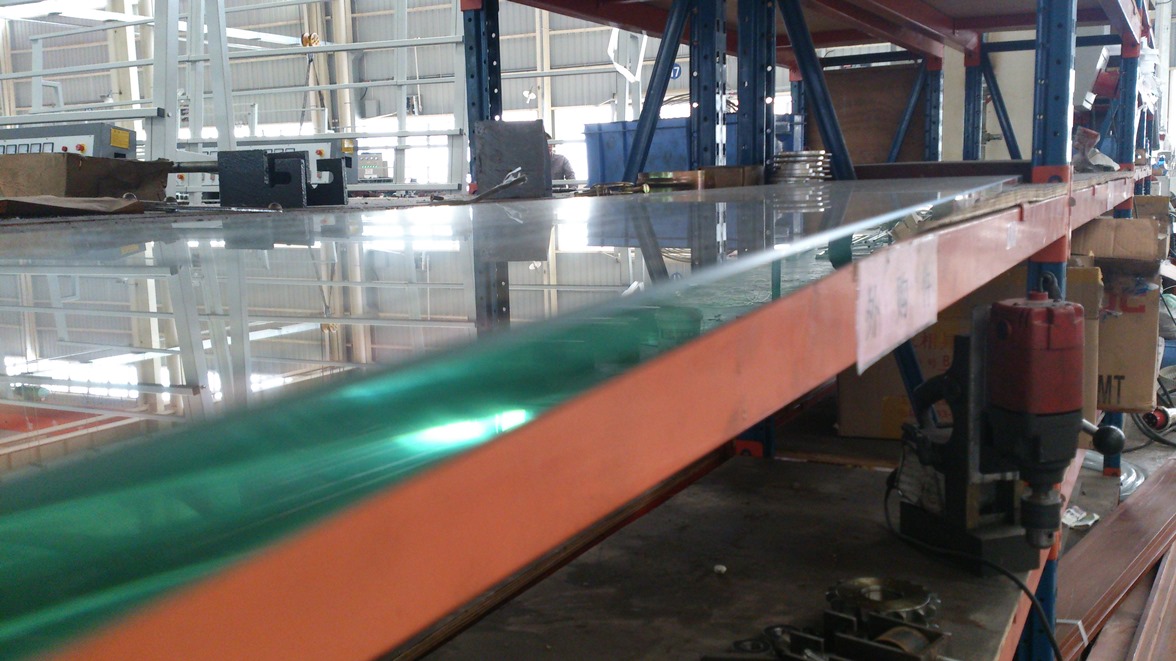

- Glass Double Edging Machine Processing Line for 20 spindles
Product Advantages
- Triple conventional throughput (40-edge processing)
- ±0.05mm tolerance across 4.2m panels
- Double edger line synchronization
- High speed glass double edger for 20 spindles operation (22m/min, 190 panels/hr @8mm)
- 30% energy savings
- 3-30mm glass without hardware changes
- Single-operator workflow
- 98% uptime
Technical data
| Wheels amount | 20 |
| Transmit Speed [m/min] | 1～12 |
| Glass thickness [mm] | 3～19 |
| Glass width [mm] | 300～4200(according to the type) |
| Parallel tolerance [mm] | ≤0.2/1m≤0.3/2m |
| Diagonal tolerance [mm] | ≤0.5/1m |
| Install power [kW] | 46 |
| Voltage [V] | 380V/50Hz |
| Compressed air [Mpa] | 0.6 -0.8 |
| Noise [dB] | ≤80 |
| Water pump volume | 12m3/hX2 |
| Weight [Kg] | 7000 |
Wheel position with respect to the incoming sheet | ||||||||||
DSM20 | ||||||||||
Ref.no | No.10 | No.9 | No.8 | No.7 | No.6 | No.5 | No.4 | No.3 | No.2 | No.1 |
Power | 1.5kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 2.2kW | 3.0kW | 3.0kW | 3.0kW |
Rev.(50Hz) | 1400 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2785 |
Name | Polishing wheel | Polishing wheel | Polishing wheel | Polishing wheel | Resin wheel | Polishing wheel | Resin wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | Φ150 CE3 | Φ150 10S60 | Φ150 10S40 | Φ150 10S40 | Φ150 240 mush | Φ150 10S40 | Φ150 240 mush | Φ150 240 mush | Φ150 140mush | Φ175 100 mush |
Usage | Bottom polishing | Bottom polishing | Bottom polishing | Polishing for upper arris | Fine grinding for upper arris | Polishing for down arris | Fine grinding for down arris | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
