Brief introduction

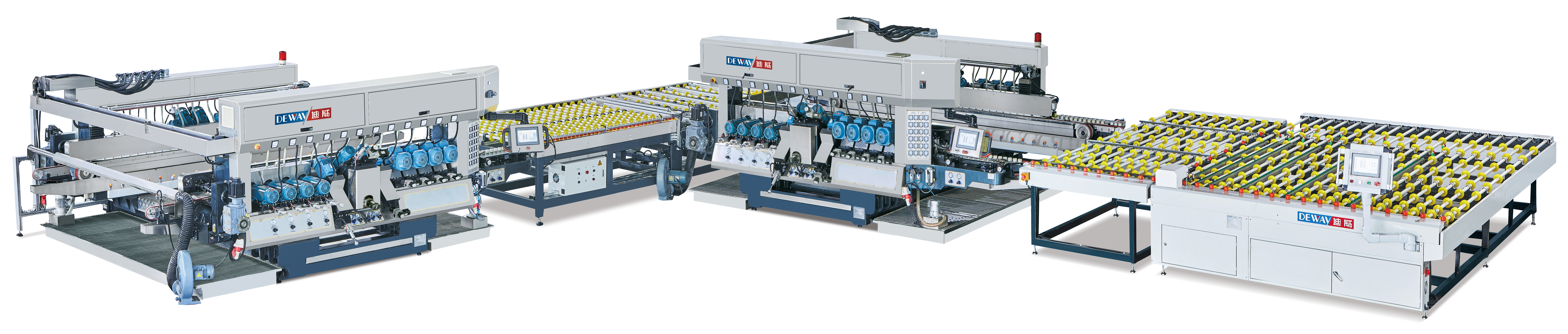

The DJC series glass detection table is a connection of double edging machines, placed on the front end of the double edging machine to complete the size detection of flat glass, the measured size is automatically transmitted to the double edging machine, and the double

edging machine is automatically complete the adjustment according to the receiving size. Customers only need to arrange two operating employees to complete the glass at the glass entrance and exit, which greatly saves manpower and improves the use of equipment.

Product Introduction

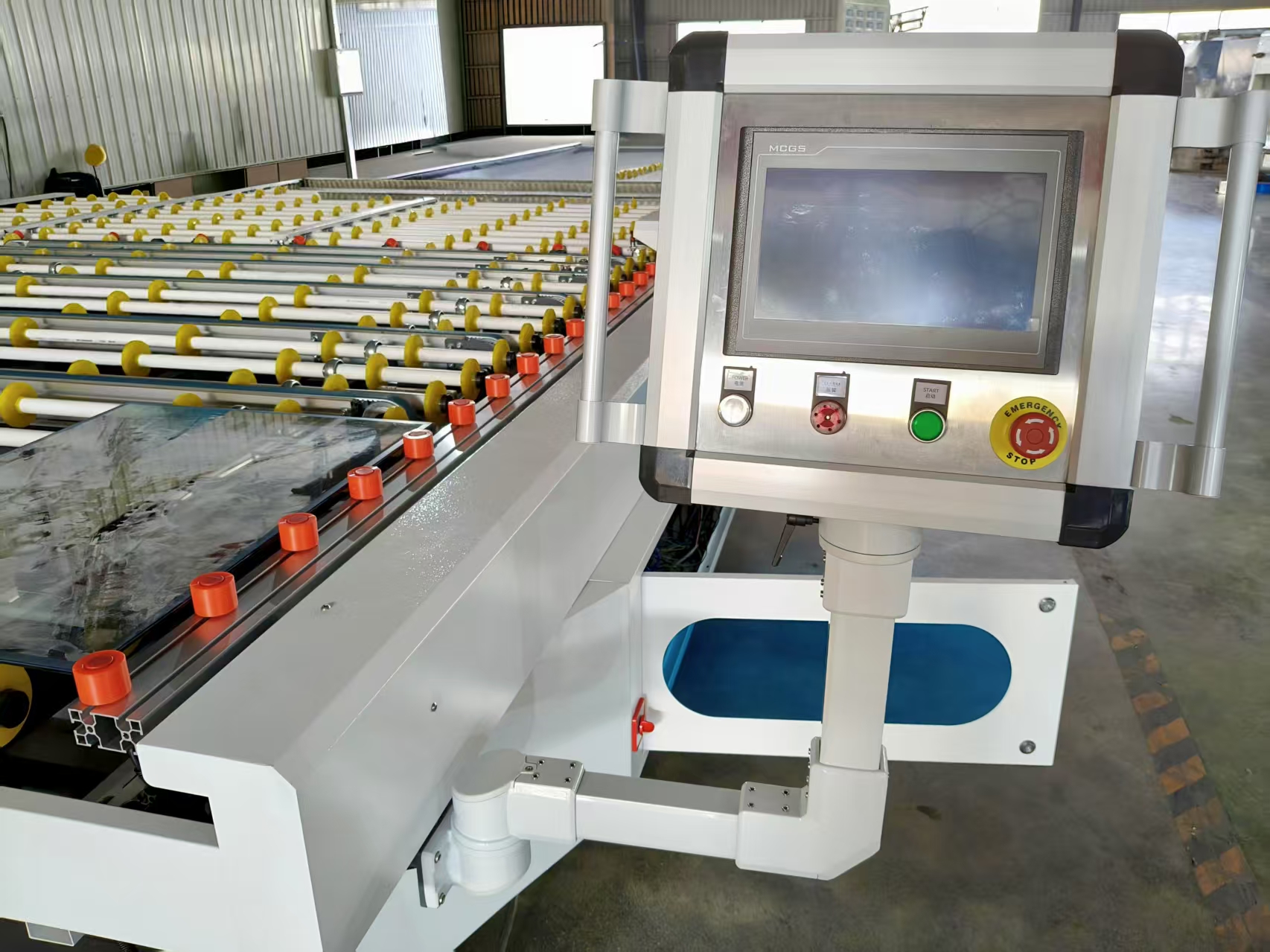

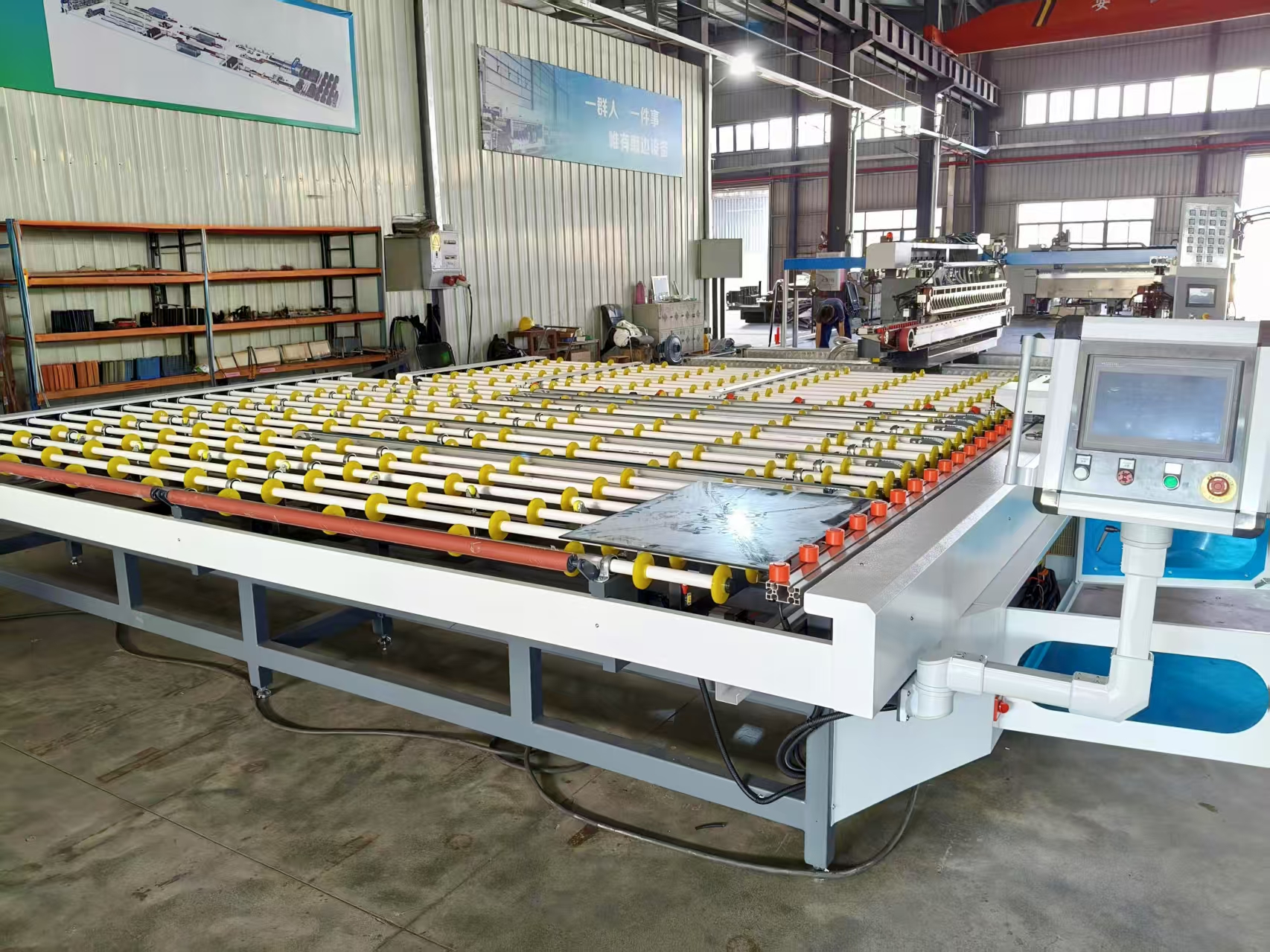

The DJC4225 Glass Detection Table is an advanced Automatic Glass Detection Machine engineered for precision quality control in glass manufacturing. This integrated solution performs defect inspection while seamlessly transferring glass within processing lines, serving as both a quality gate and material handling system.

Product Features

- Dual-Function Design: Operates as both a Glass Detection Table and Glass Double Edging Transfer Table

- Automated Inspection System: High-resolution cameras/sensors detect scratches, bubbles, and edge defects (≤0.1mm sensitivity)

- Intelligent Material Handling: Integrated Glass Loading Machine functionality for automatic panel transfer

- Adaptive Control: Programmable defect parameters based on glass type/thickness

- Industrial Durability: Heavy-duty construction for 24/7 operation

- Safety Compliance: Emergency stops, protective barriers, and automated handling

Product Applications

- In-line inspection in double edging production lines

- Final quality control for architectural glass panels

- Defect screening for automotive glass manufacturing

- Automated transfer between polishing/edging stations

- Loading interface for tempering furnaces or cutting machines

Product Advantages

- Unified Quality & Handling: Combines detection, transfer, and loading in one Automatic Glass Detection Table

- Zero-Downtime Integration: Direct compatibility with double edging lines as a Glass Double Edging Transfer Table

- Defect Detection Accuracy: 99.7% flaw identification rate through AI-enhanced analysis

- Labor Optimization: Reduces manual handling by 85% while maintaining 100% inspection coverage

- Throughput Enhancement: Processes panels at 25m/min with continuous loading via Glass Loading Machine system

- Quality Assurance: Prevents defective products from reaching downstream processes, reducing waste by up to 30%

- Space Efficiency: 40% smaller footprint vs. separate detection/transfer systems

This Automatic Glass Detection Machine delivers closed-loop quality control with ≤0.02mm positioning accuracy during transfer operations. As a production line nexus, the DJC4225 boosts yield rates while eliminating manual handling risks - achieving ROI within 14 months for high-volume manufacturers.

Machine nameplate data

Model of machine: DJC 4225

Working power supply：three phase 380V50Hz

Total power： 4KW

Detecting glass thickness： 3~25mm;

Detecting glass： Min. 400x400mm; Maxi. 4200x2500mm;

Feed speed： 1~ 20m/min;

Weight：1500kg

Serial number：

Date of production： 2022
