Brief introduction
DZX Glass Working Center Capabilities:

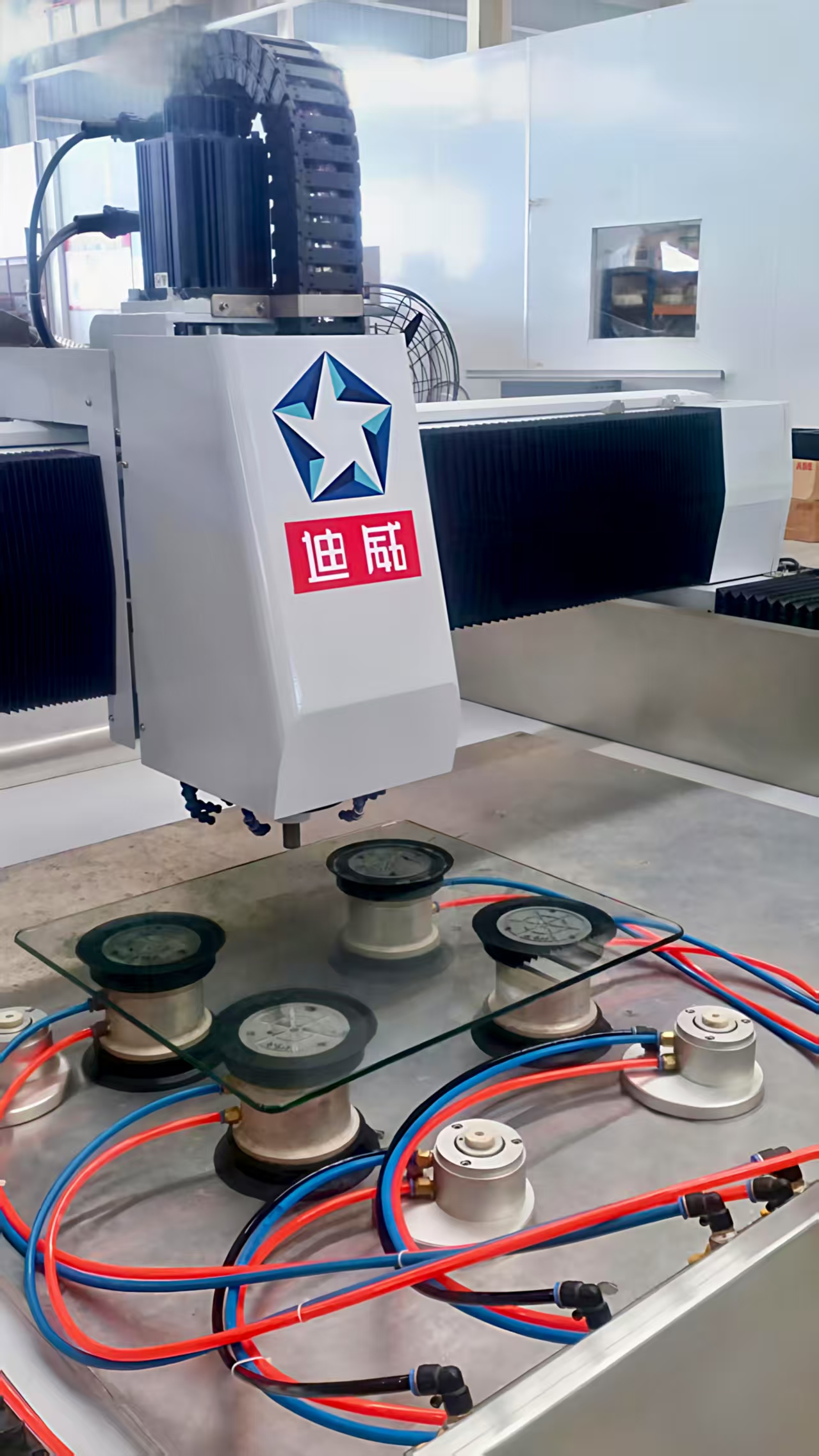

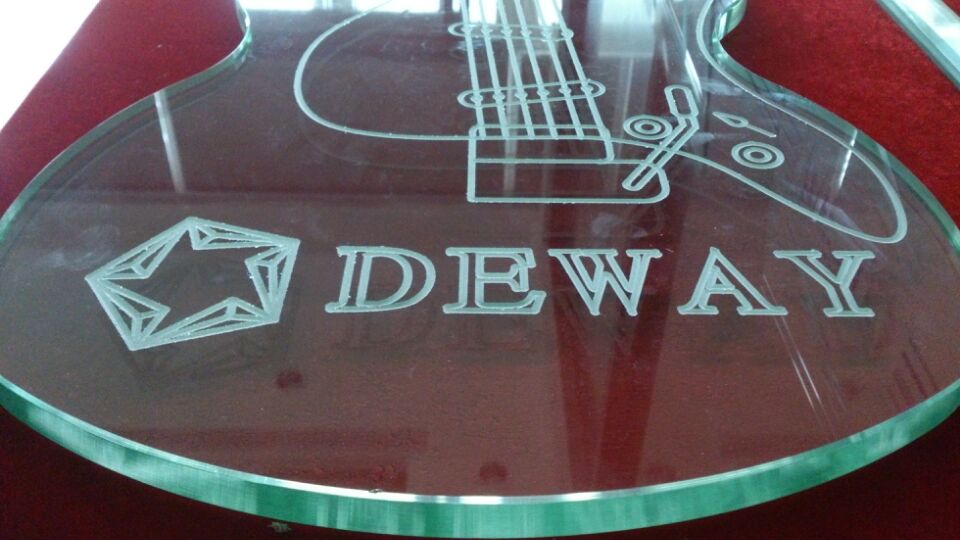

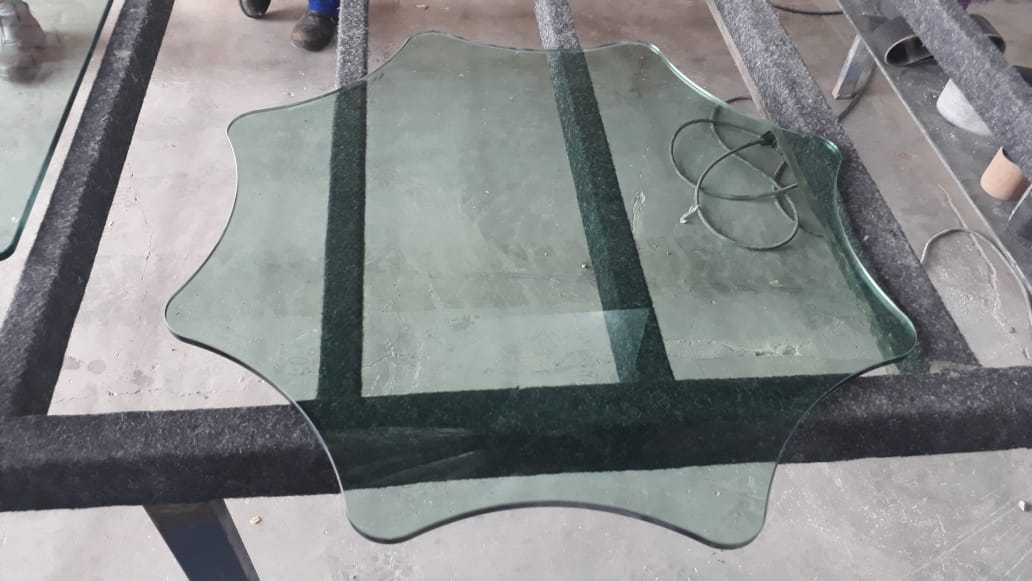

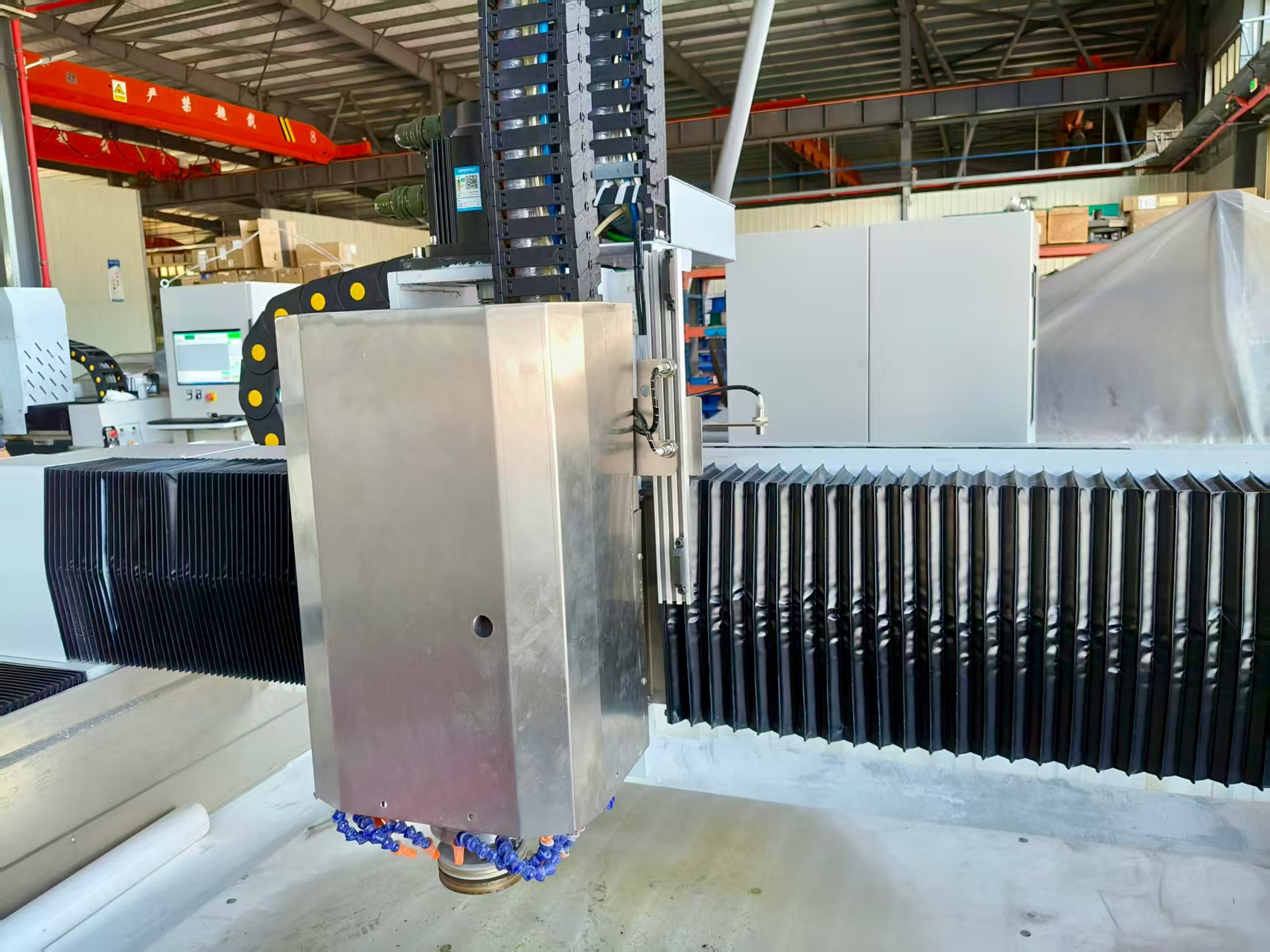

Processes any glass shape for edging, drilling, engraving, and polishing. Auto-tool changers (drilling bits, diamond wheels, polishing wheels) perform all operations sequentially without repositioning. Vacuum-fixtured glass placement is software-guided. High-speed spindle (adjustable to 9000 rpm) ensures precision. Combines accuracy, speed, superior finish, and simple operation–ideal for mass-producing shaped, furniture, and automotive glass with tight tolerances. Single-operator requirement.

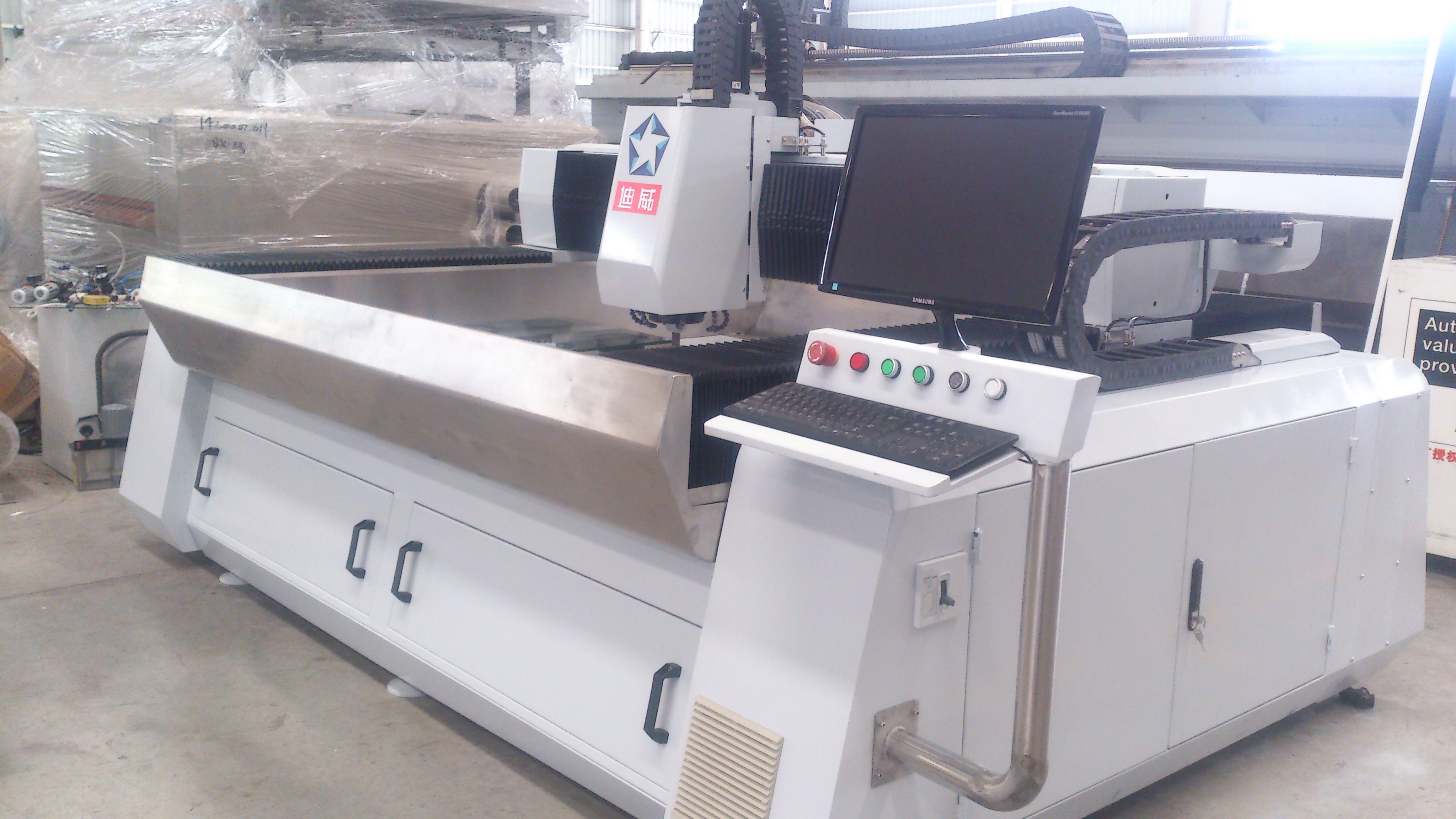

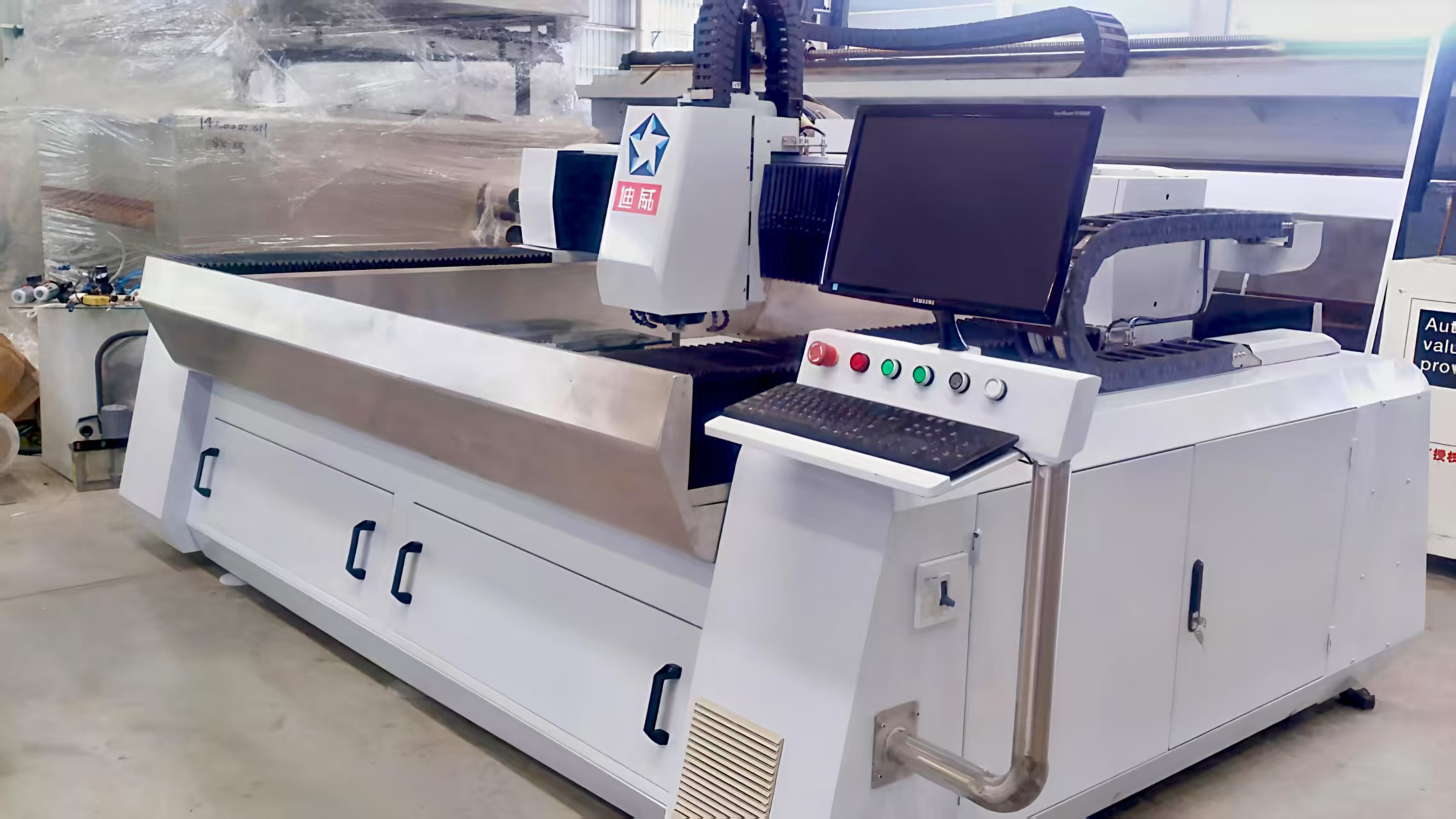

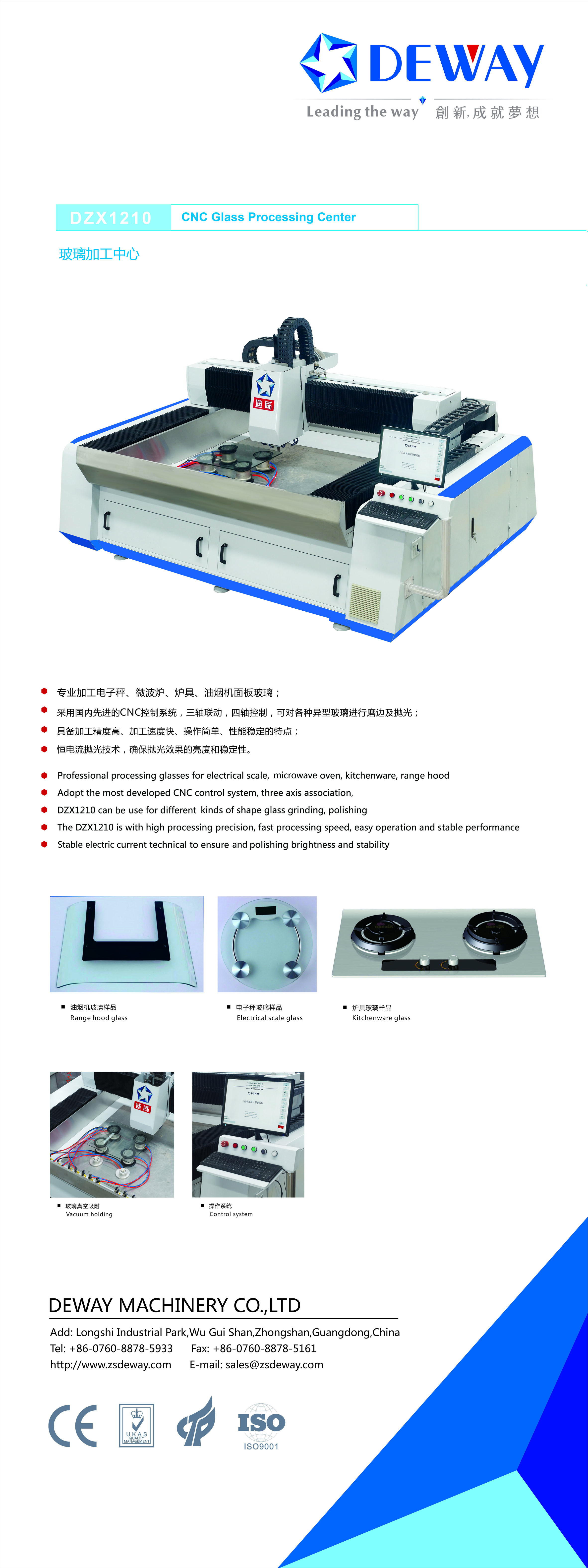

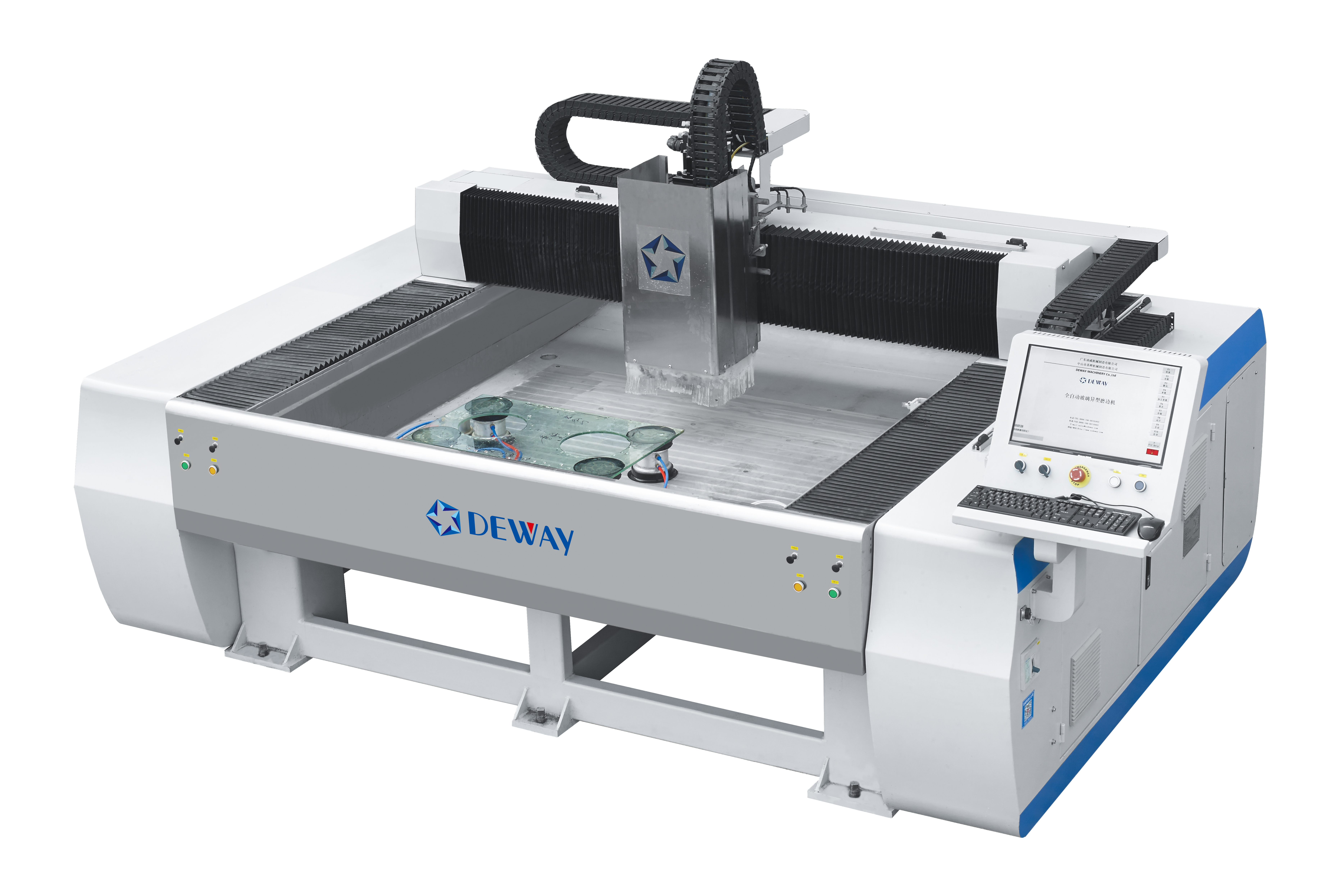

DZX1210 CNC Glass Processing Center (1200x1000mm): Product Introduction
This advanced CNC Glass Processing Center is built for precision appliance and automotive glass fabrication. Handles medium panels within its 1200x1000mm capacity.
Key Features:
Advanced CNC Control: Ensures operational precision
Integrated Processing: Combines cutting, grinding, drilling, polishing
Versatile Grinding: Functions as a CNC Glass Grinding Machine for diverse glass
Automated Operation: Minimizes manual intervention/errors

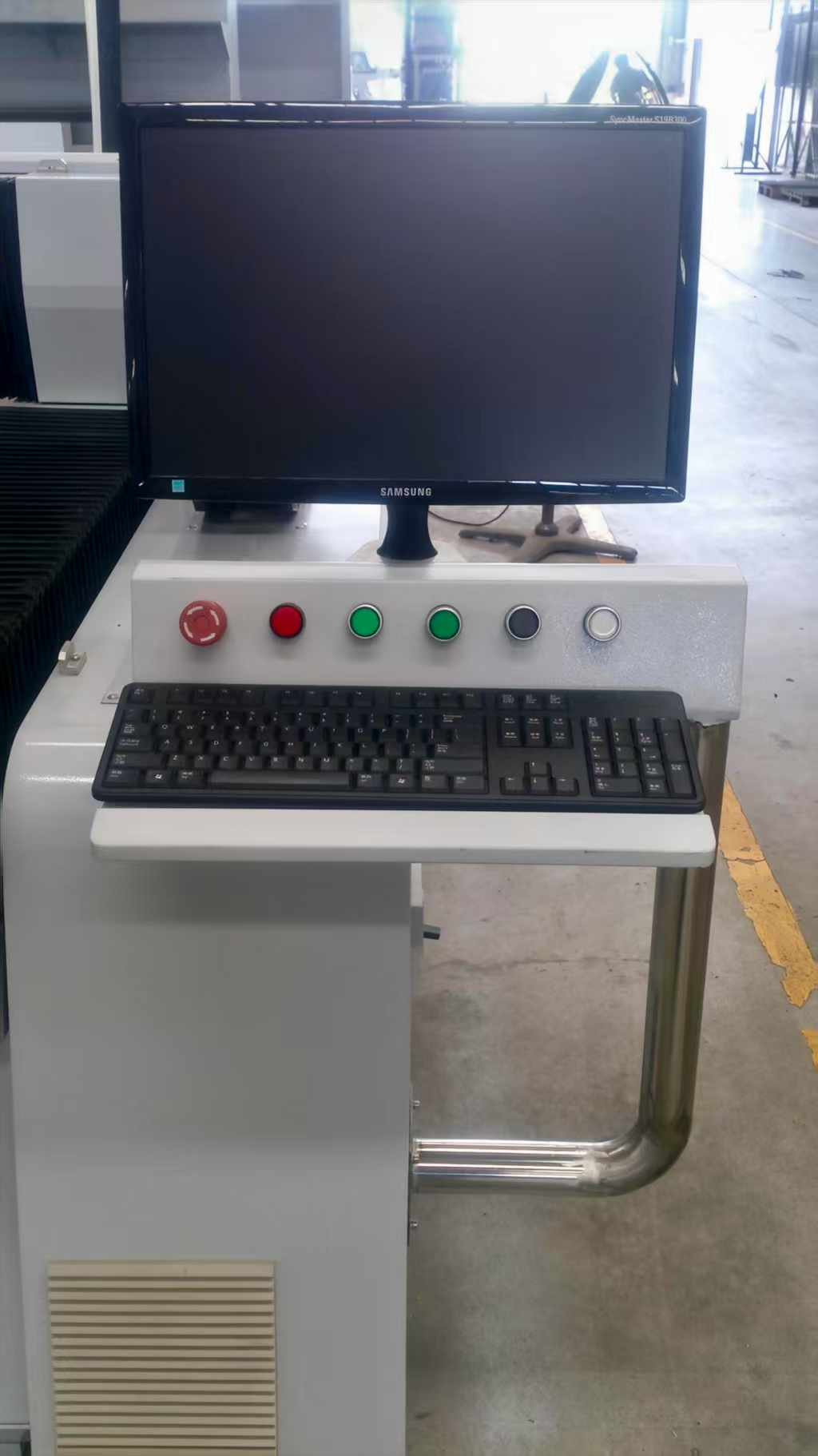

Intuitive Interface: Suitable for all operator levels
Primary Applications:
Home Appliance Glass Grinding Center: Delivers flawless edges/surfaces for oven doors, refrigerator shelves (operates as a dedicated Home Appliance Glass Grinding Center).
Home Appliance Glass Processing Center: Serves as a comprehensive Home Appliance Glass processing center for diverse components.
Auto Glass Processing Machine: Processes complex elements like windshields and side windows (functions as an Auto Glass processing Machine).
Key Benefits:
Efficiency: Multi-operation capability reduces cycle times
Quality Assurance: CNC Glass Processing Center precision ensures consistent, compliant output
Error Reduction: Automation minimizes defects
Production Optimization: Continuous processing eliminates secondary steps
Dual-Sector Versatility: Proven in Home Appliance Glass processing center and Auto Glass processing Machine roles
Market Competitiveness: Delivers essential precision and throughput
Overall: The DZX1210 CNC Glass Processing Center (1200x1000mm) is vital for high-grade Home Appliance Glass Grinding Center tasks and Auto Glass processing Machine applications.
Name plate
Machine’s name：Glass CNC Machining center
Model：DZX1210
Power Supply：380V, 50Hz
Total power：14.5Kw
Glass thickness：3~8mm
Max. Glass Size: 1450x1120
Weight：2100kg
Serial Number：
Production date：2020
Technical data
Model no. | DZX1210 | DZX1512 | |
1 | Max. glass size [mm] | 1150×920 | 1450×1120 |
2 | Glass thickness [mm] | 3-8 | 3-8 |
3 | Path of the axis（X、Y、Z） [mm] | 1370，1150，100 | 1700，1400，150 |
4 | Max. speed of the axis（X、Y、Z）[m/min] | 15，15，7.5 | |
5 | Processing speed [m/min] | 0.5～8 | |
6 | Main spindle max. speed [rpm] | 9000 | |
7 | Main spindle power [Kw] | 7.5 | |
8 | Tool rack (Optional) [pcs] | 0 | 6 |
9 | Max. Diameter for the wheels [mm] | 100 | |
10 | Max. Overall size [mm] | 3300×2200×2200 | 3600×2450×2200 |
11 | Gross weight [kg] | 1800 | 2100 |
12 | Pressed air [bar] | 6.5 | |
13 | Qty. for the water tank [pcs] | 2 | |
14 | Voltage [V] | See the diagram | |
15 | Total power [kw] | 14.5 | |
