Product Introduction

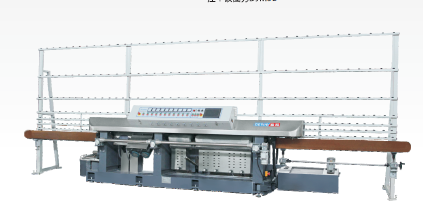

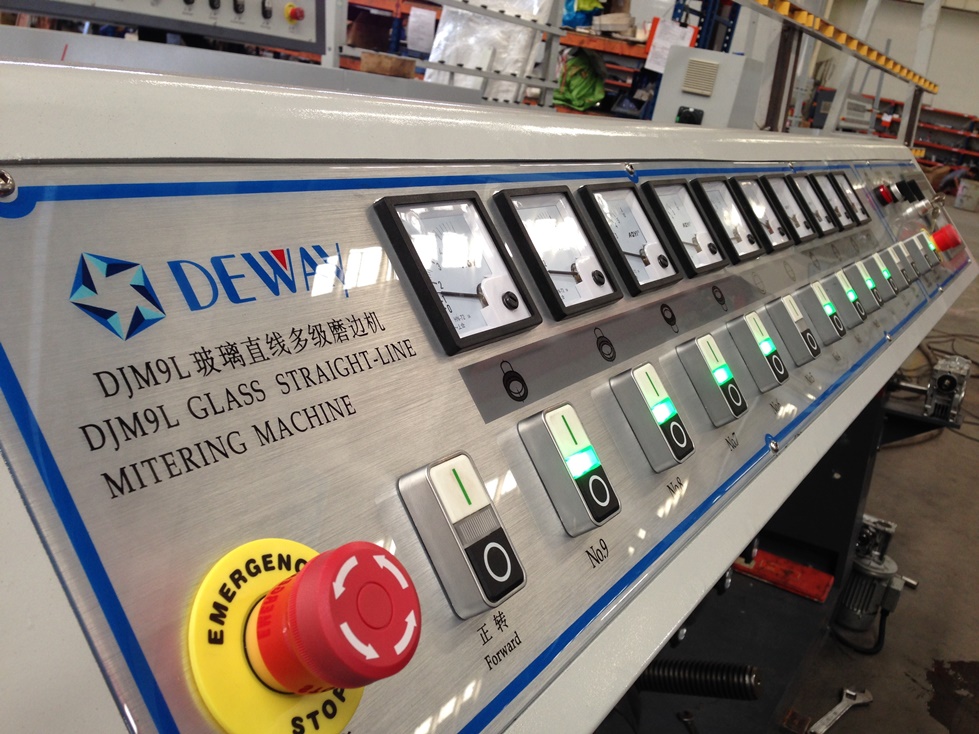

The DJM9L Glass Miter Machine (9 Spindles) represents advanced engineering for comprehensive glass edge processing. Functioning as a Glass Straight-line Edging with Variable Miteringsystem, it delivers precision straight-line edges while accommodating custom angle requirements. This versatile solution integrates capabilities as a specialized Glass Miterprocessor, dedicated Mitering Machine, precision 45 degree mitering Machine, and high-finish 45 degree Edging Machine- making it indispensable for modern glass fabrication demanding geometric accuracy and aesthetic perfection.
---
Product Features
1. Dual-Function Processing Core
- Glass Straight-line Edging with Variable Miteringcapability enables seamless transition between linear edges and 30°-60° miters
- Digital angle control maintains ±0.1° tolerance across all configurations
2. Advanced Mitering Technology
- Specialized Glass Miterprocessing with diamond-embedded grinding wheels
- Mitering Machinefunctionality delivers clean cuts for architectural/decorative applications
3. Precision 45-Degree Systems
- Dedicated 45 degree mitering Machinemode for standard angle applications
- Complementary 45 degree Edging Machinefunction with automatic polishing heads

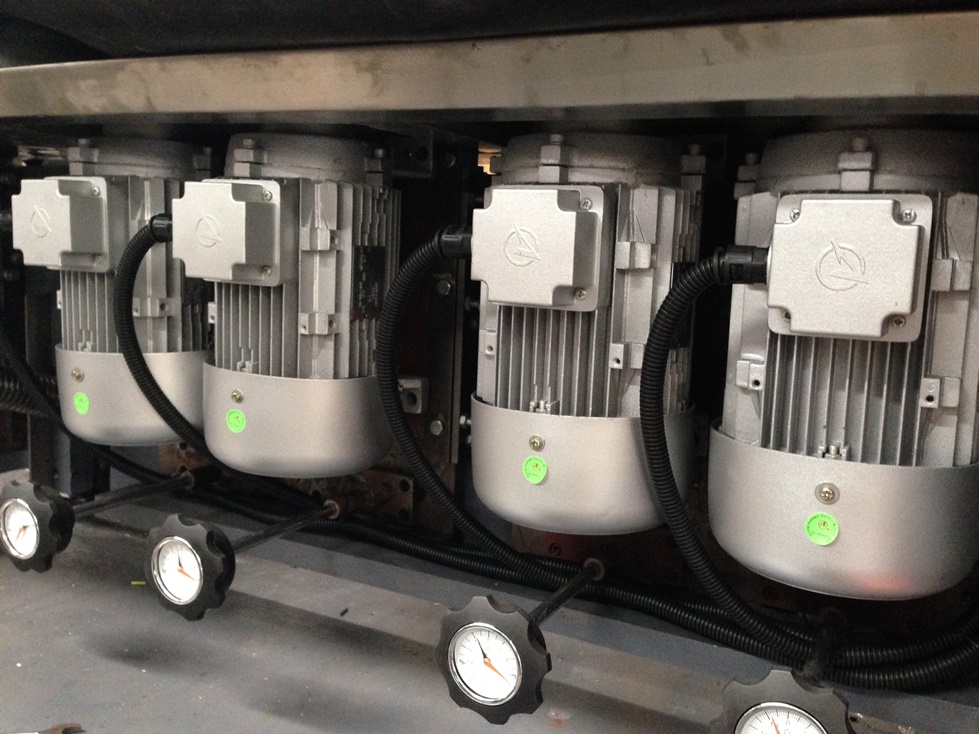

4. High-Efficiency Spindle Array
- 9 synchronized spindles enable simultaneous multi-panel processing
- Independent motor control ensures consistent edge quality

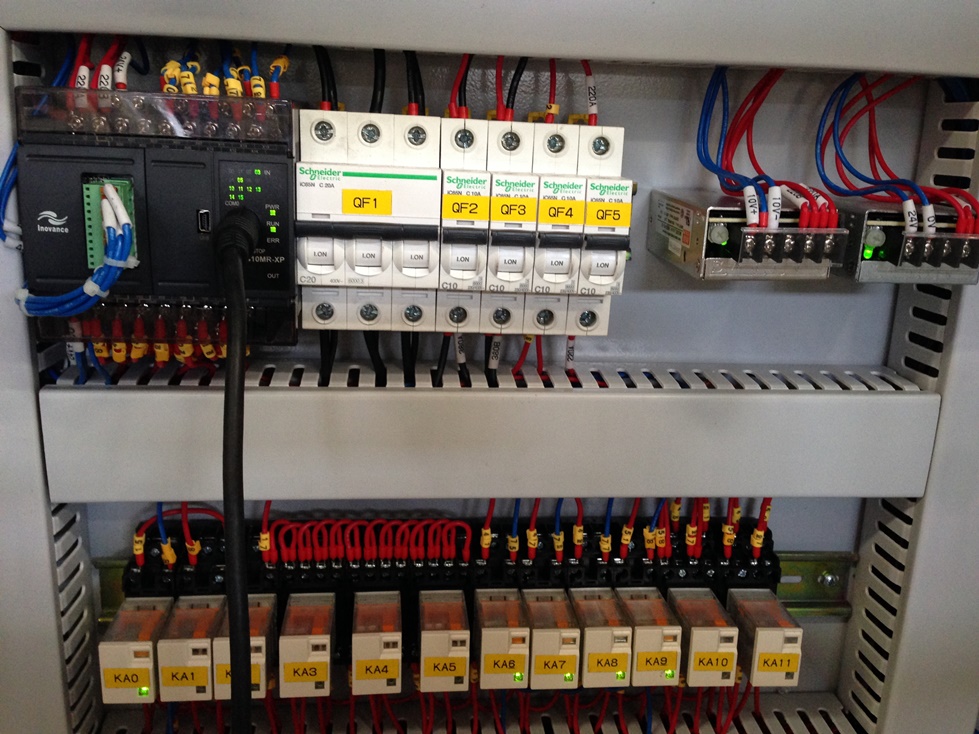

5. Adaptive Control System
- CNC interface stores 15+ edge profile configurations
- Real-time angle adjustment during operation
---
Product Applications
1. Architectural Glazing Systems
- Precision Glass Straight-line Edging with Variable Miteringfor curtain wall joints
- Structural Glass Miterconnections in frameless assemblies
2. Premium Furniture Manufacturing
- Decorative bevels via 45 degree mitering Machinefunction
- Display case edges processed through 45 degree Edging Machine
3. Custom Architectural Features
- Non-standard angle miters using Mitering Machineadaptability
- Artistic glass partitions with variable-angle edges
4. Commercial Interior Elements
- High-precision Glass Miterfor glass stair systems
- 45 degree Edging Machineapplications for retail displays
---
Product Advantages

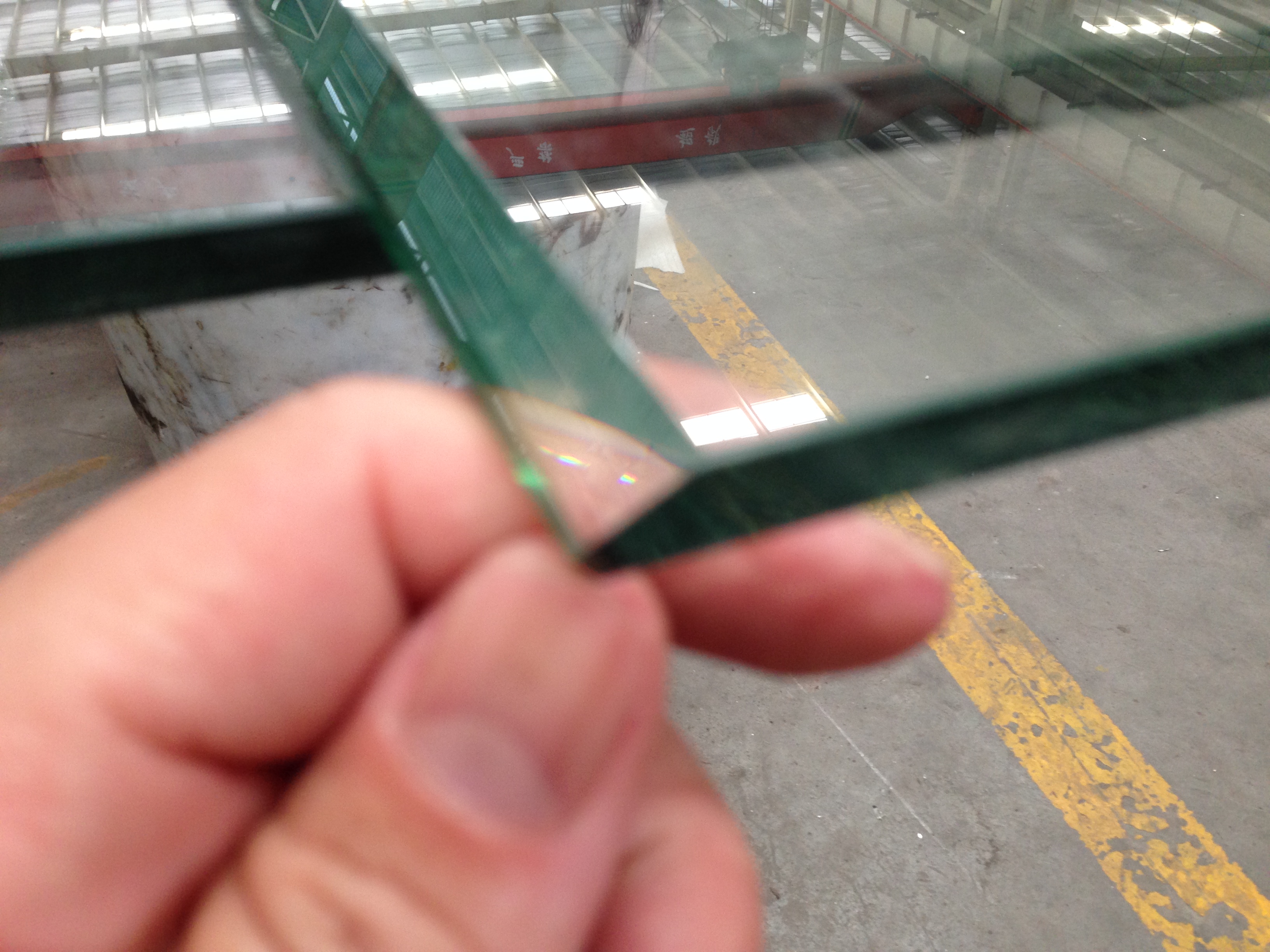

1.Geometric Precision Engineering
- The Glass Straight-line Edging with Variable Miteringsystem maintains ±0.15mm linear accuracy over 3m lengths. Digital protractors ensure Glass Miterangles within 0.1° tolerance - critical for structural integrity.
2.Operational Versatility
- Single-platform functionality as Mitering Machine(custom angles), 45 degree mitering Machine(standard joints), and 45 degree Edging Machine(finishing) eliminates equipment redundancy. Profile changeovers completed in <2 minutes.
3.Production Efficiency
- 9-spindle configuration increases throughput by 40% versus 6-spindle systems. Simultaneous edge processing reduces cycle times by 55% for complex Glass Miterprojects.

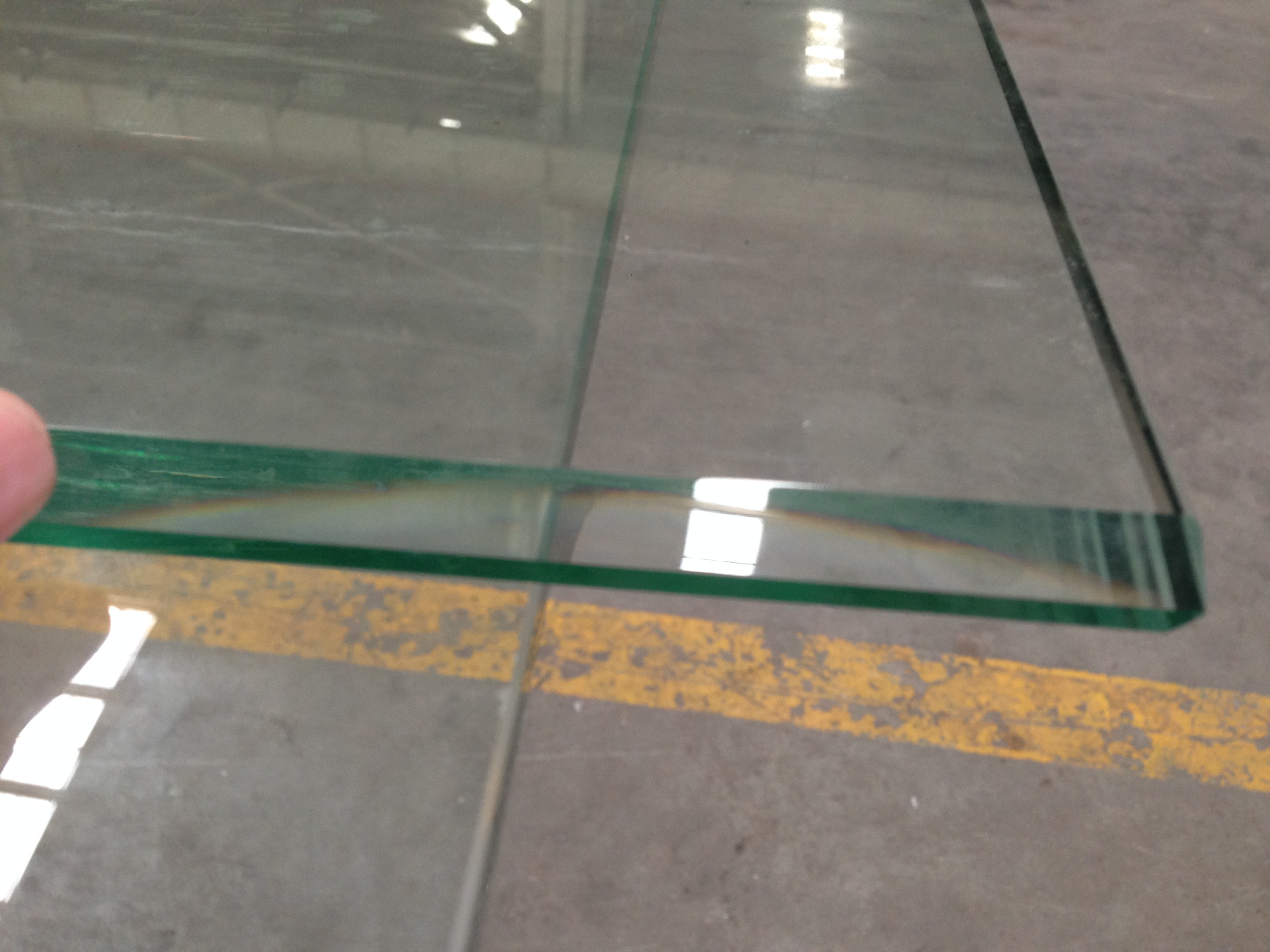

4.Surface Perfection
- As 45 degree Edging Machine, achieves Ra 0.4μm polished finish without secondary processing. Automated pressure control prevents edge overheating during extended runs.
5.Economic Optimization
- Energy-recovery spindles reduce power consumption by 25%. Centralized lubrication system cuts maintenance time by 60% compared to conventional Mitering Machinedesigns.
6.Quality Assurance
- Vibration-dampened bases ensure <5μm surface variation in 45 degree mitering Machinemode. Meets ANSI Z97.1 safety standards through consistent edge compression strength across all angles.
7.Technical Superiority
- Angular repeatability: ±0.05° in Glass Straight-line Edging with Variable Miteringmode
- Straightness tolerance: 0.1mm/m as 45 degree Edging Machine
- Maximum panel thickness: 25mm in Mitering Machineconfiguration
- Surface finish: Ra 0.4μm (polished) / Ra 1.6μm (ground)
Identification data
Machine: Horizontal Miltering Machine
Model: DJM9L
Voltage and Frequency: 380V, 50Hz
Total power: 19.6Kw
Workable thickness: 3~25mm
Weight: 3500kg
Serial no.:
Product date: 2022
Wheel position with respect to the incoming sheet | |||||||||
DJM9 | |||||||||
Ref.no | No9 | No8 | No7 | No6 | No5 | No4 | No3 | No2 | No1 |
Rev.(50Hz) | 2800 | 2800 | 2800 | 2800 | 1400 | 2800 | 2800 | 2800 | 2800 |
Rev.(60Hz) | 3360 | 3360 | 3360 | 3360 | 1680 | 3360 | 3360 | 3360 | 3360 |
Name | Fine grinding wheel | Resin wheel | Fine grinding wheel | Resin wheel | Felt wheel | Fine grinding wheel | Resin wheel | Diamond wheel | Diamond wheel |
Specification | 130×50 10S40 | 130×50 240 mesh | 130×50 10S40 | 130×50 240 mesh | 150 | 10S40 150×70 | 150×50 240 mesh | 150×50 180 mesh | 150×50 100 mesh |
Usage | Fine grinding for back arris | Semi fine grinding for back arris | Fine grinding for front arris | Semi fine grinding for front arris | Bottom polishing | Bottom polishing | Bottom fine grinding | Semi fine grinding for bottom | Bottom rough grinding |
Technical data
DJM9 | |
Length [mm] | 7500 |
Width [mm] | 1900 |
Height [mm] | 2500 |
Work top height [mm] | 900±30 |
Total weight [kg] | 3500 |
Workable thickness [mm] | 3～25 |
Beveling angle | 0°～45° |
Minimum glass size [mm]: | 120x120 |
Maximum working weight: | 300 |
per meter of transport [kg / m] | 100 |
Total [kg] | 300 |
Conveyor speed [m / min] | 1～6 |
Tanks: | 1+1(Optional) |
water [no x l] | 1*165 |
cerium oxide [no x l] (Optional) | 1*75 (Optional) |
Rated voltage [V] | 380V/50Hz(can be optional) |
Installed power [kW] | 19.6 |
